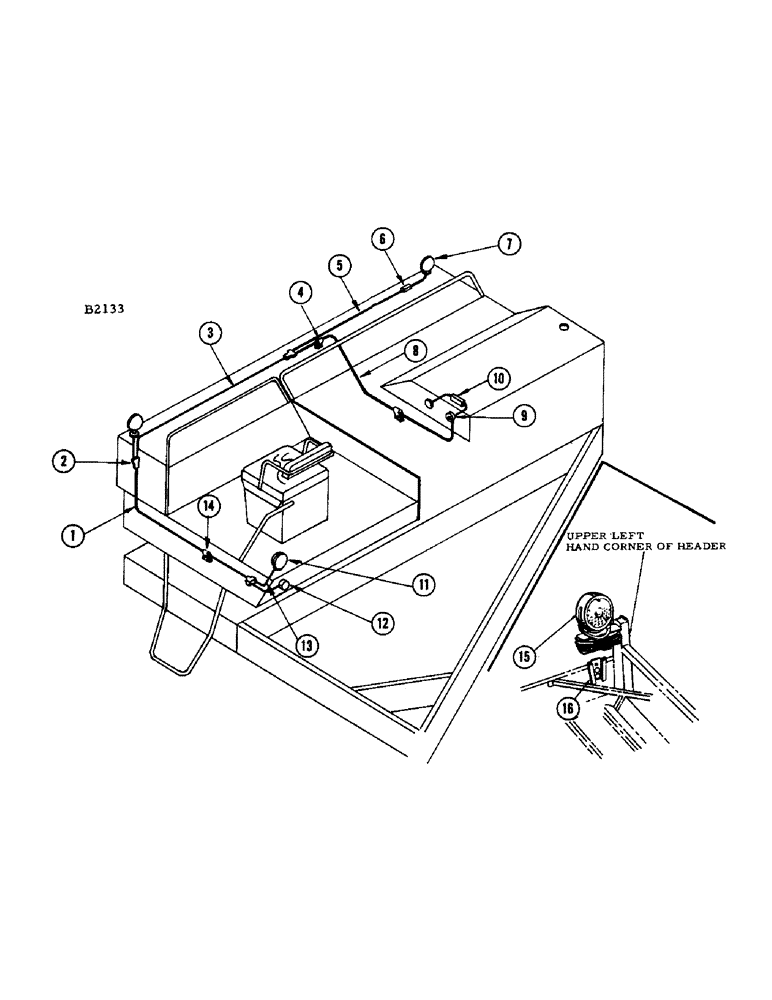

Запчасти Case IH 950 (030) - LIGHTING ATTACHMENT

1

FH720102

WIRE - (70" black) L.H. head lamp to tail lamp wire

1шт.

2

FHO41681

CONNECTOR - (3 way) Wire

3шт.

3

FH720722

WIRE - (55" orange) 3 way connector to L.H. head lamp

1шт.

4

FH237131

CLIP - for ref. 8 wire

1шт.

5

FHO41749

WIRE - (44" green) R.H. head lamp to 3 way connector

1шт.

6

FHO41145

CONNECTOR - (2 way) Wire

2шт.

7

FHO41624

LAMP - head

2шт.

A24572

LAMP

- sealed unit

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Nut and L.W. Hex, 3/8"-16 x 1 1/2", G5

2шт.

8

FH720730

WIRE - (76" yellow) Lamp, Serial Range: wires-switch

1шт.

9

FHO41137

SWITCH

- light

1шт.

10

FH720243

WIRE - (7-1/4") Switch to ammeter (Includes SFE10 fuse)

1шт.

11

FH720292

LAMP - (K-D #859-12) Combination flood and tail

1шт.

12

A8170

SOCKET

- electrical outlet

1шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" rhd. mach., nut and l.w.

2шт.

13

FH720748

WIRE - (16" red) Tail lamp to L.H. head lamp wire

1шт.

14

FHO41152

CLIP - wire

3шт.

15

A11066M

LAMP - warning (Mchy item) Not included in this attachment

1шт.

16

A8179

SOCKET

BRACKET

1шт.

FH315978

MOUNTING

1шт.
