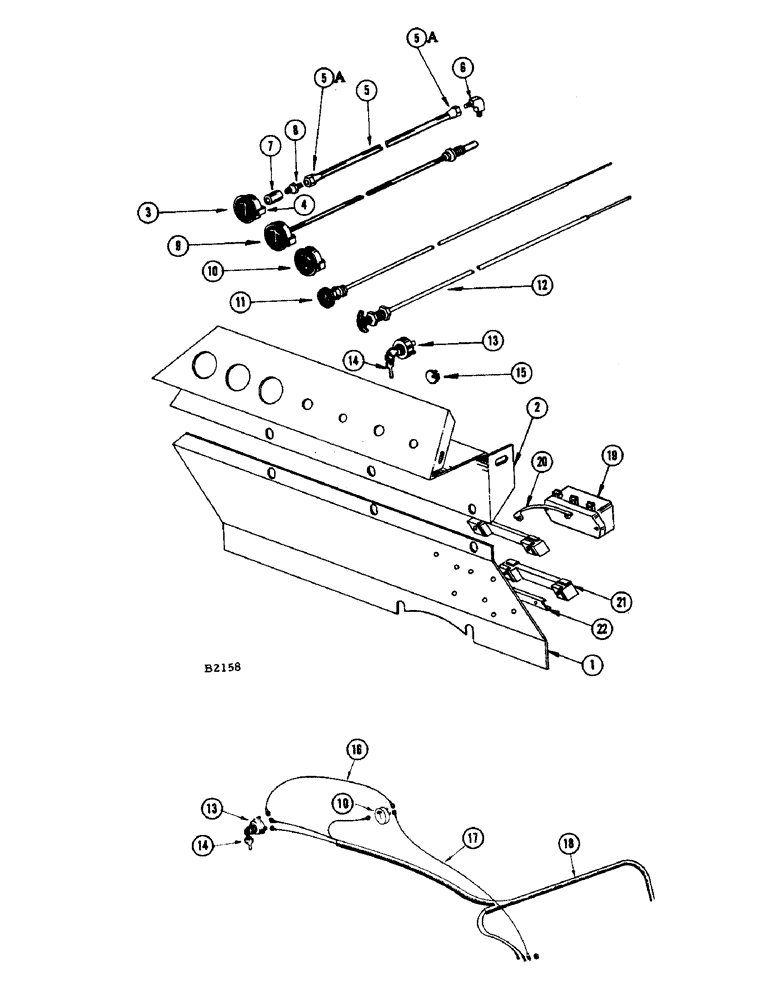

Запчасти Case IH 950 (028) - INSTRUMENT PANEL, A126 ENGINE

1

FH459198

MOUNTING - instrument panel

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-20 x 1/2", G5, Full Thd

3шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

2

FH291526

PANEL - instrument

1шт.

3

A30326

GAUGE

- oil pressure

1шт.

4

G46227

CLAMP - oil pressure gauge

1шт.

225-14112

NUT,#12-24

- #12 hex. mach. screw

2шт.

5

FH379800

TUBE - oil gauge

1шт.

5a

FH746404

CONNECTOR - oil gauge tube

2шт.

6

FH746388

FITTING - elbow

1шт.

7

221-326

COUPLING,Pipe, 1/8" NPT

- 1/8" NPTF

1шт.

8

222-810

HYD CONNECTOR,5/8"-18, 45 Degree Fl x 3/8" NPT

UNION - 3/8" SAE x 3/8" PTF flared half

1шт.

9

11284

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

10

R18748

AMMETER

1шт.

11

FH720599

CONTROL

- throttle

1шт.

12

FH720581

CONTROL - choke

1шт.

13

A24511

SWITCH

- ignition, w/key (Gas)

1шт.

14

A24509

KEY

- ignition

1шт.

15

FH720235

BUTTON - snap in (Light switch opening)

1шт.

16

FH720615

WIRE - ignition, Serial Range: switch-ammeter

1шт.

17

FH720631

WIRE - ammeter to voltage regulator

1шт.

18

FH720607

HARNESS - wire

1шт.

RED WIRE -, Serial Range: ammeter-solenoid

1шт.

GREEN WIRE - ignition switch to coil

1шт.

ORANGE WIRE - ignition switch to solenoid

1шт.

BLACK WIRE - voltage regulator to generator

1шт.

YELLOW WIRE - voltage regulator to genera, Serial Range: -generator

1шт.

19

F84740

REGULATOR - voltage

1шт.

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex.

4шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

20

F18356

WIRE - ground, Serial Range: terminal-bolt

1шт.

21

F18357

MOUNT - rubber

2шт.

22

F18355

CHANNEL - mounting

1шт.
