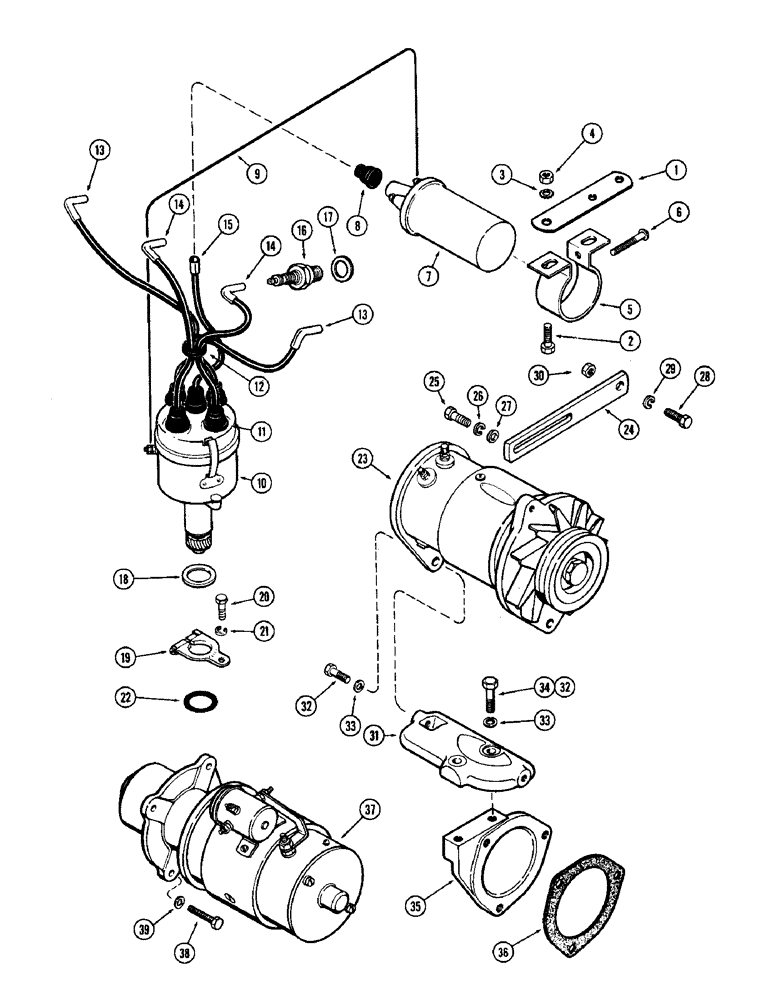

Запчасти Case IH 950 (024) - ENGINE ELECTRICAL ATTACHMENTS

1

G11705

BRACKET

BRACKET - coil mounting

1шт.

2

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

3

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

4

25-115

NUT,5/16"-24, G5

NUT - 5/16" NF hex

2шт.

5

G46106

BRACKET

CLAMP ASSY. - ignition coil

1шт.

6

187-540

SCREW - mach., #10 x 1-1/2" rd. hd. tapping blunt pt.

1шт.

7

A33438

COIL

COIL - ignition

1шт.

8

G46803

BOOT

NIPPLE - coil wire

1шт.

9

G13085

ELECTRICAL WIRE

WIRE WIRE - coil to distributor (Lo-tension) (12" long)

1шт.

10

G11051

DISTRIBUTOR

DISTRIBUTOR ASSY. - ignition (Repairs, P. 27C)

1шт.

11

A29338

COVER

NIPPLE - distributor hi-tension wires

5шт.

12

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING - tie, distributor plug & coil wires

1шт.

13

A29994

CABLE

WIRE - spark plug (#1 & 4 cyl.) (10-1/2" long)

2шт.

14

A30018

CABLE

WIRE - spark plug (#2 & 3 cyl.) (8-1/2" long)

2шт.

15

CASA30038

CABLE

WIRE - distributor to coil hi-tension (11" long)

1шт.

16

G44840

SPARK PLUG

PLUG ASSY. - spark

4шт.

17

G46839

GASKET

GASKET - spark plug

1шт.

18

A30080

THRUST WASHER

WASHER - thrust, distributor

1шт.

19

A29989

ARM

ARM ASSY. - advance, distributor

1шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

22

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - dist. sealing, 1-1/17 x 1-5/16 x 1/8"

1шт.

23

F21239

SPARE PART GENERATOR ASSY. - engine (Repairs, P. 26)

1шт.

24

G11344

SPARE PART STRAP - adjusting, generator

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

27

195-103

WASHER,5/16"

WASHER - plain plated, 3/8" x 7/8" x 3/16"

1шт.

28

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

BOLT - hex. hd., 3/8" x 1-1/4" N.F.

1шт.

29

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

30

25-116

NUT,Hex, 3/8"-24, G5

NUT - hex., 3/8" N.F.

1шт.

31

A38746

BRACKET

BRACKET - generator mounting

1шт.

32

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

33

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

34

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

BOLT - hex. hd., 5/16" x 1-3/8" N.C.

1шт.

35

G2098

SPARE PART ADAPTER - genertor mtg. bracket

1шт.

36

A30042

GASKET

GASKET - adapter mounting

1шт.

37

A36584

STARTING MOTOR

MOTOR ASSY. - starter (Repairs P. 27A)

1шт.

37

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

37

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

38

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

39

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.
