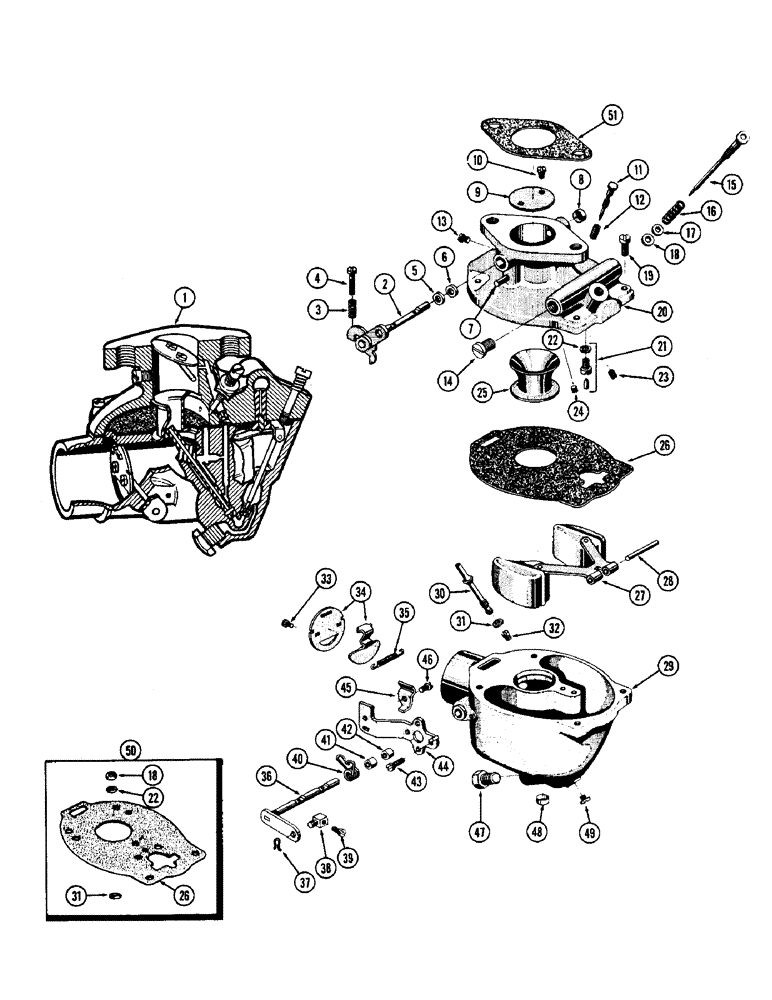

Запчасти Case IH 950 (022) - G45779 CARBURETOR

1

G45779

CARBURETOR ASSY. - fuel (Marvel-Schebler TSX-804) (Replaced by A38241)

1шт.

2

B51655

THROTTLE

SHAFT - throttle

1шт.

3

B51742

SPRING

- throttle stop screw

1шт.

4

B51680

SCREW - throttle stop

1шт.

5

B51853

RETAINER

- packing, throttle shaft

1шт.

6

B51805

PACKING

- throttle shaft

1шт.

7

B51862

PIN - throttle stop

1шт.

8

B51852

CUP

- end, throttle shaft

1шт.

9

B51669

PLATE - throttle

1шт.

10

B51685

SCREW

- throttle plate

2шт.

11

B51788

NEEDLE

- idle adjusting

1шт.

12

B51744

SPRING

SPIRING - idle needle

1шт.

13

B51874

PLUG - screw, idle needle

1шт.

14

221-1041

PLUG

- end, throttle body

1шт.

15

B51797

NEEDLE BEARING CAGE

NEEDLE - high speed adjusting

1шт.

16

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

17

B51870

WASHER

- plain, high speed needle

1шт.

18

B51723

GASKET

- high speed needle

1шт.

19

B51683

SCREW,#12 - 24 x 5/8"

- throttle body mounting

4шт.

20

B59378

BODY - throttle

1шт.

21

A30244

SHUT-OFF VALVE

VALVE ASSY. - float

1шт.

22

B51703

GASKET

- seat, float valve

1шт.

23

B51828

JET

- idle

1шт.

24

B51831

JET - economizer

1шт.

25

B51815

VENTURI - throat

1шт.

26

B51708

GASKET

- throttle, Serial Range: body-bowl

1шт.

27

B51772

FLOAT

ASSY. - carburetor

1шт.

28

B51779

SHAFT

- float lever

1шт.

29

NSS

NOT SOLD SEPARAT

BOWL - carburetor (Order G45779)

1шт.

30

B51826

NOZZLE INJECTION

NOZZLE - main

1шт.

31

B51720

GASKET

- main nozzle

1шт.

32

B51839

JET

- power

1шт.

33

B51685

SCREW

- choke plate

2шт.

34

B51763

VALVE

PLATE ASSY. - choke

1шт.

35

B51735

SPRING

- choke plate

1шт.

36

B51751

SHAFT

- choke

1шт.

37

B51877

SPLIT PIN

PIN - cotter, choke swivel

1шт.

38

B51764

PIVOT

SWIVEL - choke

1шт.

39

B51698

SCREW,0.164" - 32 x 5/16"

- choke swivel

1шт.

40

B51741

SPRING - choke return

1шт.

41

B51854

RETAINER

- packing, choke shaft

1шт.

42

B51803

PACKING

- choke shaft

1шт.

43

B51686

SCREW - choke bracket

1шт.

44

B53956

BRACKET - choke

1шт.

45

B51765

CLIP

- choke bracket

1шт.

46

B51687

SCREW - clip mounting

1шт.

47

B51887

PLUG

- drain, bowl

1шт.

48

B51883

STRAINER - fuel

1шт.

49

B51700

SCREW

- lower nozzle plug

1шт.

50

A30241

GASKET KIT

- carburetor

1шт.

51

A29956

GASKET

- carburetor mounting

1шт.
