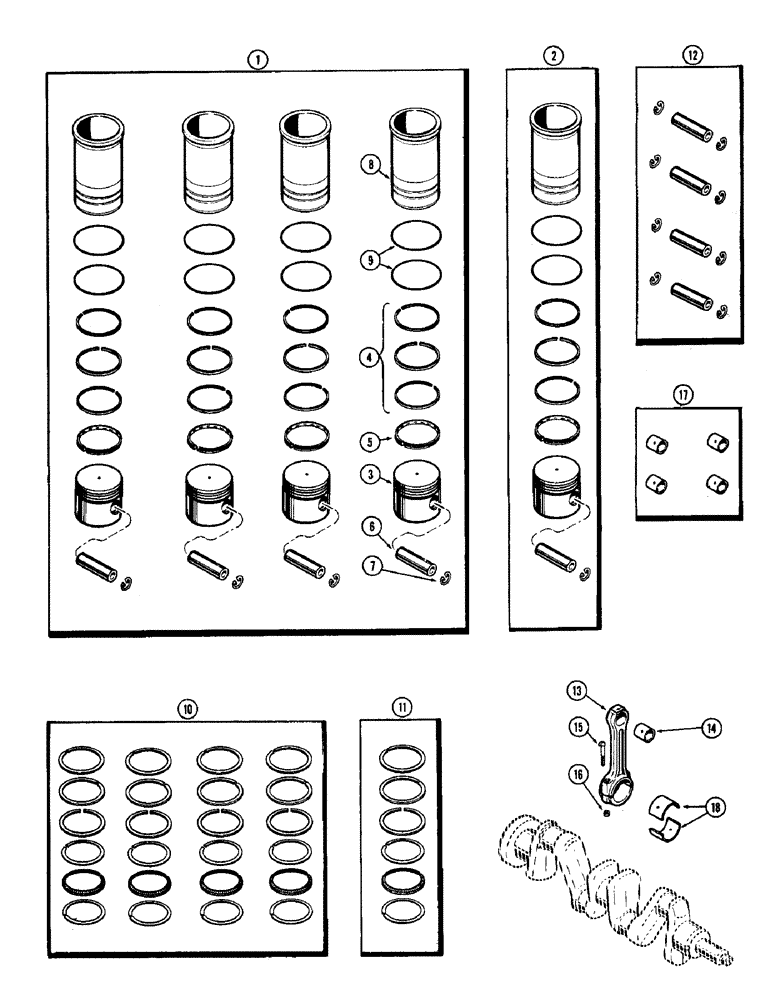

Запчасти Case IH 950 (018) - PISTONS - SLEEVES AND CONNECTING RODS

1

A40803

SPARE PART

PISTON & SLEEVE KIT - cylinder (Set of 4)

1шт.

2

A40802

X

PISTON & SLEEVE KIT (Single set)

4шт.

3

G1019

PISTON

- cylinder

1шт.

4

G1005

RING

- compression, piston (See ref. 10)

12шт.

5

G1006

RING

- oil control, piston (See ref. 10)

4шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston wrist (Order G11924 ref. 12)

4шт.

7

A29289

RING - piston pin retaining

8шт.

8

A37074

SLEEVE - cylinder piston

4шт.

9

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - cyl. sleeve packing

8шт.

10

G10429

PACKAGE, RINGS

RING KIT - piston (Re-ring 4 pistons)

1шт.

11

A40805

RING KIT - piston (Re-ring single piston)

4шт.

12

G11924

KIT

PIN KIT - piston (Set of 4 pins & 8 ret. rings)

1шт.

13

G11592

EXCHANGE CONROD

ROD ASSY. - connecting

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Order G11955)

1шт.

15

G11701

BOLT

- cap, connecting rod

2шт.

16

G49060

NUT

- connecting rod bolt

2шт.

17

G11955

KIT

BUSHING KIT - connecting rod (Set of 4)

1шт.

18

A36500

SEAL

LINER KIT - bearing, conn. rod (Std.)

4шт.

18

A36501

BEARING LINER

LINER KIT - bearing, conn. rod (-002")

4шт.

18

A36502

LINING

LINER KIT - bearing, conn. rod (-.010")

4шт.

18

A36503

BEARING LINER

LINER KIT - bearing, conn. rod (-.020")

4шт.

18

A36504

KIT

LINER KIT - bearing, conn. rod (-.030")

4шт.
