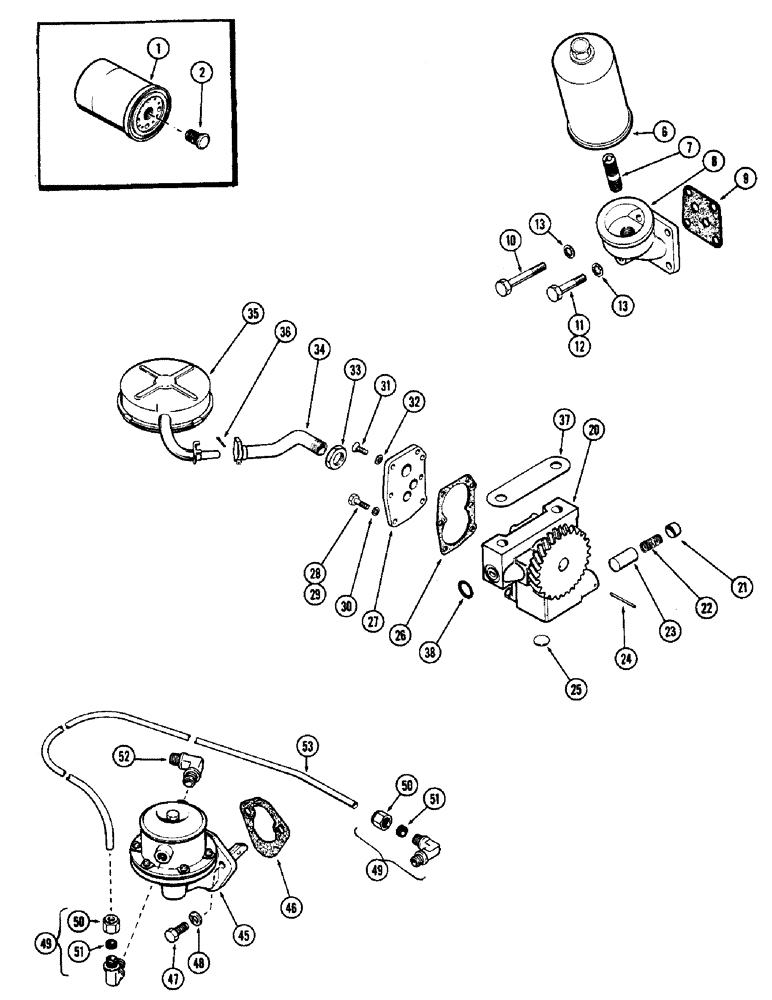

Запчасти Case IH 950 (016) - OIL FILTER, FLANGE MOUNTED, BRACKET MOUNTED, OIL PUMP

1

G45210

FILTER, ELEMENT

ELEMENT ASSY. - filter, engine oil

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-bracket

1шт.

6

G45210

FILTER, ELEMENT

ELEMENT ASSY. - filter, engine oil BRACKET MOUNTED

1шт.

7

G49074

ADAPTER - filter to bracket BRACKET MOUNTED

1шт.

8

G2122

BRACKET - filter mounting BRACKET MOUNTED

1шт.

9

G46854

GASKET

- bracket mounting BRACKET MOUNTED

1шт.

10

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Bracket mounted Hex, 5/16"-18 x 2 1/4", G5

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bracket mounted Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket mounted Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

13

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Bracket mounted Int Tooth, 5/16"

4шт.

20

G11844

PUMP, ENGINE OIL

PUMP ASSY. - engine oil (Replaced by A38369) OIL PUMP

1шт.

21

A29260

RETAINER

- relief valve spring OIL PUMP

1шт.

22

G48513

VALVE SPRING

SPRING - relief valve OIL PUMP

1шт.

23

A155144

VALVE, PRESSURE RELI

- relief OIL PUMP

1шт.

24

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Oil pump 1/8" x 3/8", Slotted

1шт.

25

41-102

PLUG,Exp, 1/2"

- pump body OIL PUMP

2шт.

26

G46852

GASKET

- pump cover OIL PUMP

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - pump body OIL PUMP

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Oil Pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

29

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

31

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" flat hd. OIL PUMP

2шт.

32

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

33

223-207

LOCK NUT

NUT - hex. lock, 3/8" conduit OIL PUMP

1шт.

34

G45766

PIPE, EXHAUST SYSTEM

TUBE - suction, oil OIL PUMP

1шт.

35

A30126

FLOAT ASSY. - oil, w/screen (Repl. by 1-A39035 & 1-A39036) OIL PUMP

1шт.

36

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

37

G11337

SHIM,.002" Thk

Pump mounting, Oil pump .002" Thk

1шт.

37

G11338

SHIM,.005" Thk

Pump mounting, Oil Pump .005" Thk

1шт.

38

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port sealing OIL PUMP

1шт.

45

G45778

PUMP

ASSY. - fuel FUEL PUMP

1шт.

46

G46902

GASKET

- pump mounting FUEL PUMP

1шт.

47

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Fuel pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

48

92-5

LOCK WASHER,5/16"

fuel pump 5/16"

2шт.

49

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - 5/16" tube x 1/8" P.T. x 90 degrees FUEL PUMP

2шт.

50

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - elbow, 5/16" tube FUEL PUMP

1шт.

51

222-653

SLEEVE,5/16" Tube, Comp

- elbow, 5/16" tube FUEL PUMP

1шт.

52

222-4044

ELBOW

- 5/16" tube x 1/8" P.T. x 90 degrees FUEL PUMP

1шт.

53

G46289

LINE

- fuel pump to carburetor FUEL PUMP

1шт.
