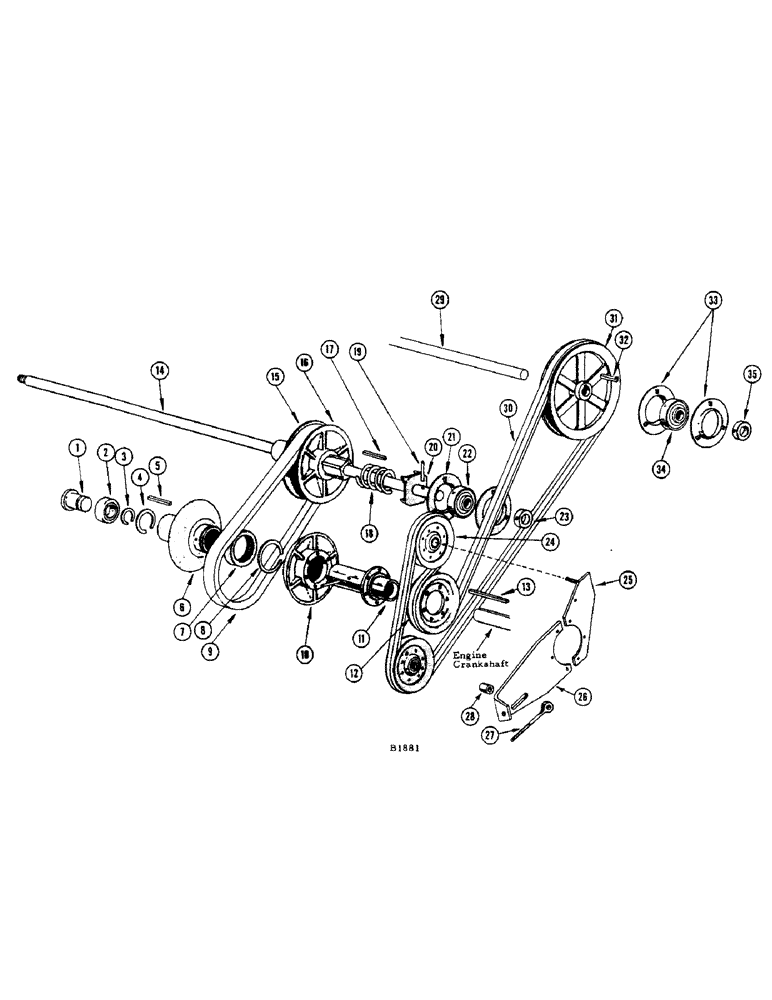

Запчасти Case IH 950 (12) - VARIABLE DRIVE CONTROL, 950 WINDROWER, FORWARD AND REVERSE

1

FHO45138

SPINDLE - variable drive

1шт.

2

O3163CS

X

BEARING - (N.D. #99506) Spindle

1шт.

3

FHO52019

SNAP RING

1шт.

4

FHO52035

RING, SNAP

SNAP RING

1шт.

5

FH129601

KEY - (VH4D engine) See FH144345

1шт.

FH144345

KEY

- (VG4D engine)

1шт.

6

F2448

SHEAVE - floating half

1шт.

7

FHO50229

BEARING, ROLLER

BEARING - (Torrington #B4416)

1шт.

8

FHO52027

RING, SNAP

SNAP RING

1шт.

9

FHO55970

V-BELT

Variable Drive, 950 Windrower, See FHO56846

1шт.

10

F2447

SHEAVE - stationary half

1шт.

11

FH128462

HUB - (VH4D engine) See FH144238

1шт.

ROLL PIN - 3/16" x 2-1/4" (138-105)

1шт.

FH144238

HUB - (VG4D engine)

1шт.

ROLL PIN - 1/4" x 2" (138-142)

1шт.

12

F2451

PULLEY - reverse drive

1шт.

13

FH157131

KEY - (VG4D engine) See W9286S

1шт.

W9286S

KEY - (VH4D engine)

1шт.

14

FH135111

SHAFT - forward drive

1шт.

15

F2449

SHEAVE - stationary half

1шт.

ROLL PIN - 1/4" x 2-1/4" (138-143)

1шт.

16

F2450

SHEAVE - floating half

1шт.

ROLL PIN - 1/4" x 2-1/4" (138-143)

1шт.

17

FH156695

KEY

1шт.

18

FHO58453

SPRING

1шт.

19

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

2шт.

20

FH129460

PLATE

- spring retainer

1шт.

21

O650CB

X

FLANGE

2шт.

22

F51085

BEARING

- (Fafnir #1103KRRB-3)

1шт.

23

O679CB

COLLAR

1шт.

24

FHO53538

PULLEY

- reverse idler (1 for VH4D engine and 2 for VG4D engine)

3шт.

25

FH268805

BRACKET - front (VG4D engine)

1шт.

26

FH144527

BRACKET - rear

1шт.

27

FH113985

DRAWBOLT

1шт.

28

FH159624

SPACER - (1 for VH4D engine and 2 for VG4D engine)

3шт.

29

FH270728

SHAFT - reverse

1шт.

30

FHO56333

BELT

Reverse Drive, VH4D engine

1шт.

FHO57083

BELT

Reverse Drive, VG4D Engine, See FHO56333 and FH262600

1шт.

31

FH236653

PULLEY - reverse drive

1шт.

32

FHO61739

KEY

- gib

1шт.

33

O650CB

X

FLANGE

4шт.

34

F51085

BEARING

- (Fafnir #1103KRRB-3)

2шт.

35

O697CB

X

COLLAR

1шт.
