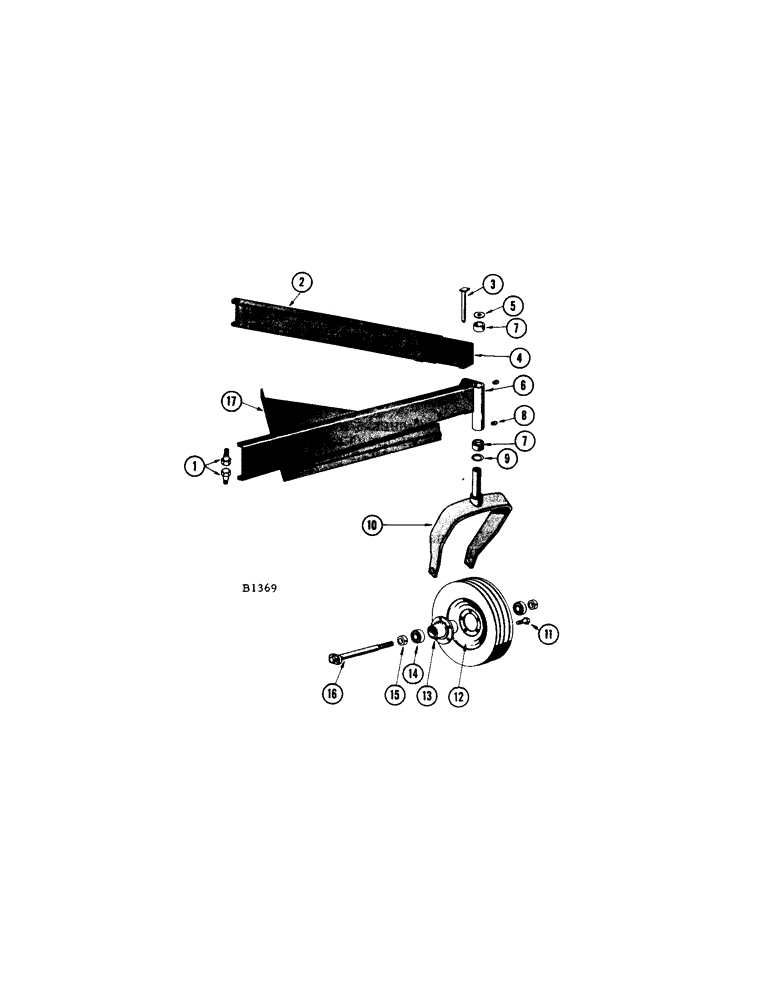

Запчасти Case IH 950 (06) - REAR WHEEL AND WEIGHT BOX

1

FHO66217

BOLT - tapered

4шт.

NUT - 7/8" N.C. (25-1014) L.W. (92-14)

4шт.

2

FH144584

CHANNEL - right front

1шт.

BOLT - 5/8" x 1-1/2" N.C. hex. (13-1024) Nut (25-1010) and L.W. (92-10)

2шт.

WASHER - 5/8" pl. (195-41)

2шт.

3

FH117275

PIN - swivel

1шт.

4

FH135608

CHANNEL - right rear

1шт.

5

FH134668

CAP

1шт.

6

FH315523

BEAM - left (Replaces FH267765 when stocks are exhausted)

1шт.

7

FH312462

BUSHING

2шт.

FH267765

BEAM - left (Replaced by FH315523 when stocks are exhausted)

1шт.

FH288993

BUSHING - upper (Replaces FH135913 when stocks are exhausted)

1шт.

FH135913

BUSHING - upper (Replaced by FH288993 when stocks are exhausted)

1шт.

FH135921

BUSHING - lower

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease (1/4" str.)

2шт.

9

FH134676

SHIM - wear

1шт.

10

FH220129

FORK - rear wheel

1шт.

BOLT - 5/8" x 1-1/2" N.C. hex. (13-1024) L.W. (92-10)

1шт.

11

O4236AB

X

BOLT - wheel

5шт.

12

FHO26047

WHEEL - rear (For 7:60 x 15 implement tire)

1шт.

13

F2428

HUB - rear wheel

1шт.

14

3074CSA

BALL BEARING

- (Fafnir #RA100NPPB)

2шт.

15

O3785CS

X

COLLAR

1шт.

16

FH220103

AXLE

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

1шт.

NUT - 1" N.F. jam (129-370)

2шт.

17

FH268433

BOX - weight

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (113-206) Nut (25-106) and L.W. (92-6)

4шт.

WASHER - 3/8" pl. (195-25)

4шт.
