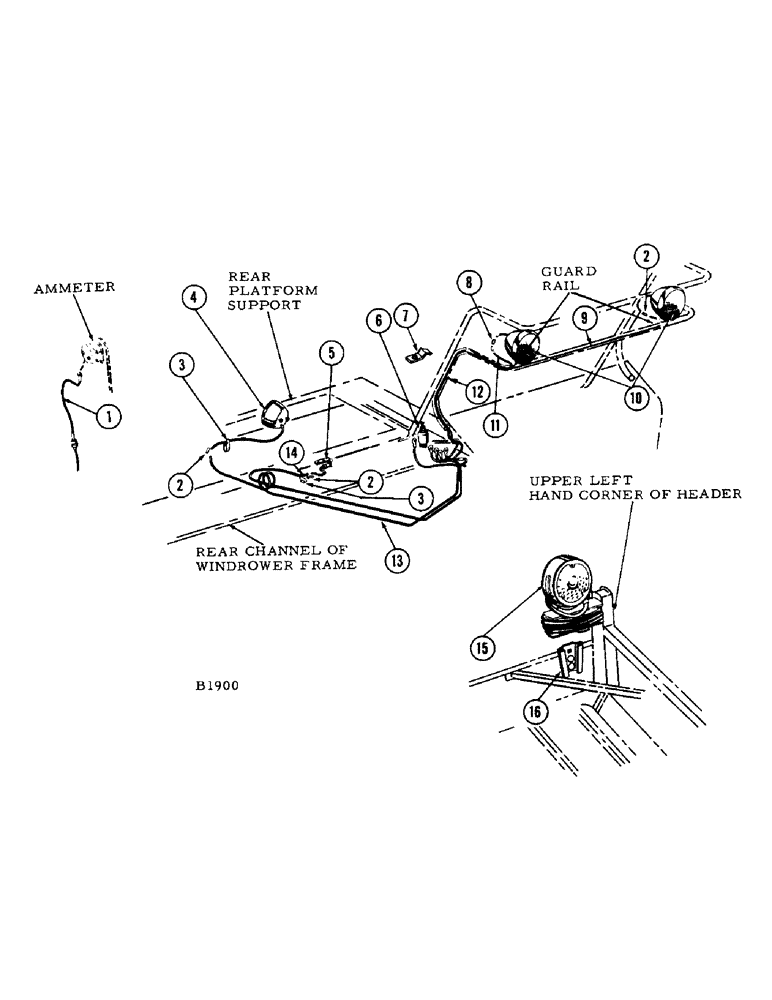

Запчасти Case IH 950 (70) - LIGHTING ATTACHMENT

1

FH720243

WIRE - ammeter to light switch

1шт.

2

FHO41145

CONNECTOR - wire

3шт.

3

FHO41152

CLIP - wire

4шт.

4

FHO41632

LAMP - tail (Peterson Mfg. Co. #427-T12) Replaced by FH720292 when stocks are exhausted

1шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (113-209) Nut (129-103) and L.W. (192-21)

1шт.

FH720292

LAMP - tail (K-D Lamp Co. #KD859-12) Replaces FHO41632 when stocks are exhausted

1шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (113-209) Nut (129-103) and L.W. (192-21)

1шт.

5

A8170

SOCKET

1шт.

SCREW - #10-24 rhd. (173-212) Nut (129-17) L.W. (192-18)

2шт.

6

FHO41137

SWITCH

- (Aetna #101A)

1шт.

7

FH237131

CLIP - wire

1шт.

8

FHO41681

CONNECTOR - wire

1шт.

9

FH720276

WIRE - head lamp to head lamp

1шт.

10

FHO41624

LAMP - tail (Peterson Mfg. Co. #920-C12)

2шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (113-209) Nut (129-103) and L.W. (192-21)

1шт.

11

FH720268

WIRE - switch to R.H. head lamp

1шт.

12

FH237149

LOOM

1шт.

13

FH720250

WIRE - switch to tail lamp (Replaced by FH720524 when stocks are exhausted)

1шт.

FH720524

WIRE - switch to tail lamp (Repalces FH720250 when stocks are exhausted)

1шт.

14

FHO41673

WIRE -, Serial Range: switch-socket

1шт.

A8171

WIRE - switch to socket (Used in place of FHO41673 wire when warning lamp is used)

1шт.

15

A11066M

LAMP - warning (Includes lamp, (1) 33685 6-volt bulb and (1) 33686 12-volt bulb) Mchy. item

1шт.

16

A8179

SOCKET

BRACKET - warning lamp

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) Nut (129-102) and L.W. (192-20)

2шт.
