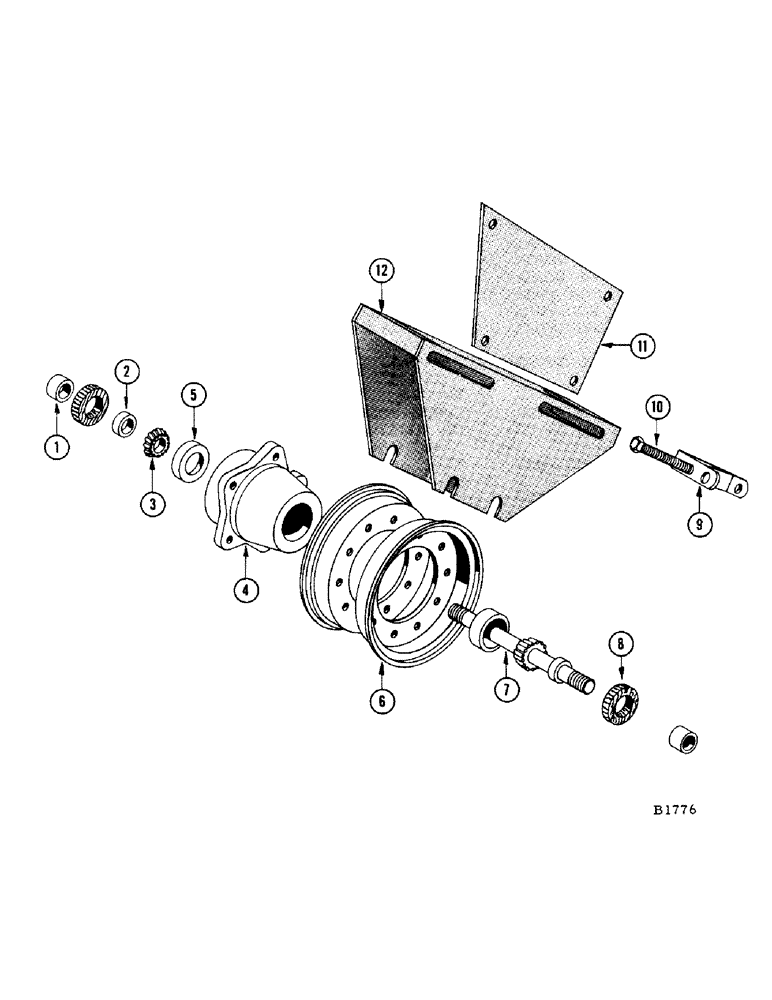

Запчасти Case IH 950 (68) - GAUGE WHEEL, TRANSFERS

1

FH159897

SPACER - axle

4шт.

2

FHO45575

SPACER - hub

4шт.

3

W9651S

CUP ASSY.

CONE - (Timken #15101)

4шт.

4

FHO26245

HUB

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) Nut (131-352)

10шт.

5

W10153S

CUP

- (Timken #151245)

2шт.

6

FHO26237

RIM - for 6 x 4.50 tire

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) Nut (131-352)

10шт.

7

FH238386

AXLE

2шт.

NUT - 1" N.F. jam (129-170)

8шт.

8

FHO44214

SEAL - oil

4шт.

9

FH236984

BRACKET - adjustment

2шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (113-417) Nut (129-105) and L.W. (192-23)

6шт.

BOLT - 1/2" x 1-1/2" N.C. hex. (113-410) Nut (129-105) and L.W. (192-23)

2шт.

WASHER - 1/2" pl. (195-106)

4шт.

10

FHO72801

SCREW - cap

2шт.

11

FH238360

BRACKET - support

2шт.

BOLT - 3/8" x 1" N.C. hex. (113-207) Nut (129-103) and L.W. (192-21)

4шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (113-417) Nut (129-105) and L.W. (192-23)

4шт.

WASHER - 1/2" pl. (196-106)

4шт.

12

FH238345

BRACKET - mounting

2шт.

B18295

SET OF TRANSFERS - for 950 Windrower

1шт.

B18296

SET OF TRANSFERS - for 1050 Windrower

1шт.
