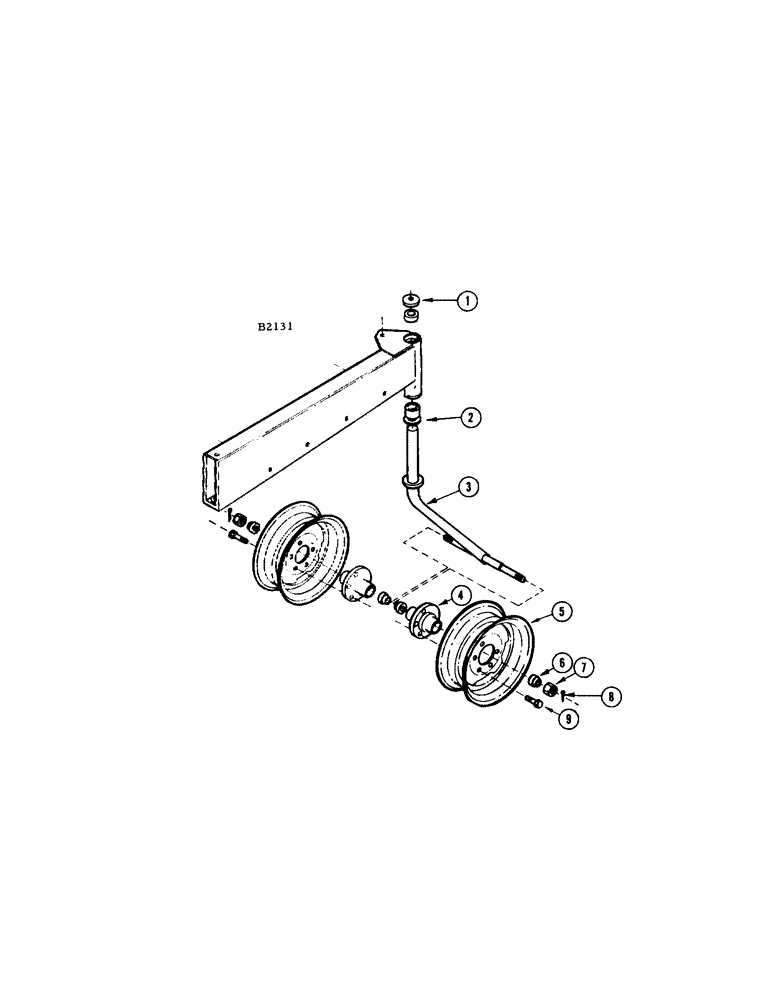

Запчасти Case IH 950 (06[A]) - DUAL REAR WHEELS

1

FH134668

CAP - tail shaft

1шт.

2

FH134676

SHIM - wear

1шт.

3

FH294264

SHAFT - tail, rear wheel

1шт.

BOLT - 5/8" x 1-1/2" N.C. hex. (113-607) L.W. (192-25)

1шт.

4

F2428

HUB - rear wheel

2шт.

5

FHO26047

WHEEL - rear (For 7:60 x 15 tire)

2шт.

6

O4306CH

X

BEARING - (Fafnir #RA100NPPB)

4шт.

7

129-270

NUT

- 1" N.F. slotted

2шт.

8

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

9

O4236AB

X

BOLT - wheel

10шт.
