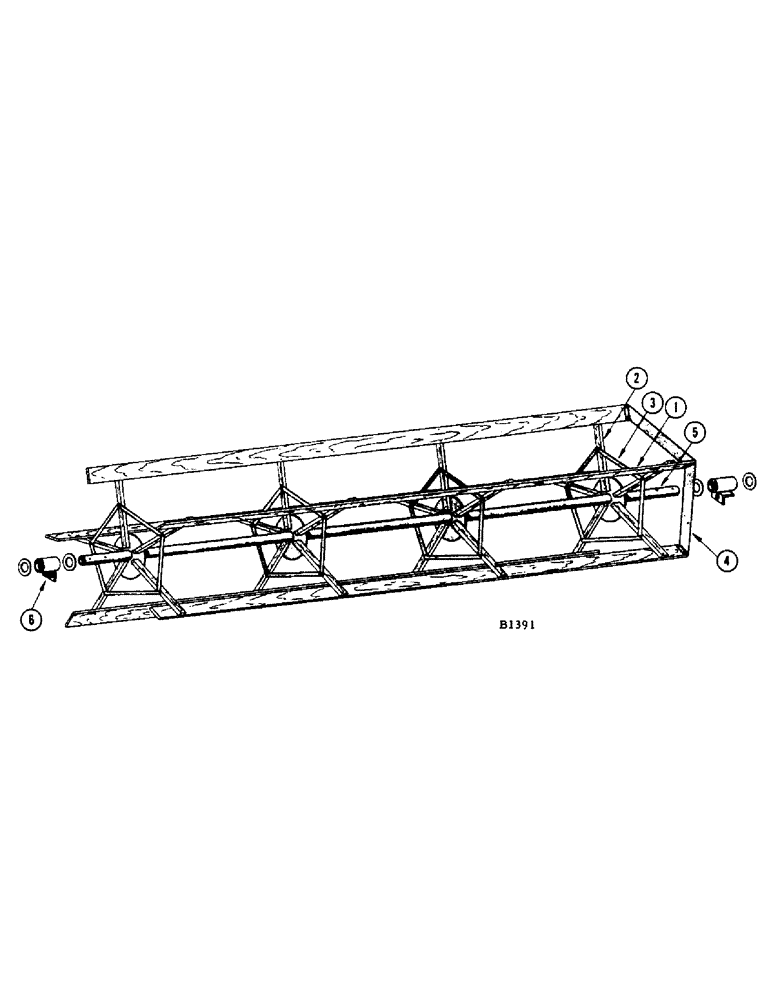

Запчасти Case IH 950 (62) - REEL

1

FH119164

BAT

- reel (10 ft. reel)

5шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (111-114) Nut (129-101)

15шт.

LOCKWASHER - 1/4" (192-19)

30шт.

BOLT - 1/4" x 2-1/4" rhd. sq. nk. (11-436) Nut (129-101)

15шт.

WASHER - 1/4" plain (195-518)

30шт.

FH119172

BAT - reel (12 ft. reel)

5шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (111-114) Nut (129-101)

20шт.

BOLT - 1/4" x 2-1/4" rhd. sq. nk. (11-436) Nut (129-101)

20шт.

WASHER - 1/4" plain (195-518) L.W. (192-19)

40шт.

FH119180

BAT - reel (14 ft. reel)

5шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (111-114) Nut (129-101)

20шт.

BOLT - 1/4" x 2-1/4" rhd. sq. nk. (11-436) Nut (129-101)

20шт.

WASHER - 1/4" plain (195-518) L.W. (192-19)

40шт.

FH117960

BAT - reel (16 ft. reel)

5шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (111-114) Nut (129-101)

25шт.

BOLT - 1/4" x 2-1/4" rhd. sq. nk. (11-436) Nut (129-101)

25шт.

WASHER - 1/4" plain (195-518) L.W. (192-19)

50шт.

FH760280

BAT - reel (20 ft. reel)

5шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (111-114) Nut (129-101)

30шт.

BOLT - 1/4" x 2-1/4" rhd. sq. nk. (11-436) Nut (129-101)

30шт.

WASHER - 1/4" plain (195-518) L.W. (192-19)

60шт.

2

FHO29231

ARM - reel bat (10 ft.-15, 12 ft.-20, 14 ft.-20, 16 ft.-25)

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (111-109) Nut (129-101) and L.W. (192-19)

1шт.

FH760272

ARM - reel bat (20 ft. reel)

30шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (111-109) Nut (129-101) and L.W. (192-19)

60шт.

3

FH108209

STRAP - reel brace (10 ft.-15, 12 ft.-20, 14 ft.-20, 16 ft.-25 and 20 ft.-30)

1шт.

BOLT - 1/4" x 2-1/2" rhd. sq. nk. (111-121) Nut (129-101) and L.W. (192-19)

1шт.

4

FH128686

SHIELD - R.H., reel end (Special)

5шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (111-109) Nut (129-101)

10шт.

WASHER - 1/4" plain (195-102) L.W. (192-19)

10шт.

FH128678

SHIELD - L.H., reel end (Special)

5шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (111-109) Nut (129-101)

10шт.

WASHER - 1/4" plain (195-102) L.W. (192-19)

10шт.

5

FH240465

SHAFT - reel (10 ft. reel)

1шт.

PIN - cotter 1/4" x 2" (132-154)

4шт.

FH240473

SHAFT - reel (12 ft. reel)

1шт.

PIN - cotter 1/4" x 2" (132-154)

4шт.

FH240481

SHAFT - reel (14 ft. reel)

1шт.

PIN - cotter 1/4" x 2" (132-154)

4шт.

FH240499

SHAFT - reel (16 ft. reel)

1шт.

PIN - cotter 1/4" x 2" (132-154)

4шт.

FH299867

SHAFT - reel (29 ft. reel)

1шт.

PIN - cotter 1/4" x 2" (132-154)

5шт.

6

FH117721

BEARING - reel shaft

2шт.

FITTING - grease 1/4" str. (219-6)

2шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (113-417) Nut (129-105) L.W. (192-23) and pl. wshr. (195-533)

2шт.
