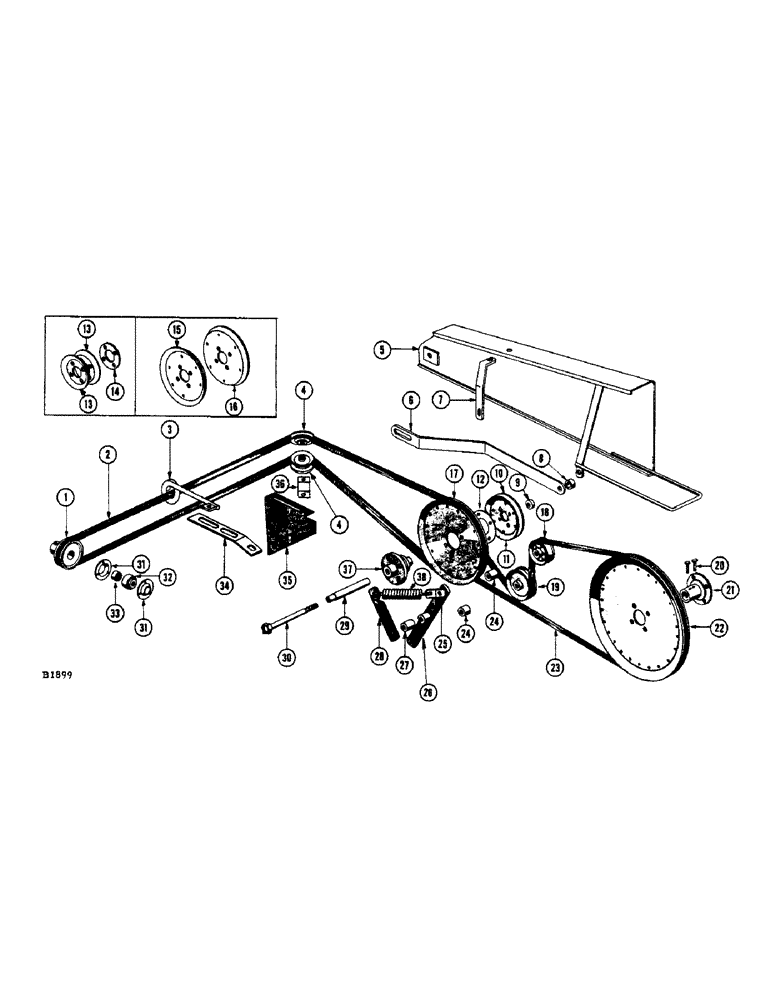

Запчасти Case IH 950 (58) - REEL AND REEL JACKSHAFT DRIVE

1

FH268540

SHEAVE - reel drive

1шт.

SCREW - cap, 5/16" x 1-3/4" N.C. hex. socket (61-528) and L.W. (92-5)

1шт.

2

FHO55319

BELT

- reel jackshaft drive (10 ft. reel) Replaces FHO56085 when stocks are exhausted

1шт.

FHO56085

BELT - reel jackshaft drive (10 ft. reel) Replaced by FHO55319 when stocks are exhausted

1шт.

FHO57307

BELT - reel jackshaft drive (12 ft. reel) Replaces FHO56705 when stocks are exhausted

1шт.

FHO56705

BELT - reel jackshaft drive (12 ft. reel) Replaced by FHO57307 when stocks are exhausted

1шт.

FHO55442

BELT

Reel Jackshaft Drive, 14 Foot Reel

1шт.

FHO57315

BELT - reel jackshaft drive (16 ft. reel)

1шт.

FHO57414

BELT - reel jackshaft drive (20 ft. reel)

1шт.

3

FH227553

GUIDE - reel jackshaft drive belt

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) and L.W. (92-6)

1шт.

4

FHO53512

X

PULLEY - idler

2шт.

BOLT - 1/2" x 1-1/2" N.C. hex. (113-410) Nut (25-105) and L.W. (192-23)

1шт.

BOLT - 1/2" x 2" N.C. hex. (113-421) Nut (25-105) and L.W. (192-23)

1шт.

WASHER - 1/2" plain (195-533)

2шт.

5

FH269423

SHIELD - reel drive belt

1шт.

BOLT - 1/4" x 1-1/4" N.C. hex. (113-417) Nut (129-105) and L.W. (192-23)

1шт.

6

FH220772

BRACKET - support

1шт.

BOLT - 1/2" x 2-1/4" N.C. hex. (13-836) Nut (129-105) and L.W. (192-23)

1шт.

7

FH220764

BRACKET - center

1шт.

BOLT - 5/16" x 1" N.C. hex. (113-103) Nut (129-102) and L.W. (192-20)

2шт.

8

H2755S

SPACER - bracket

1шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (113-104) Nut (129-102) and L.W. (192-20)

1шт.

9

O684CK

SPACER - half sheave

1шт.

10

FH220632

HALF SHEAVE - adjustable jackshaft spindle (Medium)

1шт.

11

FH220640

HALF SHEAVE - adjustable jackshaft spindle (Medium)

1шт.

12

FH241208

SHIM

- half sheave (FH220632 and FH220640 only)

4шт.

BOLT - 3/8" x 1" N.C. hex. (113-207) L.W. (192-21)

4шт.

13

FH220814

HALF SHEAVE - adjustable jackshaft spindle (Slow)

2шт.

14

FH241190

SHIM - sheave

4шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (13-504) L.W. (92-5)

4шт.

15

FH220798

HALF SHEAVE - adjustable jackshaft spindle (Fast)

1шт.

16

FH220806

HALF SHEAVE - adjustable jackshaft spindle (Fast)

1шт.

17

FH234781

SHEAVE - jackshaft spindle drive

1шт.

18

FHO53553

PULLEY

- idler

1шт.

BOLT - 1/2" x 2-1/2" N.C. hex. (13-840) Nut (25-108) and L.W. (92-8)

1шт.

19

FHO53561

PULLEY - tightener

1шт.

BOLT - 1/2" x 2-1/2" N.C. hex. (13-840) Nut (25-108) and L.W. (92-8)

1шт.

20

61-640

HEX SOC SCREW,3/8"-16 x 2 1/2"

SCREW - N.C. hex. socket cap 3/8" x 2-1/2"

2шт.

NUT - 3/8" N.C. (129-103) L.W. (192-21)

2шт.

21

FH220780

HUB - reel sheave

1шт.
