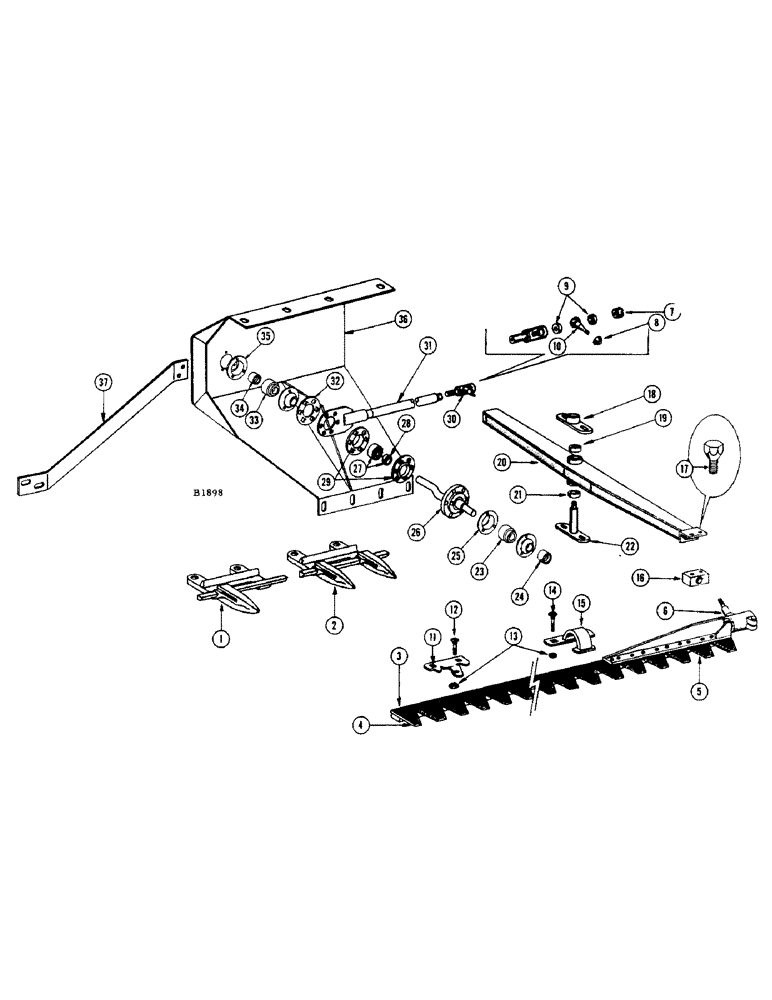

Запчасти Case IH 950 (56) - SICKLE AND SICKLE DRIVE (CONTD)

22

FH123216

PIN

- sway bar

1шт.

BOLT - 1/2" x 1-1/4" (14-820) Nut (25-118) L.W. (92-8)

4шт.

NUT - 7/8" N.F. slotted (25-1314)

1шт.

PIN - cotter 5/32" x 1-1/2" (132-73)

1шт.

WASHER - 1/2" plain (195-33)

4шт.

FHO52258

BUSHING - ref. 23, pin (Not shown)

2шт.

23

K3315

BEARING ASSY

BEARING - (Fafnir #RA104NPPB)

1шт.

24

O885CB

COLLAR

1шт.

25

FHO51193

X

FLANGE

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106) L.W. (92-6)

3шт.

26

FH266205

CRANK - Pitman

1шт.

BOLT - 3/8" x 1" N.C. (13-616) L.W. (92-6)

6шт.

27

FH710038

BEARING

- (Fafnir #RA107NPPB)

1шт.

28

TD4510

COLLAR

1шт.

29

FH264036

FLANGE

2шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) L.W. (92-6)

6шт.

30

FH263665

HEAD - Pitman (Includes 1-ref. 7, 1-ref. 8, 2-ref. 9 and 1-ref. 10)

1шт.

31

FH269340

PITMAN - sickle (10 ft. header)

1шт.

FH269357

PITMAN - sickle (12 ft. header)

1шт.

FH269365

PITMAN - sickle (14 ft. header)

1шт.

FH269373

PITMAN - sickle (16 ft. header)

1шт.

FH299842

PITMAN - sickle (20 ft. header)

1шт.

32

FH287821

STABILIZER - pitman bearing

1шт.

33

1443CKA

BALL BEARING

BEARING - (Fafnir #RA102PPB)

1шт.

34

O3203CK

COLLAR

1шт.

35

F19270

FLANGE

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106) L.W. (92-6)

3шт.

36

FH266320

BRACKET - Pitman crank drive

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) Nut (25-106)

4шт.

LOCKWASHER - 3/8" (92-6) Fl. wshr. (95-6)

8шт.

37

FH266148

BRACE - Pitman bracket support

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) L.W. (92-6)

2шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) Nut (25-106) and L.W. (92-6)

2шт.

WASHER - 3/8" flat (95-6)

2шт.
