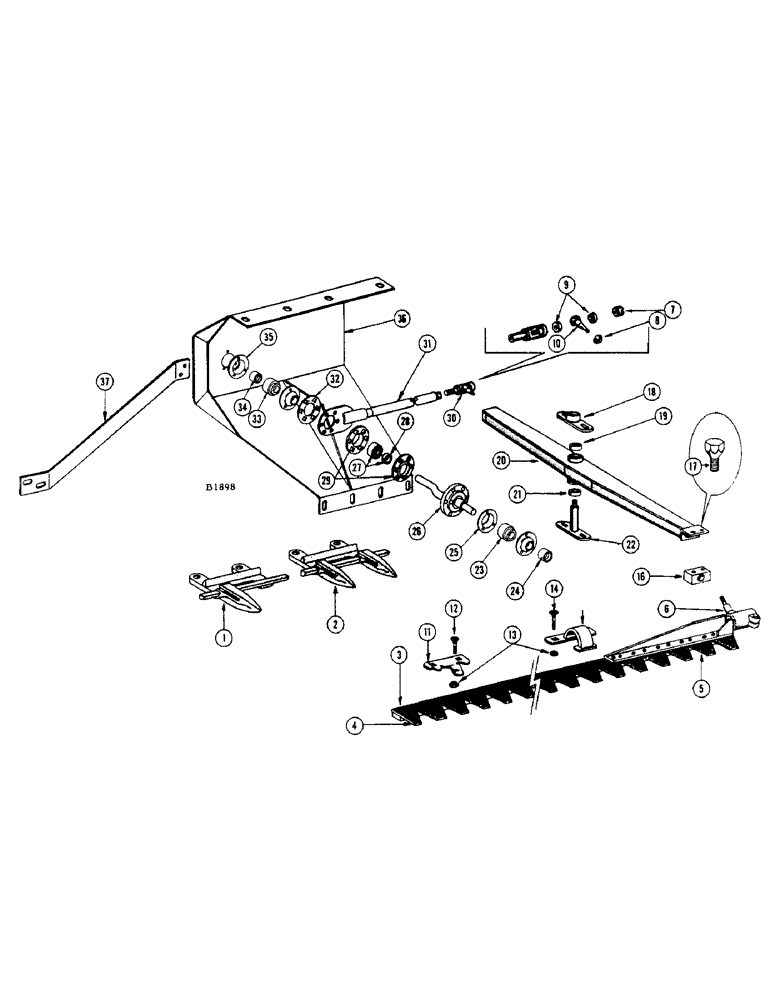

Запчасти Case IH 950 (54) - SICKLE AND SICKLE DRIVE

1

FHO48850

GUARD - half, L.H. end

1шт.

BOLT - 7/16" x 1-1/2" rhd. sq. nk. (111-410) Nut (129-104)

1шт.

2

FHO49239

GUARD

- sickle (Double) Forged (20-10 ft., 24-12 ft., 28-14 ft., 32-16 ft. and 40-20 ft.)

1шт.

BOLT - 7/16" x 1-3/4" rhd. sq. nk. (111-411) Nut (129-104)

1шт.

3

TF94715

SICKLE - 10 ft. header (Standard) See TF94719

1шт.

4

TF59129

CATALOG

SECTION - half, smooth

1шт.

Z1690

RIVET

- #5-1/2 x 9/16" oval hd. (1 lb. pkg.)

2шт.

5

TF59106

SECTION - sickel, top serrated chrome plated

41шт.

Z1690

RIVET

- #5-1/2 x 9/16" oval hd. (1 lb. pkg.)

71шт.

6

TF94714

HEAD - sickle

1шт.

FITTING - grease 1/4" str. (219-8)

1шт.

FITTING - grease 1/4" 90 degrees (219-57)

1шт.

SCREW - cap 3/8" x 1" N.C. hex. socket (61-616)

1шт.

LOCKWASHER - 3/8" (92-6)

1шт.

7

FH264143

PLUG

1шт.

8

FH720300

X

CAP

1шт.

9

FH720458

BEARING

2шт.

10

FH720441

STUD

1шт.

NUT - 5/8" N.F. hex. slotted (25-1310)

1шт.

Z1691

RIVET

- #5-1/2" x 7/8" oval hd. (1 lb. pkg.)

11шт.

TF94716

SICKLE - 12 ft. header (Standard) Includes 1-ref. 4, 49-ref. 5 and 1-ref. 6 (See TF94720)

1шт.

TF94717

SICKLE - 14 ft. header (Standard) Includes 1-ref. 4, 57-ref. 5 and 1-ref. 6 (See TF94721)

1шт.

TF94718

SICKLE - 16 ft. header (Standard) Includes 1-ref. 4, 65-ref. 5 and 1-ref. 6 (See TF94722)

1шт.

TF94791

SICKLE - 20 ft. header (Standard) Includes 1-ref. 4, 81-ref. 5 and 1-ref. 6

1шт.

TF94719

SICKLE - 10 ft. header (Special) Includes 1-ref. 4, 41-ref. 11 and 1-ref. 6

1шт.

T13009

KNIFE SECTION

SECTION - sickle, smooth chrome plated (Special)

41шт.

Z1690

RIVET

- #5-1/2 x 9/16" oval hd. (1 lb. pkg.)

71шт.

TF94720

SICKLE - 12 ft. header (Special) Includes 1-ref. 4, 49-ref 11 and 1-ref. 6

1шт.

TF94721

SICKLE - 14 ft. header (Special) Includes 1-ref. 4, 57-ref. 11 and 1-ref. 6

1шт.

TF94722

SICKLE - 16 ft. header (Special) Includes 1-ref. 4, 65-ref. 11 and 1-ref. 6

1шт.

11

FH241216

CLIP

- sickle hold down (9-10 ft., 11-12 ft., 13-14 ft., 15-16 ft. and 19-20 ft. header)

1шт.

12

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, , Sickle guards (20-10 ft., 24-12 ft., 28-14 ft., 32-16 ft., 40-20 ft. hdrs.) Short NK, 7/16"-14 x 1 1/4", G5

1шт.

13

129-104

NUT,7/16"-14, G5

Sickle guard and hold down clips 7/16"-14, G5

1шт.

14

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - (N.C. rhd. sq. nk. 7/16" x 1-1/2") Hold down clips (20-10 ft., 24-12 ft., 28-14 ft., 32-16 ft. and 40-20 ft. headers)

1шт.

15

FH142984

HOLDER

CLIP - high clearance hold down

1шт.

16

FH129213

BLOCK - sickle end, sway bar

1шт.

17

FHO26138

BOLT

BOLT - ref. 17

2шт.

18

FH123224

PLATE - reinforcement, sway bar

1шт.

SCREW - 1/2" x 3/4" N.C. sq. hd. cup point (85-812)

1шт.

19

FHO50112

BEARING

CONE - (Timken #O7100)

2шт.

20

FH271981

X

SWAY BAR

1шт.

FITTING - grease 1/4" str. (219-6)

1шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

2шт.

21

FHO50104

CUP

- (Timken #O7196)

2шт.
