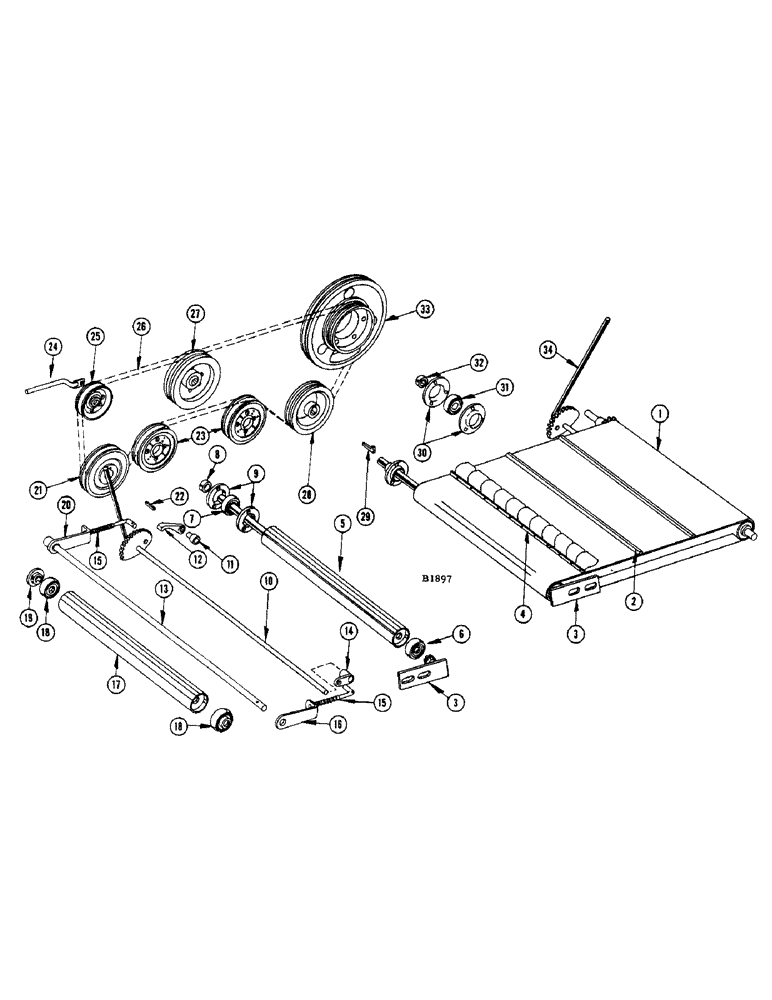

Запчасти Case IH 950 (52) - CANVAS AND CANVAS DRIVE

1

FHO28233

CANVAS - (Duck) Regular - 10 ft. header (See FHO28407)

2шт.

FHO28175

CANVAS - (Duck) Regular - 12 ft. header (See FHO28415)

2шт.

FHO28191

CANVAS - (Duck) Regular - 14 ft. header (See FHO28423)

2шт.

FHO28217

CANVAS - (Duck) Regular - 16 ft. header (See FHO28431)

2шт.

FHO28753

CANVAS - (Duck) Regualr - 20 ft. header

2шт.

FHO28407

CANVAS - (Rubberized) Special - 10 ft. header

2шт.

FHO28415

CANVAS - (Rubberized) Special - 12 ft. header

2шт.

FHO28423

CONVEYOR ASSY.

CANVAS - (Rubberized) Special - 14 ft. header

2шт.

FHO28431

CANVAS - (Rubberized) Special - 16 ft. header

2шт.

2

FHO29249

SLAT

1шт.

3

FH146951

BRACKET

2шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) Nut (25-106) and fl. wshr. (95-6)

4шт.

4

FHO28373

COUPLING

2шт.

5

FH265926

ROLLER - drive

2шт.

6

FHO50377

BEARING

BEARING - (N.D. #CB504)

1шт.

7

3074CSA

BALL BEARING

- (Fafnir #RA100NPPB)

2шт.

8

O3785CS

X

COLLAR

1шт.

9

FHO50567

FLANGE

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

6шт.

10

FH265918

ROD - R.H. tightener

1шт.

11

FH240820

SPACER

2шт.

BOLT - 3/8" x 1-3/4" N.C. hex. (13-628) Nut (25-106)

2шт.

12

FH240812

DOG - ratchet

2шт.

13

FH252130

SHAFT

2шт.

14

FH258921

BRACKET - replaces FH239657 when stocks are exhausted

2шт.

ROLL PIN - 1/4" x 1" (138-134)

2шт.

FH239657

BRACKET - replaced by FH258921 when stocks are exhausted

2шт.

15

FH239715

SPECIAL BOLT

DRAW BOLT

4шт.

ROLL PIN - 1/8" x 3/4" (138-57)

4шт.

NUT - 7/16" N.C. hex. (25-107)

8шт.

16

FH239699

BRACKET

2шт.

17

FH252353

ROLLER - idler

2шт.

18

FHO51540

BEARING, BALL

BEARING - (Fafnir #1012KRR) See note

4шт.

19

FH254888

COLLAR

1шт.

20

FH239681

BRACKET

2шт.

ROLL PIN - 1/4" x 1" (138-134)

2шт.

21

FHO54221

SHEAVE - drives R.H. roller, driven

1шт.

22

T13450

KEY

1шт.

23

FHO54155

BEARING

PULLEY - idler

2шт.

BOLT - 1/2" x 3-1/2" rhd. sq. nk. (11-856) Nut (25-108)

2шт.

WASHER - 1/2" flat (95-8)

7шт.

24

FH265975

DRAW BOLT

1шт.

NUT - 1/2" N.C. hex. (25-108)

1шт.

25

FHO53512

X

PULLEY - tightener

1шт.

WASHER - 1/2" flat (95-8)

1шт.

26

FHO57042

X

BELT - canvas drive

1шт.

27

FHO53538

PULLEY

IDLER

1шт.

WASHER - 1/2" flat (95-8)

4шт.

28

FH265959

SHEAVE - drives L.H. roller, driven

1шт.

29

FHO61424

KEY

1шт.

30

FHO51193

X

FLANGE

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106)

3шт.

31

K3315

BEARING ASSY

BEARING - (Fafnir #RA104NPPB)

1шт.

32

O885CB

COLLAR

1шт.

33

FH266197

SHEAVE - Pitman

1шт.

34

FH265892

ROD - L.H. tightener

1шт.

PIN - cotter 1/8" x 1" (132-48)

2шт.

WASHER - 5/8" plain (195-41)

3шт.
