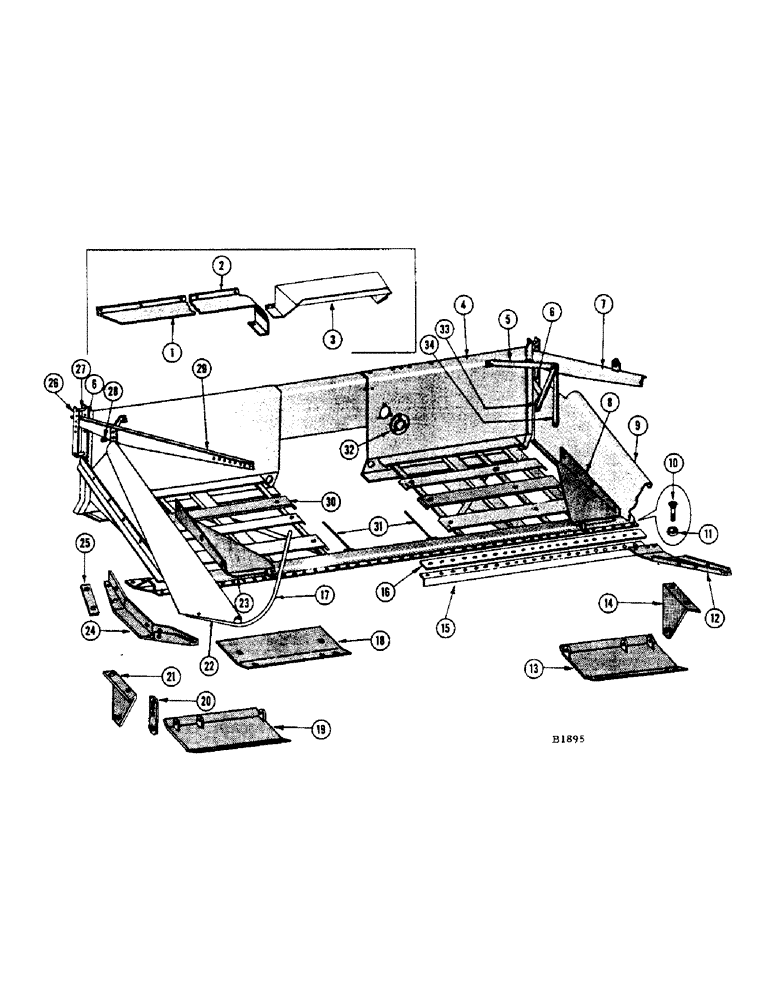

Запчасти Case IH 950 (50) - HEADER PLATFORM AND DIVIDERS (CONT"D)

16

FH289272

GUARD - (Rubber) 10 ft. header

2шт.

FH289280

GUARD - (Rubber) 12 ft. header

2шт.

FH289298

GUARD - (Rubber) 14 ft. header

2шт.

FH289306

GUARD - (Rubber) 16 ft. header

2шт.

17

FH136366

POINT - divider

2шт.

BOLT - 3/8" x 1" N.C. hex. (113-207) Nut (129-103) and L.W. (192-21) Pl. wshr. (195-525)

2шт.

18

FH269449

PLATE - wear, divider shoe (10, 12, 14 and 16 ft. headers)

2шт.

BOLT - 3/8" x 1" plow (19-616) Nut (25-106) L.W. (92-6)

4шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6) and fl. wshr. (95-6)

4шт.

19

FH224071

SKID - adjustable, R.H. side (Special)

1шт.

20

FH224139

LINE - adjusting, for skid shoes (Special)

4шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106) and L.W. (92-6)

12шт.

21

FH224121

BRACKET - right mounting (Special)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) Nut (25-106) and L.W. (92-6)

2шт.

22

FH126854

DIVIDER - right hand

1шт.

23

FH237818

SHIELD - right lower draper (Special)

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (25-105) and pl. wshr. (195-521) L.W. (192-20)

2шт.

24

FH223495

SHOE - right divider

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (113-208) Nut (129-103) Pl. wshr. (195-525) L.W. (192-21)

1шт.

25

FH223537

SHIM

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (113-208) Nut (129-103) and L.W. (192-21)

2шт.

26

FH221523

GUIDE - reel support arm

2шт.

BOLT - 3/8" x 2-1/4" N.C. hex. (13-644) Nut (25-106) and L.W. (92-6)

4шт.

27

FH136200

SPACER

2шт.

28

O4361AB

SPACER

1шт.

29

FH266106

ARM - R.H., reel support

1шт.

30

FH222216

SLIDE - canvas (For 10' header rubberized canvase - special)

6шт.

SCREW - 5/16" x 3/4" N.C. flat hd. mach. (171-221)

12шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

12шт.

WASHER - 5/16" flat (95-5)

6шт.

FH222232

SLIDE - canvas (For 12' header rubberized canvas - special)

6шт.

FH222257

SLIDE - canvas (For 14' header rubberized canvas - special)

6шт.

FH222273

SLIDE - canvas (For 16' header rubberized canvas - special)

6шт.

31

FH115857

ROD - windrow forming (Special)

2шт.

BOLT - 3/8" x 1" N.C. rhd. sq. nk. (11-616) Nut (25-106) and L.W. (92-6)

4шт.

32

FH268557

PLATE - cover, sickel Pitman hole in back sheet

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (75-48)

3шт.

NUT - 1/4" N.C. speed (129-101)

3шт.

33

FH117614

BRACE - reel support

2шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (113-417) Nut (129-105) L.W. (192-23) and pl. wshr. (195-533)

1шт.

34

FH117622

SUPPORT - reel arm

2шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (113-417) Nut (129-105) L.W. (192-23) and pl. wshr. (195-533)

1шт.
