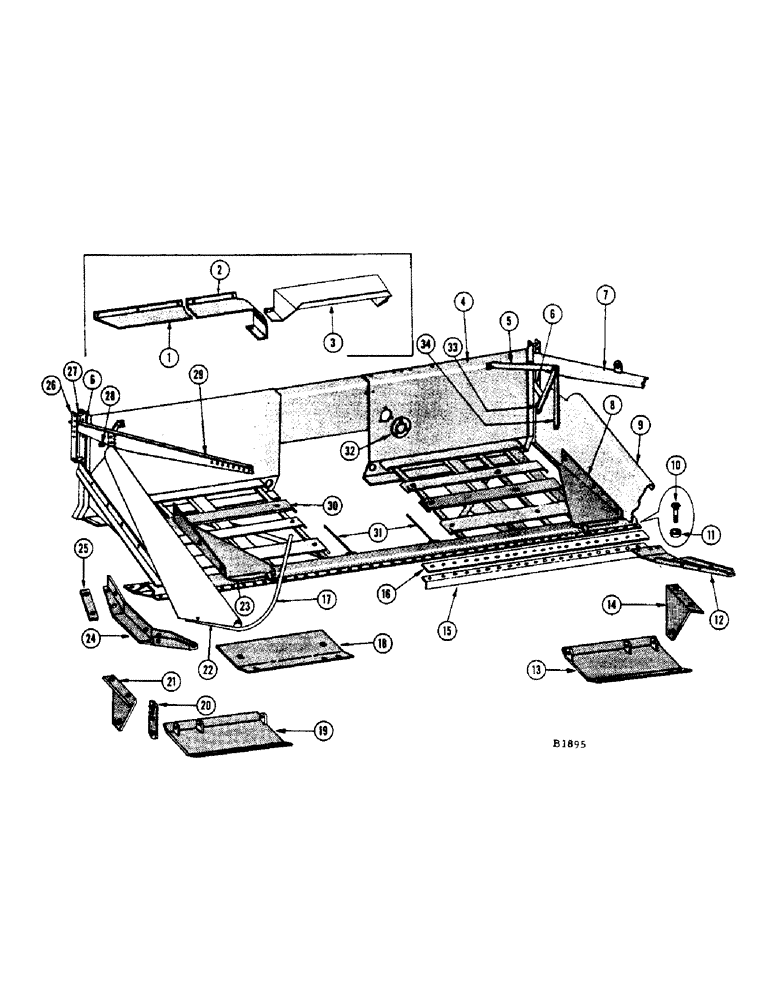

Запчасти Case IH 950 (48) - HEADER PLATFORM AND DIVIDERS

1

FH149682

SHIELD - draper, L.H. (Special - 10 ft. header)

1шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and nut (25-105) L.W. (92-5)

5шт.

FH149690

SHIELD - draper, R.H. (Special - 10 ft. header)

1шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and nut (25-105) L.W. (92-5)

5шт.

FH149708

SHIELD - draper, L.H. (Special - 12 ft. header)

1шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and nut (25-105) L.W. (92-5)

7шт.

FH149716

SHIELD - draper, R.H. (Special - 12 ft. header)

1шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and nut (25-105) L.W. (92-5)

7шт.

2

FH149724

SHIELD - draper, L.H. (Special - 14 ft. header)

1шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and nut (25-105) L.W. (92-5)

8шт.

FH149732

SHIELD - draper, R.H. (Special - 14 ft. header)

1шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and nut (25-105) L.W. (92-5)

8шт.

FH149740

SHIELD - draper, L.H. (Special - 16 ft. header)

1шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (25-512) and nut (25-105) L.W. (92-5)

8шт.

FH149757

SHIELD - draper, R.H. (Special - 16 ft. header)

1шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and nut (25-105) L.W. (92-5)

8шт.

3

FH269738

SHIELD - Windrow opening

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) L.W. (92-5) and fl. wshr. (95-5)

3шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and nut (25-105) L.W. (92-5)

4шт.

4

FH289645

PLATFORM - header (10 ft.)

1шт.

FH289652

PLATFORM - header (12 ft.)

1шт.

FH289660

PLATFORM - header (14 ft.)

1шт.

FH289678

PLATFORM - header (16 ft.)

1шт.

FH299651

PLATFORM - header (20 ft.)

1шт.

5

FH117606

BRACE - diagonal reel support

2шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (113-208) Nut (129-103) and L.W. (192-21) Pl. wshr. (195-525)

1шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (113-417) Nut (129-105) and L.W. (192-23) Pl. wshr. (195-533)

1шт.

6

FH160218

SPACER

2шт.

7

FH266080

ARM - L.H., reel support

1шт.

8

FH237800

SHIELD - left lower draper (Special)

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (129-102) and L.W. (192-20) Pl. wshr. (195-521)

2шт.

9

FH126847

DIVIDER - left hand

1шт.

10

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" rhd. sq. nk.

1шт.

NUT - 7/16" N.C. (129-104)

1шт.

11

FH160341

SPACER

1шт.

12

FH223487

SHOE - left divider

1шт.

13

FH224063

SKID - adjustable, L.H. side (Special)

1шт.

14

FH224113

BRACKET - left mounting (Special)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) Nut (25-106) and L.W. (92-6)

2шт.

15

FH289314

RETAINER - 10 ft. header

2шт.

SCREW - 5/16" x 3/4" N.C. truss hd. mach. (77-512)

7шт.

FH289322

RETAINER - 12 ft. header

2шт.

SCREW - 5/16" x 3/4" N.C. truss hd. mach. (77-512)

9шт.

FH289330

RETAINER - 14 ft. header

2шт.

SCREW - 5/16" x 3/4" N.C. truss hd. mach. (77-512)

11шт.

FH289348

RETAINER - 16 ft. header

2шт.

SCREW - 5/16" x 3/4" N.C. truss hd. mach. (77-512)

13шт.
