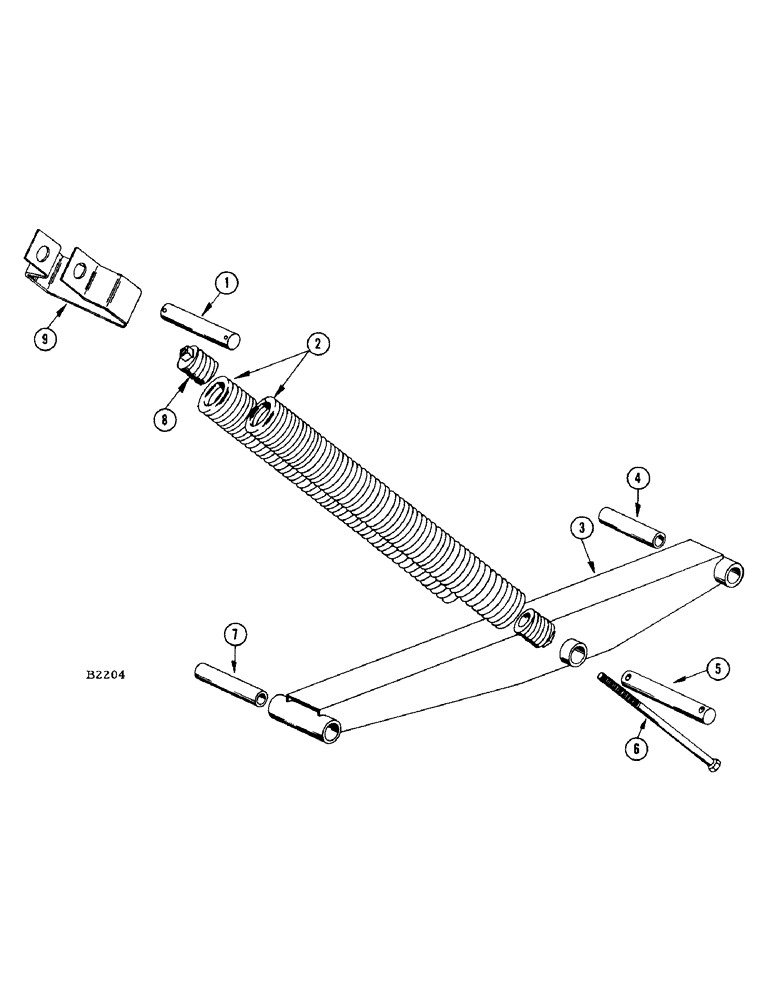

Запчасти Case IH 950 (46) - 20 FT. HEADER LIFT MOUNTING

1

FH300129

PIN - spring bracket

2шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

2

FHO58651

SPRING - tension, header flotation

4шт.

3

FH299826

ARM - lower, header lift

2шт.

FITTING - grease 1/4" - 90 degrees (219-57)

6шт.

4

FH158501

SPACER - front, lower arm

2шт.

5

FH300111

PIN - spring, lower arm

2шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

6

FHO73502

SPECIAL BOLT

BOLT - flotation spring to spring pin

4шт.

NUT - 5/8" N.C. (129-107)

4шт.

7

FH158519

SPACER - rear, lower arm

2шт.

8

FH264424

PLUG - header flotation springs

8шт.

BOLT - 5/8" x 1-3/4" N.C. hex. (13-1028) L.W. (92-10)

4шт.

9

FH300038

BRACKET - header flotaion spring

2шт.
