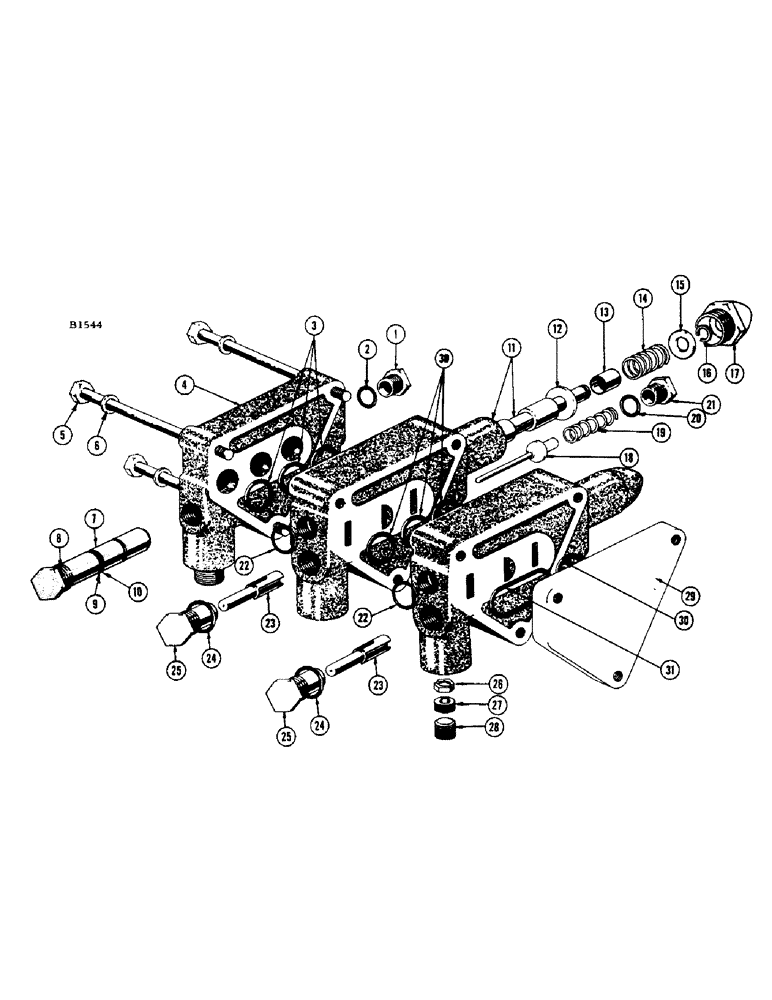

Запчасти Case IH 950 (42) - PARTS FOR FH742064 HYDRAULIC VALVE, PORT PLATE ASSEMBLY, HEADER CONTROL SECTION

1

F8240

PLUG - port plate body

1шт.

2

O8569AB

X

"O" RING - plug

1шт.

3

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING

3шт.

4

F1290

BODY - port plate

1шт.

5

13-578

BOLT - 5/16" x 4-7/8" N.C. hex.

3шт.

6

92-5

LOCK WASHER,5/16"

3шт.

7

F86224

CARTRIDGE - repair, for F1290 port plate

1шт.

8

O8416AB

X

"O" RING - cartridge

1шт.

9

F10078

SEAL

WASHER - back up, cartridge

1шт.

10

F10079

X

"O" RING - cartridge

1шт.

11

F77045

BODY - with spool

2шт.

12

F8235

WASHER

- back up

1шт.

13

F8224

SLEEVE

- spool

1шт.

14

F8225

SPRING - spool centering

1шт.

15

F8236

SHIM

WASHER - back up

1шт.

16

F8237

RING

SNAP RING - spool cap

1шт.

17

F77047

CAP

- spool

1шт.

18

F77048

VALVE POPPET

POPPET - relief

1шт.

19

F8228

SPRING

- lock out

1шт.

20

O8569AB

X

"O" RING

1шт.

21

F8240

PLUG - poppet

1шт.

22

O8416AB

X

"O" RING - spool

2шт.

23

F8243

PLUNGER

1шт.

24

O8416AB

X

"O" RING - plug

1шт.

25

F8242

PLUG - plunger

1шт.

26

FH730606

PLATE - orifice (.036 dia.)

2шт.

27

F8245

RETAINER - orifice plate

2шт.

28

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe 3/8"

2шт.

29

F1228

PLATE - cover

1шт.

30

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING

4шт.

31

F8220

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - cover

1шт.

F78876

PACKAGE, REPAIR

KIT - repair (Includes ref. no. 2, 3, 8, 9, 10, 18, 20, 22, 24, 30 and 31)

1шт.
