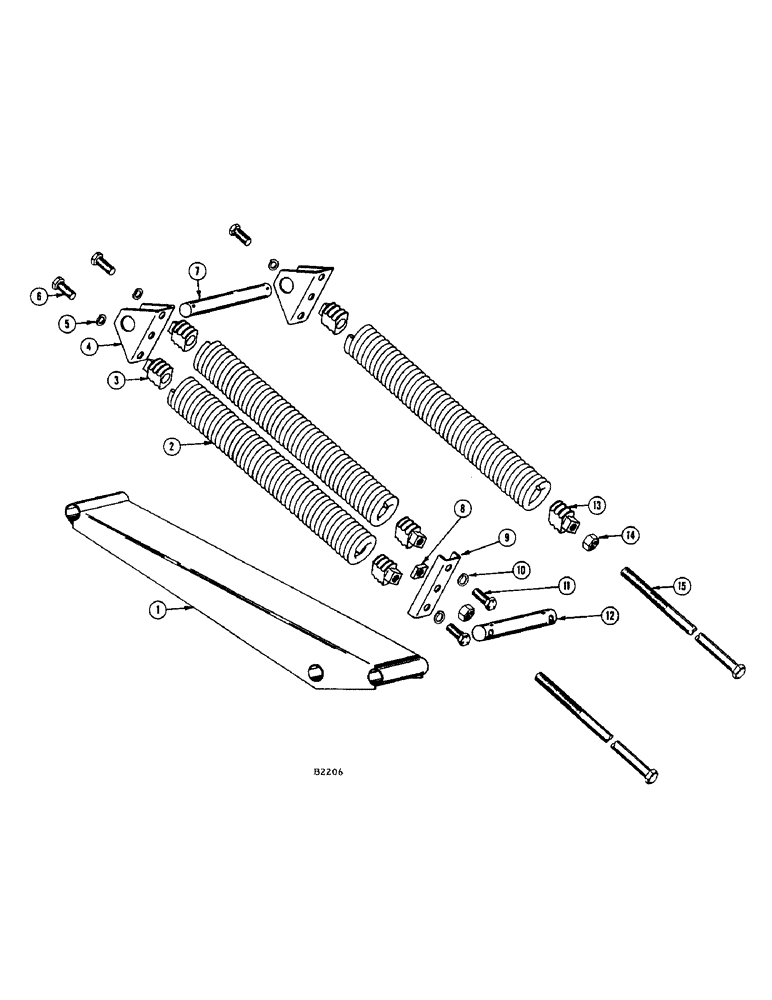

Запчасти Case IH 950 (36) - TENSION SPRING HEADER FLOTATION

1

FH299206

ARM - lift, lower

2шт.

2

FHO58826

SPRING - flotation, tension

6шт.

3

FH299222

PLUG - spring, upper

6шт.

4

FH299180

BRACKET - spring mounting

4шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

7

FH299172

PIN

2шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

8

25-2810

SQUARE NUT

- 5/8" N.C. square

2шт.

9

FH287581

BRACKET - spring

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

12

FH299347

PIN - spring

2шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

13

FH299230

PLUG

- spring, lower

6шт.

14

25-1010

NUT,5/8"-11, G5

4шт.

15

FHO73627

BOLT - header lift spring (Replaces FH702308 when stocks are exhausted)

4шт.

FH702308

BOLT - header lift spring (Replaced by FHO73627 when stocks are exhausted)

4шт.
