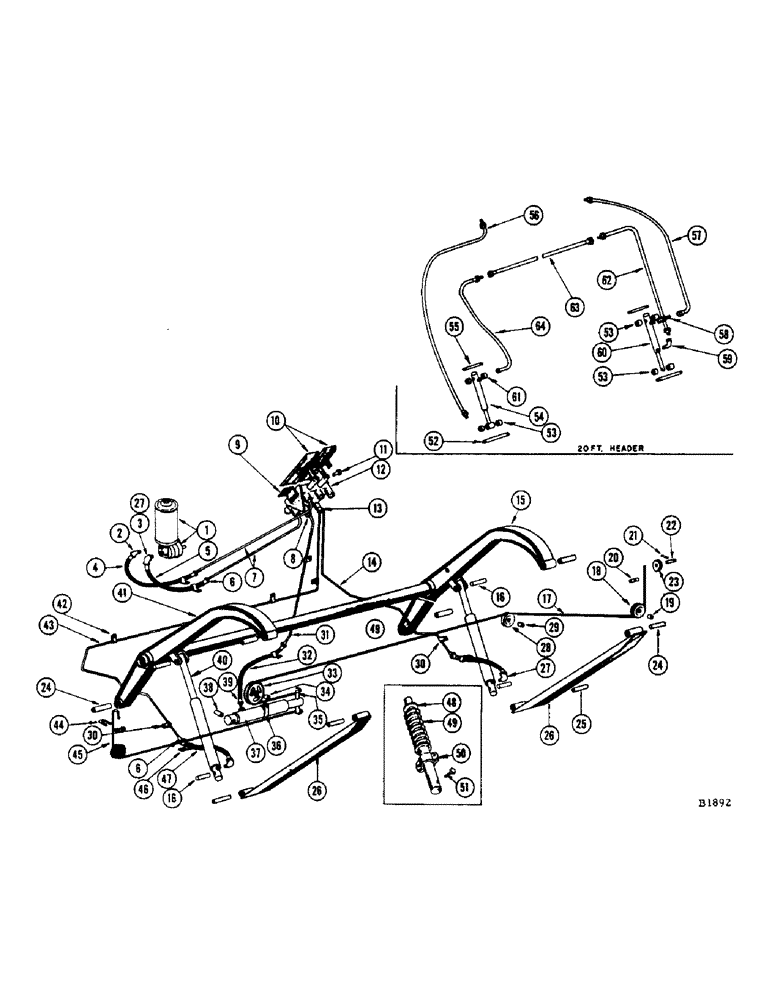

Запчасти Case IH 950 (34) - HEADER AND REEL HYDRAULICS (CONTD)

38

FH266221

BUSHING - reel hydraulic cylinder

1шт.

39

221-53

BUSHING

- reducing 3/8" x 1-1/4"

1шт.

40

FHO42556

CYLINDER - tension spring flotation (Cessna #40033BG) (Replaces FHO42838 when stocks are exhausted)

2шт.

FHO42838

CYLINDER - compression spring flotation (Cessna #40033BC) (Use FHO42556 and 221-403 90 degree El when stocks are exhausted)

2шт.

41

FH146738

ARM - R.H. upper, header lift

1шт.

42

FH125971

CLAMP - line

3шт.

43

FH304733

LINE

TUBE - R.H. header cylinder (Includes 2 ref. 6)

1шт.

44

FHO45260

CLAMP - 1/4" cable

4шт.

BOLT - 5/8" x 3-1/2" N.C. hex. (13-1056) Nut (25-1010) L.W. (92-10) and fl. wshr. (95-10)

2шт.

45

FH267070

CABLE - R.H., for 10 ft. reel

1шт.

FH267104

CABLE - R.H., for 12 ft. reel

1шт.

FH267120

CABLE - R.H., for 14 ft. reel

1шт.

FH267146

CABLE - R.H., for 16 ft. reel

1шт.

FH300145

CABLE - R.H., for 20 ft. reel

1шт.

46

FH121723

CLAMP - line

4шт.

SCREW - 5/16" x 1" N.C. self-tapping (187-1022) L.W. (92-5)

4шт.

47

FHO42192

HOSE - connector, for header cylinder

2шт.

48

FH124289

WASHER - compression spring header flotation

2шт.

49

FHO58263

SPRING - compression spring header flotation

2шт.

50

FH289793

COLLAR - clamps, compression spring header flotation

4шт.

51

114-406

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5, Full Thd

4шт.

52

FH300228

PIN - lower, header cylinder mounting (20 ft. header)

2шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

53

O5963HT

SPACER - 2 lower R.H. cylinder pin, 4 lower and upper L.H. cylinder pin

6шт.

54

FH742197

CYLINDER - (Cessna #40036-LA) R.H., header lift (20 ft. header)

1шт.

F94790

KIT - repair, for FH742197 cylinder (Includes lock ring, "O" ring, back up washer, seal washer and seal)

1шт.

55

FH300236

PIN - upper, header cylinder mounting (20 ft. header)

2шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

56

FH742247

HOSE - reel lift cylinder (20 ft. header)

1шт.

UNION - half 3/8" x 3/8" (222-810)

1шт.

57

FH742155

HOSE - L.H. cylinder to valve (20 ft. header)

1шт.

UNION - 3/8" (221-802)

2шт.

58

FH731125

RESTRICTOR

1шт.

59

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 1/4" x 90 degree street

1шт.

60

FH742189

CYLINDER - (Cessna #41119-EA) L.H., header lift (20 ft. header)

1шт.

F94789

KIT - repair, for FH742189 cylinder (Includes 3 "O" rings, 2 poppets, 2 back up washers and 1 seal)

1шт.

61

O4710C

SPACER

2шт.

62

FH742171

HOSE - connector, for L.H. cylinder to FH300178 tube (20 ft. header)

1шт.

63

FH300178

TUBE - L.H. connector hose to R.H. connector hose

1шт.

NUT - 3/8" flared (222-834)

2шт.

64

FH742163

HOSE - connector, for R.H. cylinder to FH300178 tube (20 ft. header)

1шт.
