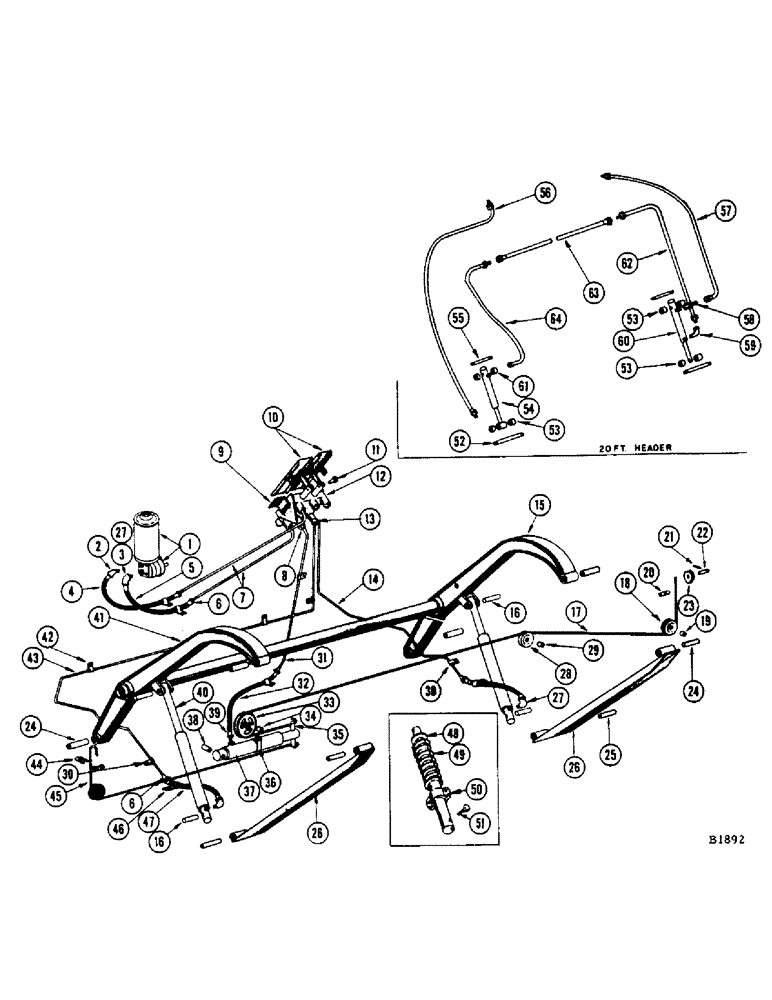

Запчасти Case IH 950 (32) - HEADER AND REEL HYDRAULIC

1

FHO42820

PUMP - hydraulic, with reservoir

1шт.

2

221-403

X

ELBOW - street (3/8" - 45 degrees)

1шт.

3

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - black pipe (3/8" x 1-1/2")

1шт.

4

FHO42853

HOSE - return, Serial Range: pump-valve

1шт.

5

FHO42861

HOSE - pressure, Serial Range: pump-valve

1шт.

6

222-834

NUT - 3/8" flared

8шт.

7

FH307439

TUBE - pressure and return, pump to valve (Includes 2 ref. 6)

2шт.

8

222-810

HYD CONNECTOR,5/8"-18, 45 Degree Fl x 3/8" NPT

HALF UNION - 3/8" x 3/8"

1шт.

9

FH128173

BRACKET - right, valve mounting

1шт.

FH128165

BRACKET - left, valve mounting

1шт.

10

FH128124

PEDAL - hydraulic foot

2шт.

11

FHO63578

X

PIN - clevis

2шт.

12

FHO42291

VALVE - (Cessna #15442-TC) Hydraulic-compression spring header flotation

1шт.

FH742064

VALVE - hydraulic (Cessna #15442-TG) Tension spring header flotation

1шт.

13

222-886

TEE - brass (3/8" x 3/8")

1шт.

14

FH293241

X

TUBE - L.H. header cylinder (Includes 2 ref. 6)

1шт.

15

FH146720

ARM - L.H. upper, header lift

1шт.

16

FH119990

PIN - header cylinder mounting

4шт.

17

FH267062

CABLE - L.H., for 10 ft. reel

1шт.

FH267088

CABLE - L.H., for 12 ft. reel

1шт.

FH267112

CABLE - L.H., for 14 ft. reel

1шт.

FH267138

CABLE - L.H., for 16 ft. reel

1шт.

FH300137

CABLE - L.H., for 20 ft. reel

1шт.

18

FH304766

PULLEY - reel cables (20 ft. header)

2шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (13-624) Nut (25-106) and L.W. (92-6) Fl. wshr. (95-6)

2шт.

19

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - (Torrington #B98)

1шт.

20

P2456S

SPACER - reel leveling stop

2шт.

21

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

22

FH266072

PIN - thimble

2шт.

WASHER - 5/8" flat (95-10)

2шт.

23

FH241935

THIMBLE - cable

2шт.

24

FH158501

SPACER - 4 for upper arm and 2 for lower arm

6шт.

25

FH158519

SPACER - lower arm

2шт.

26

FH116038

ARM - lower, header lift-compression spring header flotation

2шт.

27

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- malleable street (3/8" - 90 degrees)

3шт.

28

FH161778

PULLEY - reel cables (10', 12', 14' and 16' header)

3шт.

BOLT - 3/8" x 2-1/2" N.C. hex. (13-640) Nut (25-106) ad

1шт.

BOLT - 3/8" x 2-1/2" N.C. hex. (13-640) Nut (25-106) and L.W. (92-6)

3шт.

FH161778

PULLEY - reel cable (20 ft. header)

1шт.

BOLT - 3/8" x 1-3/4" N.C. hex. (13-628) Nut (25-106) and L.W. (92-6)

1шт.

29

T25073

BUSHING

SPACER

3шт.

30

FH229724

CLAMP - line

2шт.

31

FH304741

TUBE - reel lift cylinder (Includes 2 ref. 6)

1шт.

32

FHO42846

HOSE - (50" long) connector, reel cylinder

1шт.

33

FH265967

PULLEY - (6" O.D.) reel cables, R.H. and L.H.

1шт.

BOLT - 1/2" x 1-3/4" N.C. hex. (13-823) Nut (25-108) and L.W. (92-8)

1шт.

34

O4361AB

SPACER - reel cable pulley

1шт.

35

FH266056

ADAPTER - end, reel hydraulic cylinder

1шт.

36

FH126755

CLAMP - reel hydraulic cylinder

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) Nut (25-106) and L.W. (92-6)

1шт.

37

FHO42911

CYLINDER - (Cessna #40033-CF) Reel hydraulic (Replaces FHO42549 when stocks are exhausted)

1шт.

FHO42549

CYLINDER - (Cessna #40033-CA) Reel hydraulic (Replaced by FHO42911 when stocks are exhausted)

1шт.
