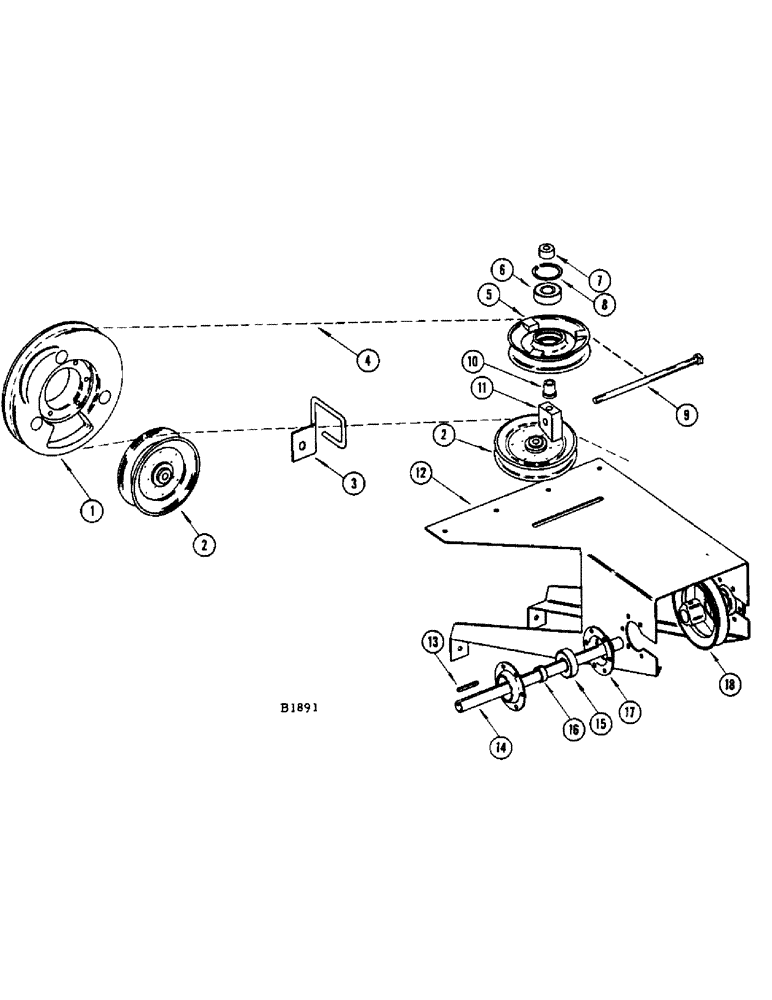

Запчасти Case IH 950 (30) - HEADER DRIVE

1

FH266197

SHEAVE

1шт.

2

FHO53538

PULLEY

- lower idler

2шт.

BOLT - 1/2" x 1-1/2" N.C. hex. (13-824) Nut (25-108) and L.W. (92-8)

1шт.

3

FH270371

GUIDE - belt

1шт.

4

FHO57059

BELT

V-BELT, Header Drive

1шт.

5

FH266189

PULLEY - upper idler

1шт.

BOLT - 1/2" x 2-3/4" N.C. hex. (13-844) Nut (25-108) and L.W. (92-8)

1шт.

6

FH710251

BEARING - (Fafnir #206KRR-2)

1шт.

7

FH266254

SPACER

1шт.

8

FHO52035

RING, SNAP

SNAP RING

1шт.

9

FHO73270

DRAW BOLT

1шт.

WASHER - 1/2" flat (95-8)

1шт.

10

FH266247

SLEEVE - idler

1шт.

11

FH266239

DIVIDER - idler

1шт.

12

FH266262

SHIELD

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) Nut (25-106) and L.W. (92-6)

2шт.

BOLT - 3/8" x 1" N.C. hex. (13-616)

4шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6)

6шт.

WASHER - 3/8" flat (95-6)

2шт.

13

T25070

KEY

1шт.

14

FH266114

JACKSHAFT - header (Replaced by FH289595 when stocks are exhausted)

1шт.

FH289595

JACKSHAFT - header (Replaces FH266114 when stocks are exhausted)

1шт.

15

401CBA

BEARING - (Fafnir #G1104KLLB)

2шт.

16

O885CB

COLLAR

1шт.

17

FH264036

FLANGE

4шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) and L.W. (92-6)

10шт.

18

F2426

PULLEY

1шт.

FH300020

PULLEY - (20 ft. header)

1шт.
