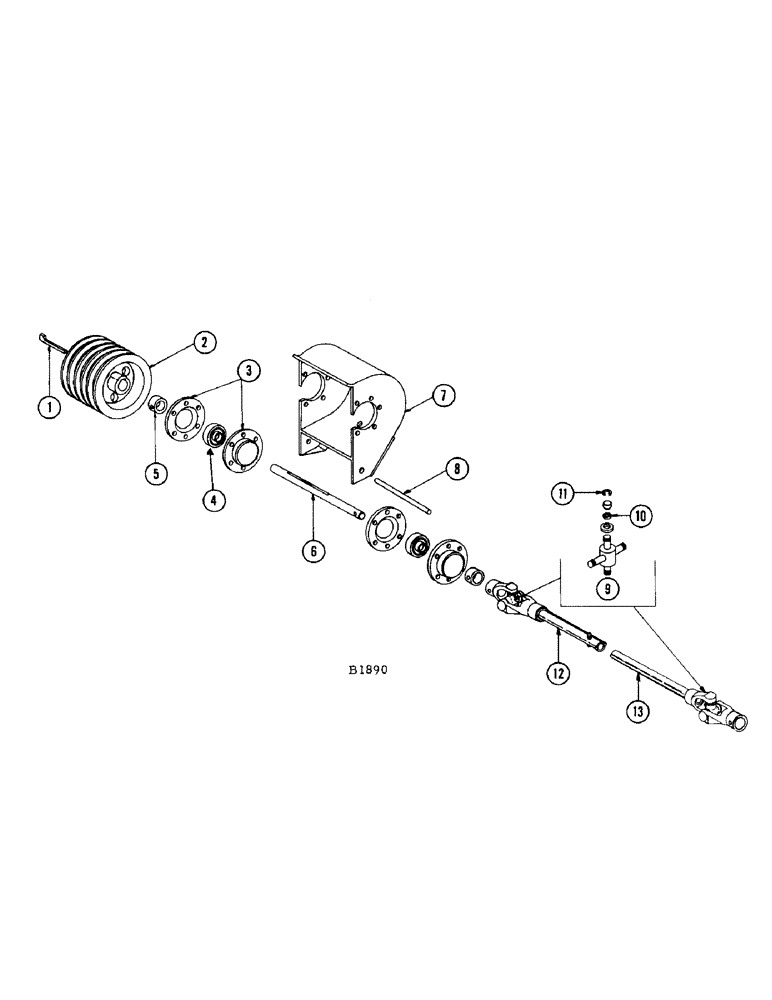

Запчасти Case IH 950 (26[A]) - HEADER DRIVE UNIVERSAL JOINT SHAFT

1

FHO61739

KEY

- gib (950 Windrower)

1шт.

FHO61416

KEY - gib (1050 Windrower)

1шт.

2

FH270058

SHEAVE - (VH4D engine)

1шт.

FH267914

SHEAVE - (VG4D engine)

1шт.

FH246686

SHEAVE - (1050 Windrower)

1шт.

3

FH264036

FLANGE

4шт.

4

K3315

BEARING ASSY

BEARING - (Fafnir #RA104NPPB)

2шт.

5

B18329

COLLAR ASSY.

COLLAR

1шт.

6

FH267856

SHAFT

1шт.

7

FH267864

SUPPORT - shaft

1шт.

8

FH267823

SPACER

1шт.

9

B13275

KIT

- repair, universal joint

2шт.

FITTING - grease 1/8" - 67-1/2 degrees (129-40)

4шт.

10

B13276

SEAL - oil

4шт.

11

B13277

SNAP RING

4шт.

12

FH750299

JOINT - universal (Before serial number 8241601)

1шт.

FH751164

JOINT - universal (Serial number 8241601 and after)

1шт.

BOLT - 3/8" x 2-1/4" N.C. hex. (113-213) Nut (129-103) and L.W. (195-525)

1шт.

13

FH750307

JOINT - universal (Before serial number 8241601)

1шт.

FH751156

JOINT - universal (Serial number 8241601 and after)

1шт.

BOLT - 3/8" x 2-1/4" N.C. hex. (113-213) Nut (129-103) and L.W. (195-525)

1шт.

FH320481

SHIELD - PTO (Not shown)

2шт.
