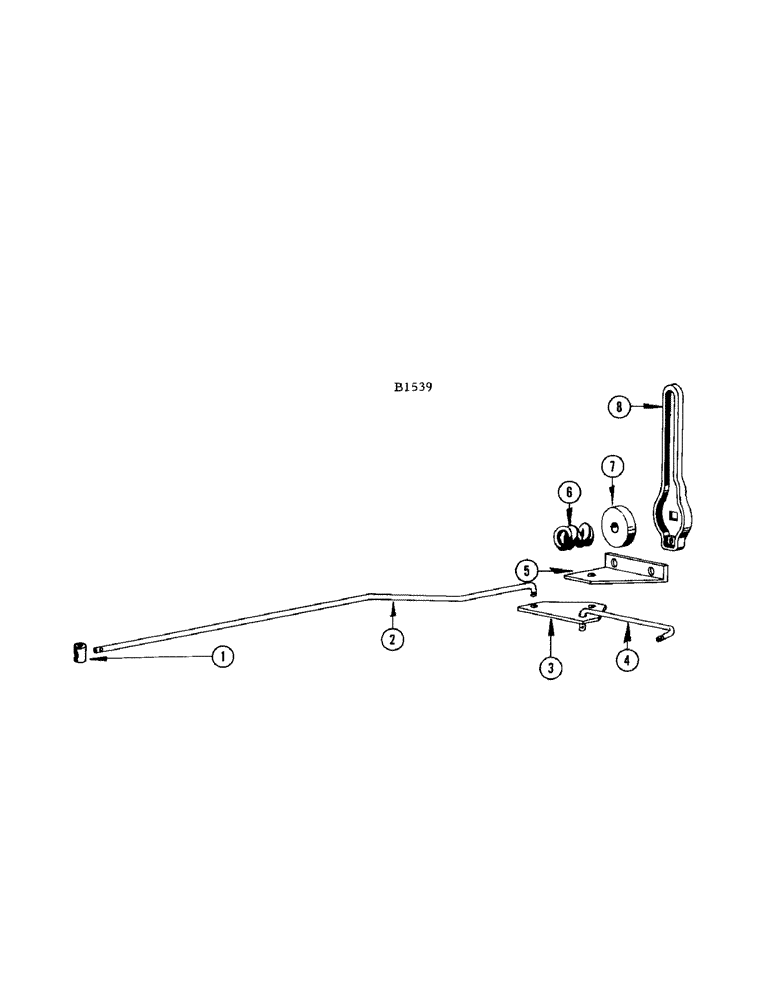

Запчасти Case IH 950 (18[A]) - THROTTLE CONTROL

1

FH124107

STOP - throttle rod

1шт.

SCREW - set Allen 5/16" x 5/16" (83-55)

1шт.

2

FH136754

ROD - throttle (VH4D engine)

1шт.

PIN - cotter 3/32" x 3/4" (153-21)

1шт.

FH144386

ROD - throttle (VG4D engine)

1шт.

PIN - cotter 3/32" x 3/4" (135-21)

1шт.

FH246975

ROD - throttle (V460D engine)

1шт.

PIN - cotter 3/32" x 3/4" (135-21)

1шт.

3

FH135020

PIVOT - throttle

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Dbl. jam nut (25-146)

1шт.

4

FH146621

ROD - platform throttle

1шт.

PIN - cotter 3/8" x 1" (132-196)

2шт.

5

FH135012

MOUNTING - throttle rod

1шт.

ROD - 5/16" x 3/4" N.C. hex. (13-512) Nut (25-105) and L.W. (92-5)

2шт.

6

FHO58024

SPRING

1шт.

7

FHO29322

DISC - friction

1шт.

8

FH150342

LEVER - throttle

1шт.

BOLT - 3/8" x 2" rhd. sq. nk. (11-632) Dbl. jam nut (25-146)

1шт.

WASHER - 3/8" plain (195-25)

1шт.
