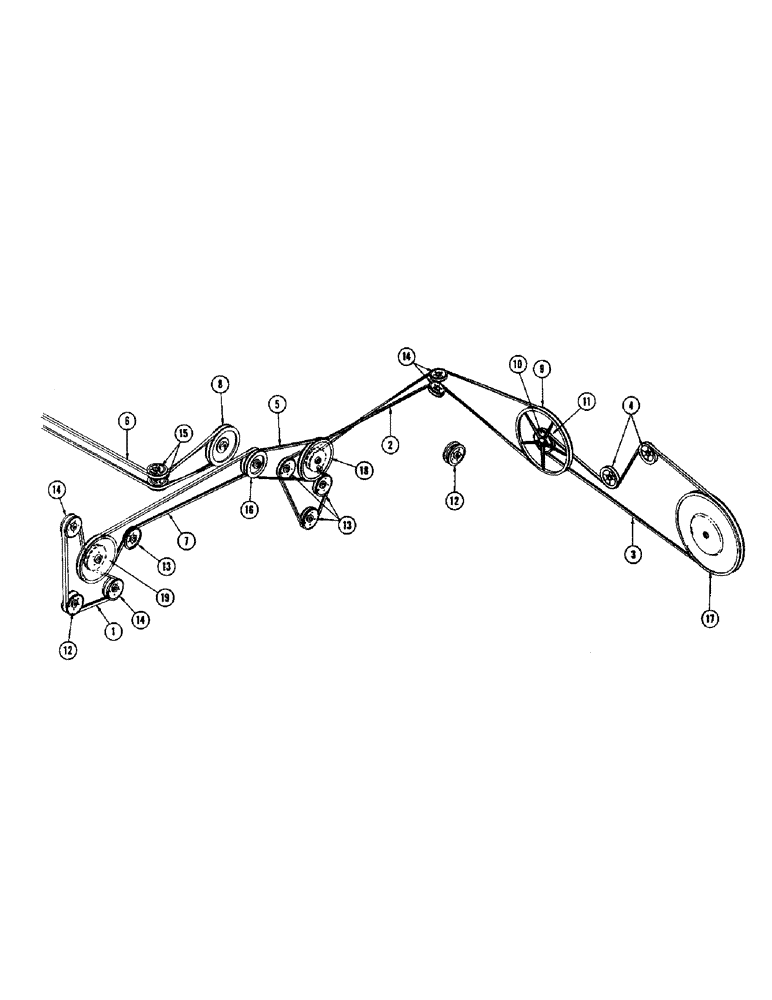

Запчасти Case IH 856 (40) - DRIVE BELTS

1

F61394

BELT - R.H. roller drive, driven

1шт.

2

F61395

BELT - L.H. roller drive and reel drive

1шт.

3

F61364

BELT - reel drive, driven

1шт.

4

F61384

PULLEY - idler

2шт.

5

F61392

BELT - sickle drive

1шт.

6

F61507

BELT - header drive

1шт.

7

F61393

BELT - roller drive, R.H.

1шт.

8

F61424

PULLEY

1шт.

9

F61411

PULLEY

1шт.

10

F49217

FLANGE

PULLEY

1шт.

11

F49218

SHIM

1шт.

12

SHEAVE - roller drive (See ref. 23, 24, 25, & 26, page 36)

2шт.

13

F49300

PULLEY - flat idler, 4-3/8" O.D.

4шт.

14

FHO53512

X

PULLEY - vee idler, 4-3/8" O.D.

4шт.

15

F61497

PULLEY - idler

2шт.

16

F61423

PULLEY - 5-3/4" O.D. double sheave

1шт.

17

F59527

PULLEY - reel, 18" O.D.

1шт.

F59536

HUB - reel pulley

1шт.

F59537

CLAMP - reel drive

1шт.

18

F61409

CRANK PULLEY - C/W bearing

1шт.

F61350

BEARING - crank pulley

1шт.

19

See page 32, ref. 46, 47, 48, 49, 50 and 18

1шт.
