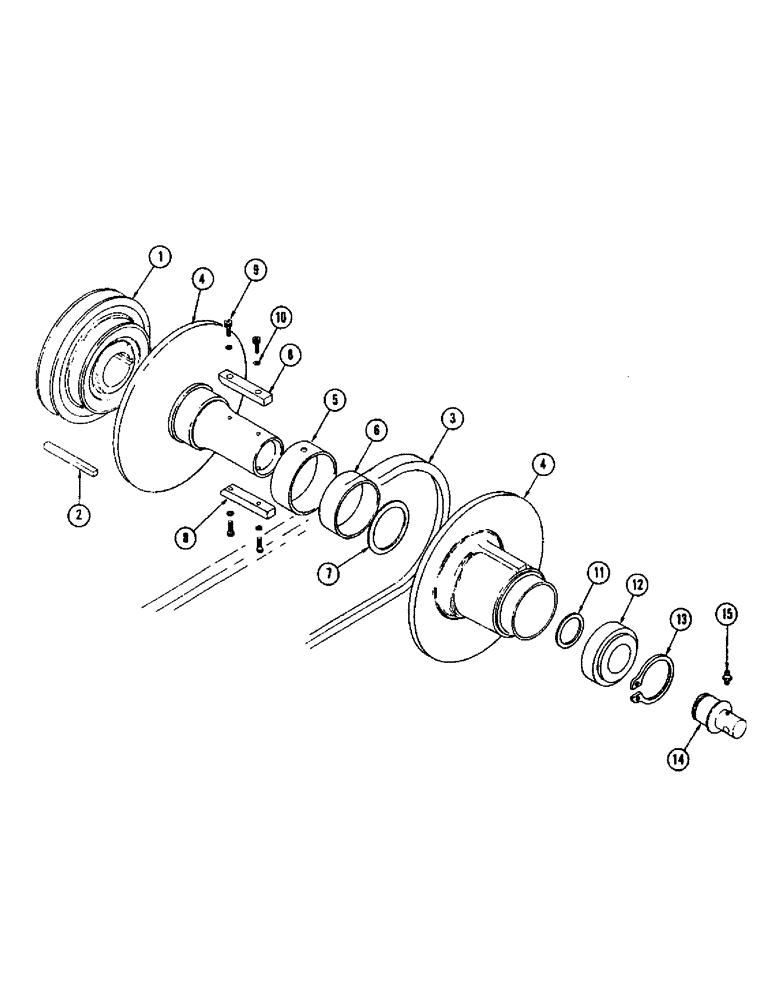

Запчасти Case IH 856 (20) - ENGINE VARI - PULLEY

1

F49391

PULLEY - pump and header drive, 2 groove (VG4D engine)

1шт.

83-68

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - 3/8" x 1/2" N.C. cup pt. hex. socket set

1шт.

2

F49390

KEY - 3/8" x 3/8" x 4-1/2"

1шт.

3

F49370

BELT

Vari-Speed

1шт.

F49938

VARI-PULLEY ASSEMBLY

1шт.

4

F61506

VARI-PULLEY - 2 halves

1шт.

SCREW - set 3/8"-16 x 3/8" nylok

1шт.

83-64

SET SCREW,Hex Soc, 3/8"-16 x 1/4"

SCREW - set 3/8"-16 x 1/4" cup pt.

1шт.

5

F49937

COLLAR - idler (With bushing)

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

7

F49939

SNAP RING

1шт.

8

F49633

KEY

2шт.

9

165-21

SCREW,#10 - 24 x 1/2"

- #10-24 x 1/2" socket hd.

4шт.

10

F49638

LOCKWASHER - 3/16" int. Shakeproof

4шт.

11

F49940

SNAP RING

1шт.

12

F49941

BEARING - thrust

1шт.

13

F49942

SNAP RING

1шт.

14

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

3шт.

15

F49943

SHAFT - thrust

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.
