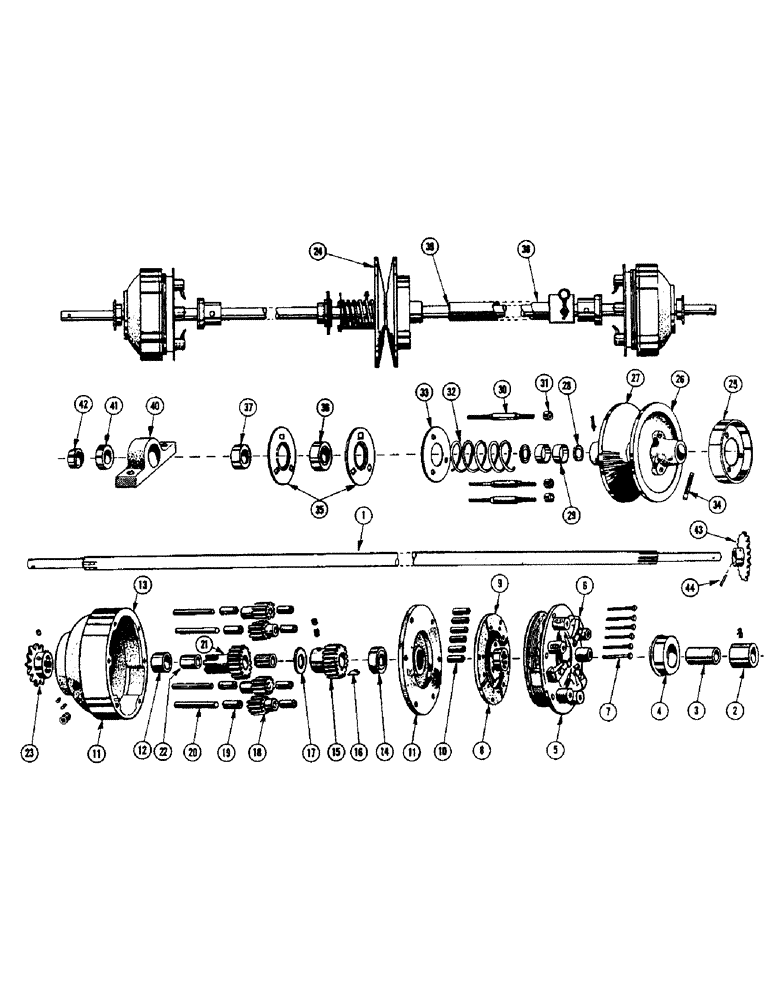

Запчасти Case IH 856 (18) - PLANETARY STEERING

F49367

PLANETARY DRIVE - (Main drive assembly)

1шт.

1

F49628

MAIN SHAFT

1шт.

2

F49594

COLLAR - clutch release, assy.

2шт.

3

F49595

BUSHING

1шт.

F49596

SEAL - (Not shown)

2шт.

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

4

F49612

BEARING - clutch throw-out

1шт.

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- 1/2" x 3/4" N.F. hex.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

5

F49619

PRESSURE PLATE

2шт.

6

F49766

KIT - finger and pin repair (3 fingers and pins)

1шт.

F49783

KIT - set of 6 springs

1шт.

7

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

12шт.

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

12шт.

8

F49616

SEAL, GLASS

CLUTCH DISC

2шт.

9

F49767

KIT - clutch lining and rivet repair

1шт.

10

F49617

SPACER

12шт.

11

F49607

GEAR CASE AND COVER ASSEMBLY

2шт.

12

F49608

BUSHING

1шт.

13

F49609

GASKET

1шт.

14

F19545

BEARING, BALL

BEARING

1шт.

PLUG - filler, 3/8" hex. socket

2шт.

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, 1/4" x 3/8" N.C. cup pt.

8шт.

15

F49620

GEAR - final drive (25T)

2шт.

16

F49621

KEY - #808 Woodruff

2шт.

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16" x 3/8" N.C. cup pt.

2шт.

17

F49622

WASHER - thrust

2шт.

18

F49614

GEAR ASSEMBLY

8шт.

19

F49599

BUSHING

2шт.

20

F49613

PIN - gear

8шт.

21

F49623

GEAR - power drive, assembly

2шт.

F49624

GEAR

1шт.

22

F59466

BUSHING

2шт.

A28211

OIL SEAL

- (Not shown)

1шт.

23

F49611

SPROCKET - (13T)

2шт.

24

F49597

PULLEY - variable drive, assembly

1шт.

25

F49598

DRUM - brake

1шт.

26

NSS

NOT SOLD SEPARAT

PULLEY - fixed half

1шт.

27

NSS

NOT SOLD SEPARAT

PULLEY - sliding half

1шт.

28

F49596

SEAL

2шт.

29

F49600

BUSHING

2шт.

30

F40604

BOLT

3шт.

31

F49599

BUSHING

3шт.

NUT - 3/8" N.C. hex. self lock

3шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

3шт.

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .94" lg

1шт.

32

F49602

SPRING - tension

1шт.

33

F49603

PLATE - tension spring

1шт.

34

135-379

PULLEY

PLATE - groove 3/8" x 2-1/4"

1шт.

35

F62225

FLANGE

- bearing

2шт.

36

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

37

F62226

COLLAR

1шт.

38

F49606

ACTUATOR - steering

1шт.

39

F59342

BUSHING

1шт.

40

F49368

BEARING - pillow block

2шт.

41

3074CSA

BALL BEARING

1шт.

42

F62108

COLLAR

1шт.

43

F49373

SPROCKET - (14T)

1шт.

44

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.
