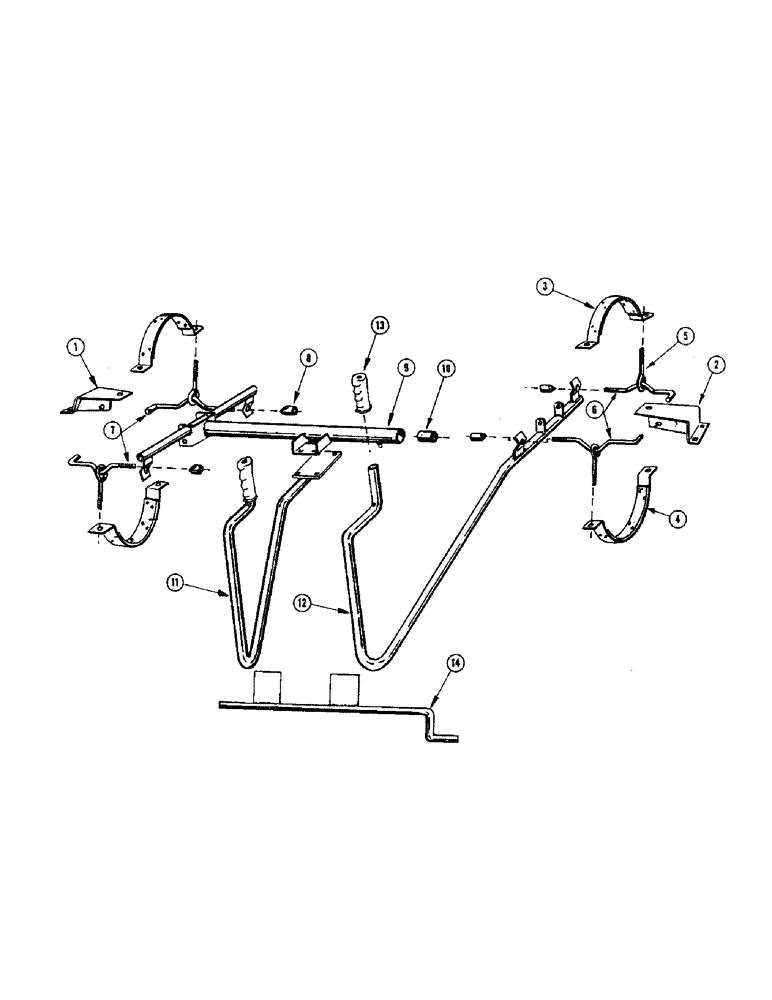

Запчасти Case IH 856 (14) - STEERING CONTROLS

1

F49377

BRACKET - R.H.

1шт.

2

F49376

BRACKET - L.H.

1шт.

11-724

BOLT (SPREADER),Short NK, 7/16"-14 x 1 1/2", G2

BOLT - 7/16" x 1-1/2" rhd. sq. nk.

4шт.

92-7

LOCK WASHER,7/16"

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

3

F49378

BAND - steering

4шт.

4

F49498

KIT

- steering band repair (1 segment, 4 rivets)

1шт.

11-716

BOLT (MACHINE)

BOLT - 7/16" x 1" rhd. sq. nk.

4шт.

92-7

LOCK WASHER,7/16"

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

5

F49379

EYEBOLT

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

92-6

LOCK WASHER,3/8"

4шт.

6

F49381

ROD - L.H. declutching

2шт.

7

F49380

ROD - R.H. declutching

2шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

4шт.

8

F49473

BLOCK - pivot

4шт.

9

F49606

ACTUATOR - steering

1шт.

10

F59342

BUSHING

1шт.

11

F49474

LEVER - R.H. steering

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

92-5

LOCK WASHER,5/16"

4шт.

12

F49472

LEVER - L.H. steering

1шт.

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- 1/2" x 3/4" N.F. hex.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

13

F49475

GRIP - hand

2шт.

14

F49458

LATCH - neutral

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.
