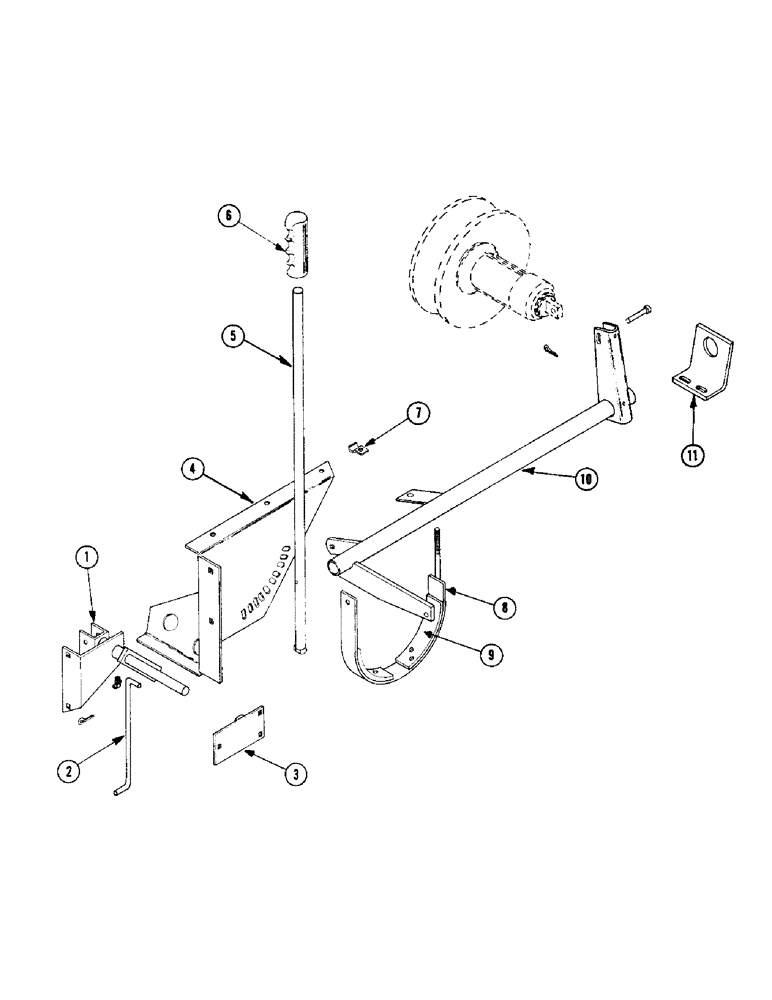

Запчасти Case IH 855 (12) - VARIABLE SPEED LINKAGE

1

F49442

SHAFT - pivot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4"-28 strt.

1шт.

2

F49444

LINK - variable speed

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

3

F49443

BRACKET - pivot shaft bearing

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4"-28 strt.

1шт.

4

F49433

QUADRANT

1шт.

5

F49411

LEVER - variable speed control

1шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

F49475

GRIP - lever, hand

1шт.

7

F49457

CLIP - cable

1шт.

8

F49471

BAND - parking brake

1шт.

9

F49502

KIT - band repair (Contains 2 linings, 8 rivets)

1шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" rhd. sq. nk.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

2шт.

92-7

LOCK WASHER,7/16"

1шт.

10

F49469

TUBE

- variable pulley torque (Before #8360701)

1шт.

10

F49936

TUBE - variable pulley torque (#8360701 and after)

1шт.

11

F49470

BRAKCET - pivot

1шт.
