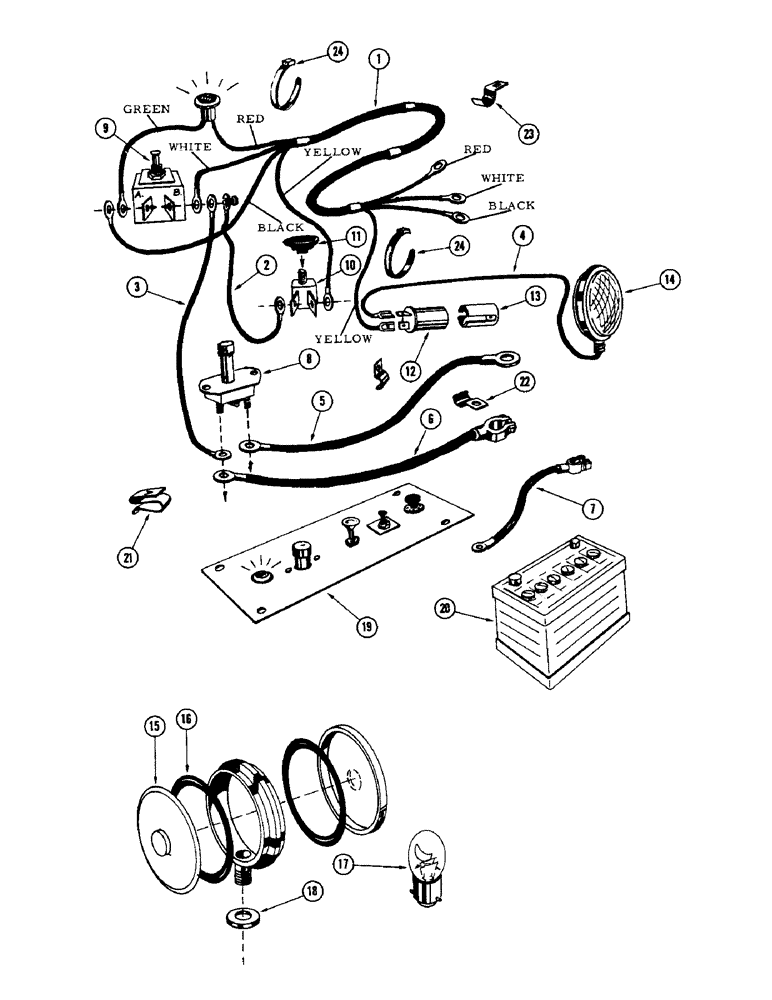

Запчасти Case IH 855 (10) - ELECTRICAL SYSTEM

1

F49450

HARNESS - wire

1шт.

BLACK - coil to ign. switch A term.

1шт.

WHITE - regulator B term. to ign. switch B term.

1шт.

RED - regulator A term.

1шт.

YELLOW - flasher to flasher switch

1шт.

GREEN - ign switch A term.

1шт.

2

F49763

WIRE - ignition switch to flasher switch

1шт.

3

F49666

WIRE - ignition switch to starter button

1шт.

4

F49584

WIRE - flasher to flasher lamp

1шт.

5

F49455

CABLE - starter, Serial Range: button-starter

1шт.

6

A21486

CABLE

- starter, Serial Range: button-battery

1шт.

7

F49434

CABLE - battery ground

1шт.

8

F49451

BUTTON - starter

1шт.

9

F49453

SWITCH - ignition

1шт.

10

A10942

KIT

SWITCH - flasher

1шт.

11

F23376

KNOB - flasher switch

1шт.

12

A34867

FLASHER UNIT

FLASHER

1шт.

13

A34869

BRACKET

- flasher

1шт.

14

A34853

LAMP

- flashing

1шт.

15

A41261

LENS

2шт.

16

A41262

O-RING,3.484" ID x 0.139"

RING - retaining

2шт.

17

A41264

BULB,#1156, 12V

32 C. P. #1156, 12V

1шт.

18

A41263

GASKET

1шт.

19

F49449

PANEL - instrument

1шт.

20

M20645

BATTERY

- 12 volt

1шт.

21

F49586

CLIP - wire

2шт.

22

F49457

CLIP - battery cable

2шт.

23

F49456

CLIP - harness

1шт.

F49780

CLIP - wire, flasher, Serial Range: wire-rail

1шт.

24

F49782

STRAPS - tie

2шт.
