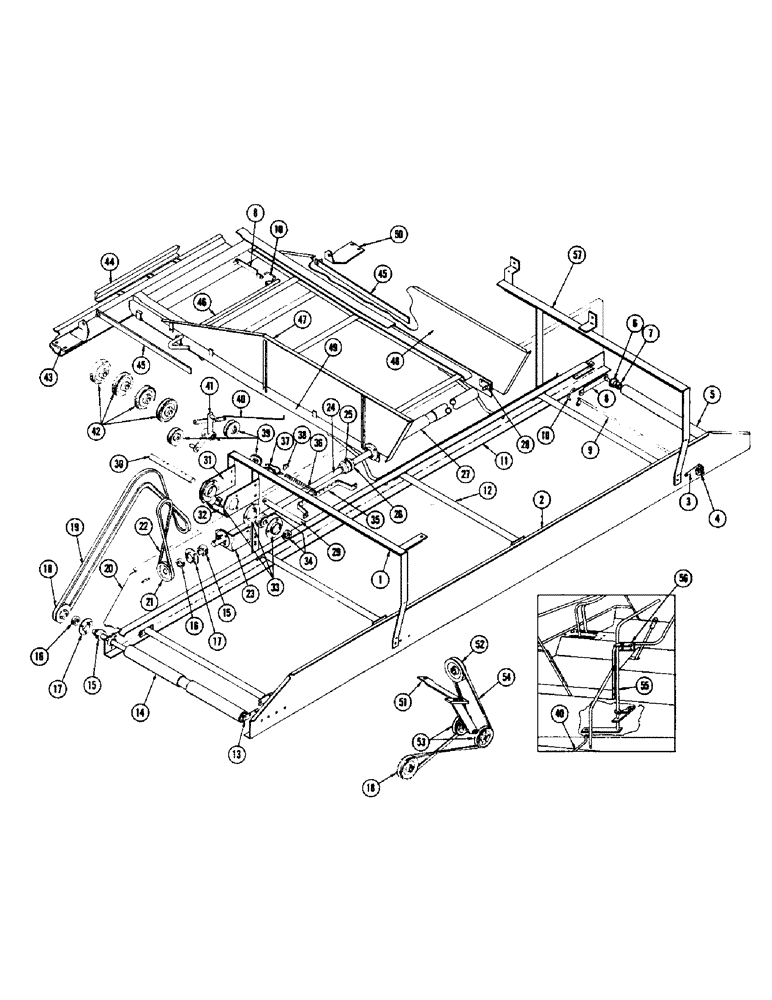

Запчасти Case IH 855 (61A) - DOUBLE SWATH ATTACHMENT

1

F49967

FRAME - L.H. mounting

1шт.

2

F49995

GUIDE - rear, rear deck 12'

1шт.

F49996

GUIDE - rear, rear deck 14'

1шт.

F59743

GUIDE - rear, rear deck 16'

1шт.

3

F59759

LOCK ARM

1шт.

4

F59758

RATCHET

1шт.

135-138

GROOVED PIN,3/16" x 5/8", Type A, Hardened

ROLL PIN

1шт.

5

F49236

ROLLER - tube, idler

2шт.

6

F59928

RETAINER

- bearing

5шт.

6

F59928

RETAINER

BEARNING - bearing

5шт.

7

40009

BEARING

5шт.

8

F49802

IDLER - roller carrier

2шт.

9

F59757

ROD - draper tightener

1шт.

10

F59231

LINK - tension

4шт.

11

F49992

GUIDE - front, rear deck 12'

1шт.

F49993

GUIDE - front, rear deck 14'

1шт.

F49994

GUIDE - front, rear deck 16'

1шт.

12

F59744

BRACE - cross (3) 12', (4) 14' & 16'

1шт.

13

F59377

CARRIER - drive roller

1шт.

14

F49976

DRIVE ROLLER - C/W sleeve

1шт.

15

B10700

BEARING ASSY,0.7505" ID x 1.8504" OD x 1.219"

BEARING - C/W collar

3шт.

16

T10662

COLLAR

1шт.

17

FB10496

FLANGE

6шт.

18

F59780

PULLEY - drive

2шт.

19

F61299

BELT - 12' and 14'

1шт.

F61300

BELT - 16'

1шт.

20

F61301

SHIELD - front, rear conveyor 12' or 14'

1шт.

F61302

SHIELD - front, rear conveyor 16'

1шт.

21

F61505

PULLEY - speed reduction, conveyor

1шт.

22

F49406

BELT

1шт.

23

F49983

PLATE - bearing

1шт.

24

F49963

SHAFT - conveyor drive

1шт.

F59462

KEY

3шт.

25

F49991

COUPLING - flexible

1шт.

26

F59736

SHAFT

1шт.

27

F59735

DRIVE ROLLER - c/w sleeve

1шт.

28

F49212

CARRIER

- drive roller

1шт.

29

F49964

BRACE - L.H. diagonal

1шт.

30

F49968

SHAFT - main drive

1шт.

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

4шт.

31

F49970

PLATE - bearing

1шт.

32

F49971

PLATE - bearing

1шт.

33

F62225

FLANGE

4шт.

34

F49969

BEARING - C/W collar

2шт.

COLLAR

2шт.

35

F49985

ANCHOR - spring

1шт.

36

F59784

SPRING

1шт.

37

F59728

YOKE - belt tightener

1шт.

38

F59729

PIN - pivot

1шт.

39

F59778

IDLER - C/W bushing

3шт.

F59782

BUSHING

1шт.

F59755

WASHER

2шт.

40

F49965

LINK - control rod

1шт.

41

F49973

BRACKET - reversing C/W bushing

1шт.

F59783

BUSHING

1шт.

42

F49972

PULLEY

4шт.

43

F49998

BRACKET - front mounting, R.H., 12'

1шт.

F61296

BRACKET - front mounting, R.H., 14'

1шт.

F61298

BRACKET - front mounting, R.H., 16'

1шт.

44

F61303

SHIELD - windrow opening 12' and 14'

1шт.

F61304

SHIELD - windrow opening 16'

1шт.

45

F49927

BAR - front support

2шт.

46

F49979

LEVER - draper tightener

1шт.

47

F49929

SHIELD - L.H. conveyor

1шт.

48

F49930

SHIELD - R.H. conveyor

1шт.

49

F49977

CONVEYOR - 12'

1шт.

CT1864S

X

COTTER - hair pin

4шт.

50

F49997

BRACKET - front mounting L.H., 12'

1шт.

F49999

BRACKET - front mounting L.H., 14'

1шт.

F61297

BRACKET - front mounting L.H., 16'

1шт.

51

F49974

BRACKET - belt tightener

1шт.

52

F49990

PULLEY

1шт.

F49980

KEY

1шт.

55

F49966

LEVER - engaging

1шт.

56

F49987

BRACKET - pivot

1шт.

F49984

"U" BOLT - pivot bracket

2шт.

57

F49962

FRAME - mounting, R.H.

1шт.

F59748

DRAPER - front conveyor

1шт.

F61305

DRAPER - rear conveyor, 12'

1шт.

F61306

DRAPER - rear conveyor, 14'

1шт.

F59749

DRAPER - rear conveyor, 16'

1шт.

F59761

SLAT - connector

2шт.

F49683

SCREW - w/nut and lockwasher 1/2 lb. pkg.

1шт.

F59762

SLAT - wood (19-12', 23-14', and 28-16')

1шт.

F49684

RIVET

S AND BURRS - 1/2 lb. pkg.

1шт.

F49685

STAPLE

S - 1/2 lb. pkg.

1шт.
