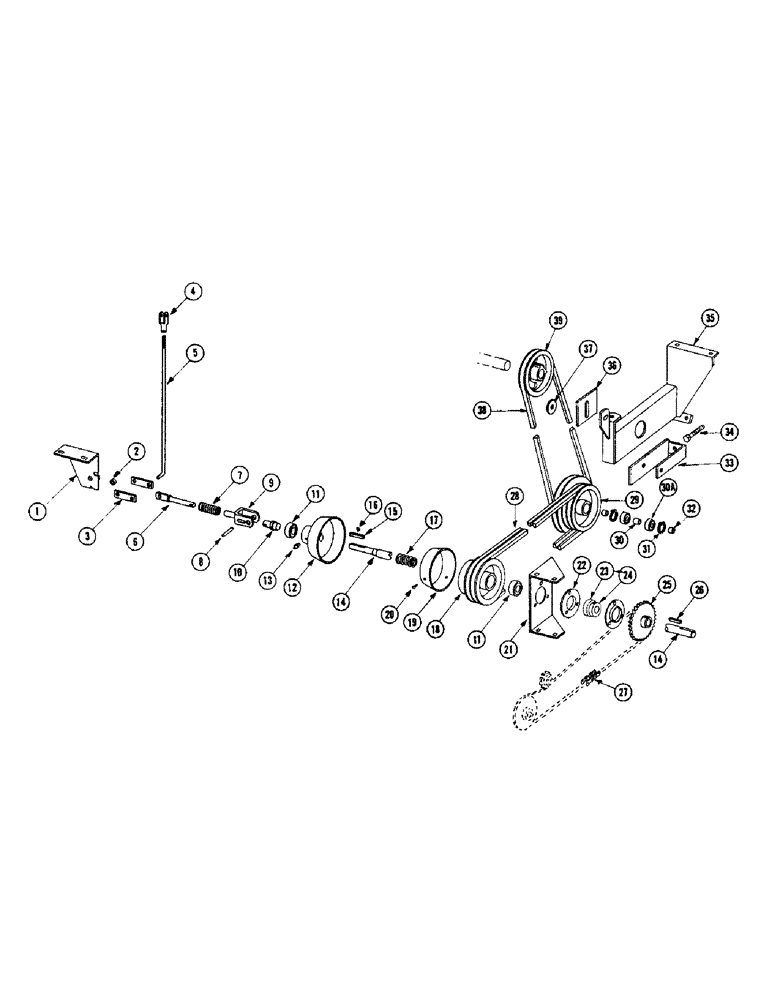

Запчасти Case IH 855 (60) - HAY CONDITIONER DRIVE

1

F49532

BRACKET - clutch tension

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

2

F49533

SPACER

1шт.

3

F49534

LINK - tension

2шт.

4

F49479

YOKE - clevis

1шт.

5

F49540

ROD - control

1шт.

6

F49529

PIN - tension link

1шт.

7

F49530

SPRING

1шт.

8

135-360

PULLEY

PIN - 1/4" x 1-3/4" roll

1шт.

9

F49528

YOKE - tension link

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

F49522

PLUG - engaging

1шт.

11

F49518

BEARING

2шт.

12

F49520

CUP - clutch

1шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4"-29 str.

1шт.

14

F49514

SHAFT - main drive

1шт.

15

F49523

KEY - 1/4" x 1/4" x 2-1/4" drilled

1шт.

16

135-323

PIN - roll, 1/8" x 3/8"

1шт.

17

F49519

SPRING

1шт.

18

F49515

PULLEY AND CLUTCH CONE

1шт.

19

F49516

LINGE - clutch

1шт.

20

F49517

RIVET - 5/32" x 15/32"

3шт.

21

F49513

BRACKET - drive shaft support

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

4шт.

22

T17277

FLANGE

- bearing

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

23

F49351

BEARING

2шт.

24

O885CB

COLLAR

1шт.

25

F49525

SPROCKET - 28T

1шт.

26

F49526

KEY - tapered, 5/16" x 1/4" x 1-1/2"

1шт.

27

F49564

CHAIN - drive (See chain page)

1шт.

28

F49527

BELTS - drive (Matched set of two)

1шт.

29

F49574

PULLEY - 3 groove idler

1шт.

30

F49575

SPACER

1шт.

30a

40009

BEARING

2шт.

31

F49643

SNAP RING

2шт.

32

F49579

SPACER

2шт.

33

F49573

YOKE - idler pulley

1шт.

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" N.C. hex.

1шт.

34

F49580

BOLT

1шт.

195-33

WASHER,1/2"

- flat SAE 17/32" I.D.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

35

F49572

SUPPORT - idler

1шт.

36

F49578

PLATE

1шт.

37

F49577

WASHER

1шт.

38

F49583

BELT

1шт.

39

F49581

PULLEY - drive (VG4D engine)

1шт.

39

F49582

PULLEY - drive (VH4D engine)

1шт.

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. sq. hd. set

2шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

2шт.
