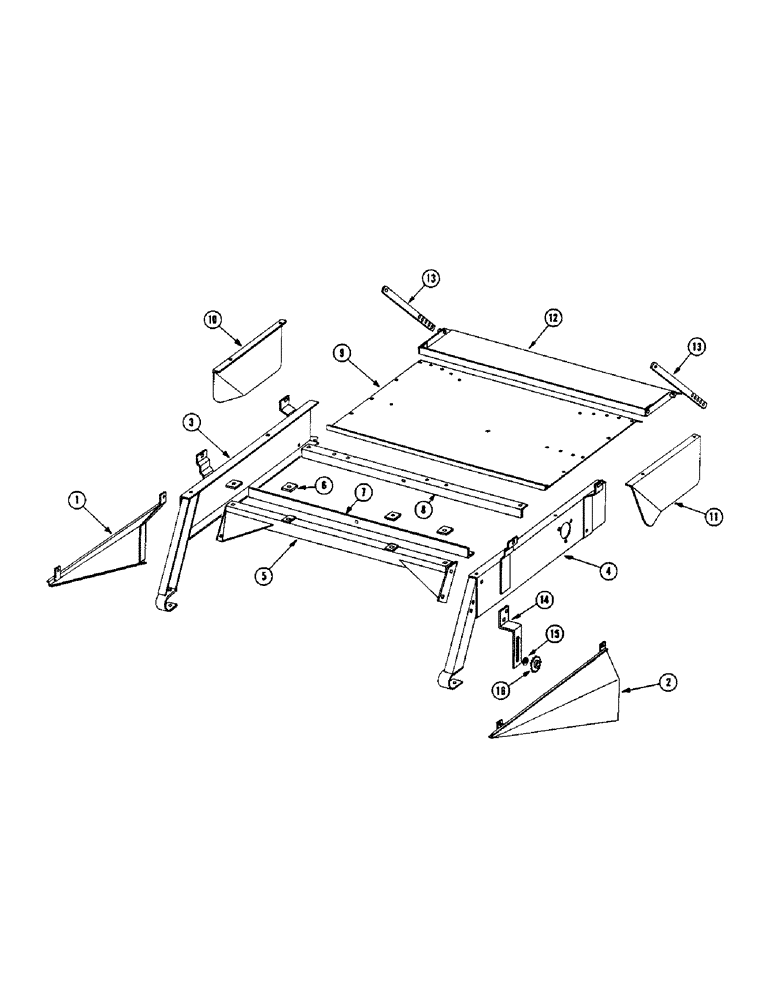

Запчасти Case IH 855 (56) - HAY CONDITIONER, UPPER UNIT

1

F49567

DEFLECTOR - R.H. windrow opening

1шт.

2

F49568

DEFLECTOR - L.H. windrow opening

1шт.

3

F49504

FRAME - R.H. hanger

1шт.

4

F49505

FRAME - L.H. hanger

1шт.

5

F49506

CROSS MEMBER - front

1шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- 1/2" x 1-1/2" rhd. sq. nk.

4шт.

6

F49535

CLAMP

4шт.

11-828

BOLT (MACHINE)

BOLT - 1/2" x 1-3/4" rhd. sq. nk.

4шт.

7

F49512

CROSS MEMBER - lower

1шт.

8

F49511

CROSS MEMBER - upper

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

4шт.

9

F49510

SHIELD - windrow

1шт.

10

F49536

DEFLECTOR - R.H.

1шт.

11

F49537

DEFLECTOR - L.H.

1шт.

12

F49538

DEFLECTOR - rear

1шт.

13

F49539

LINK - deflector adjusting

2шт.

14

F49507

BRACKET - idler

1шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- 1/2" x 1-1/2" rhd. sq. nk.

1шт.

15

F49509

WASHER

1шт.

16

F49508

SPROCKET - idler C/W bearing

1шт.

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BEARING

1шт.

F59218

SNAP RING

2шт.

11-1040

BOLT (MACHINE)

BOLT - 5/8" x 2-1/2" rhd. sq. nk.

1шт.

195-41

WASHER,5/8"

2шт.
