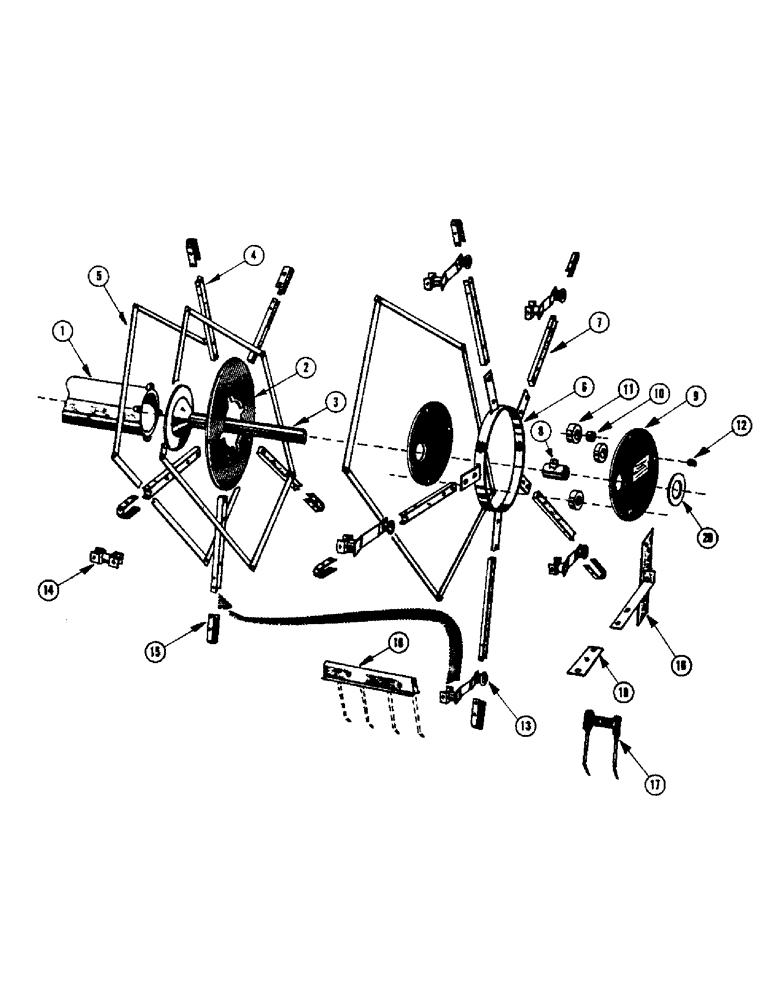

Запчасти Case IH 855 (54) - PICK-UP REEL, SERIAL NUMBER 8360701 AND AFTER

1

F49702

TUBE - reel, 10 ft.

1шт.

1

F49703

TUBE - reel, 12 ft.

1шт.

1

F49704

TUBE - reel, 14 ft.

1шт.

1

F49705

TUBE - reel, 16 ft.

1шт.

2

F49706

DISC - reel arm

3шт.

3

F49721

END - reel, L.H.

1шт.

F49722

END - reel, R.H. (Not shown)

1шт.

4

F49717

ARM - reel, wood 15-5/8"

15шт.

5

F49707

BRACE

40шт.

6

F49709

CONTROL - cam

2шт.

7

F49708

ARM - cam, wood 13-1/8"

10шт.

8

F49710

BEARING - cam main

2шт.

9

F49711

PLATE - cam

4шт.

10

F49712

BUSHING - spacer

6шт.

11

F49713

ROLLER - cam, nylon

6шт.

12

G50050

BUSHING - spacer

2шт.

13

F49715

ARM - control

10шт.

14

F49718

JOURNAL - center

5шт.

15

F49716

STRAP - bearing

25шт.

16

F49719

BRACKET - pitch adjusting, L.H.

1шт.

F49720

BRACKET - pitch adjusting, R.H. (Not shown)

1шт.

17

F49727

FINGER

- dbl. (60-10', 70-12', 90-14', 90-16')

1шт.

18

F49723

BAT - reel, 10 ft. (Finger type)

10шт.

18

F49724

BAT - reel, 12 ft. (Finger type)

10шт.

18

F49726

BAT - reel, 14 ft. (Finger type)

10шт.

18

F49725

BAT - reel, 16 ft. (Finger type)

10шт.

19

F59298

CAP - bearing

2шт.

20

F49692

WASHER

- flat

5шт.
