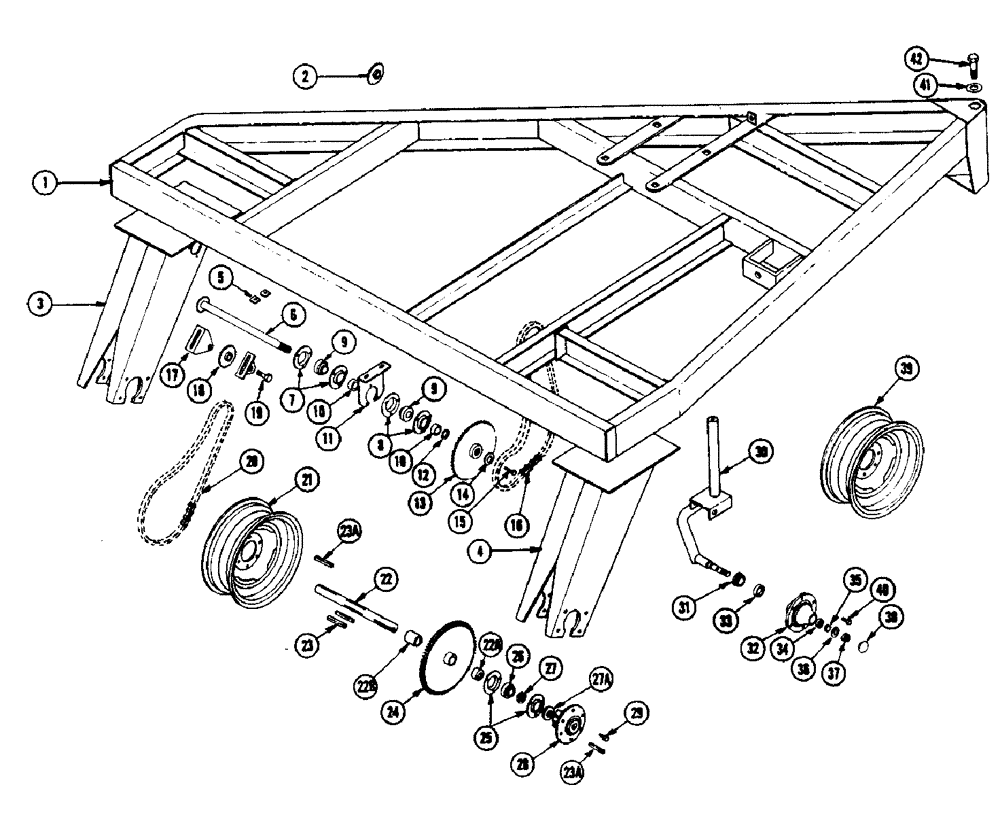

Запчасти Case IH 855 (04) - MAIN FRAME

1

F49235

FRAME - tractor

1шт.

2

F49363

SPROCKET - idler, secondary drive

2шт.

3

F49317

LEG - R.H.

1шт.

4

F49318

LEG - L.H.

1шт.

5

F49334

WASHER - bevel

16шт.

6

F49347

SHAFT - secondary drive w/60T sprocket

2шт.

7

F49349

FLANGE - bearing (Cropped)

4шт.

8

T17277

FLANGE

- bearing

4шт.

9

F49351

BEARING

4шт.

10

O885CB

COLLAR

1шт.

11

F49348

HANGER - bearing

2шт.

12

F49352

WASHER - spacer

2шт.

13

F49353

SPROCKET - secondary drive (68T)

2шт.

14

F49592

WASHER

2шт.

15

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

16

F49371

CHAIN - secondary drive (See chain page)

2шт.

17

F49345

BRACKET - chain tightener

4шт.

18

TB16335

SPROCKET ASSY.

SPROCKET - idler, drive chain

2шт.

19

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

20

F49354

CHAIN - final drive (See chain page)

2шт.

21

F49267

WHEEL - for 7.60 X 15 tire

2шт.

22

F61532

AXLE - (#8331750 and after)

2шт.

22a

F49931

SPACER - outer (Use w/F61532)

2шт.

22b

F49932

SPACER - inner (Use w/F61532)

2шт.

22

F49861

AXLE - (Before #8331750)

2шт.

22a

F49863

SPACER - outer (Used with F49861)

2шт.

22b

F49864

SPACER - inner (Used with F49861)

2шт.

23

O8065HT1

KEY - sprocket

4шт.

23a

O134T

KEY - wheel hub (#8331750 and after)

4шт.

24

F49338

SPROCKET

- wheel drive (58T)

2шт.

85-716

SET SCREW

SCREW - 7/16" x 1" N.C. sq. hd. cup pt. set

4шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

- 7/16" N.C. hex. light jam

4шт.

25

F8944

FLANGE

- bearing

8шт.

26

F49335

BEARING

4шт.

27

F62107

COLLAR

1шт.

27a

F49950

WASHER

2шт.

28

F49340

HUB - wheel (#8331750 and after)

4шт.

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - 3/8" x 3/8" N.C. hex. socket cup pt. set

4шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex.

8шт.

28

F49862

HUB - wheel (Before #8331750)

4шт.

29

F49342

BOLT - wheel

10шт.

30

F49238

SHAFT - tail wheel

1шт.

31

T17079

CUP

BEARING - inner, with seal

1шт.

32

F49239

HUB - wheel, with cups

1шт.

33

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner

1шт.

34

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer

1шт.

35

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer

1шт.

36

195-45

WASHER,3/4"

1шт.

37

A26597

NUT

- 3/4" N.F. hex. slotted

1шт.

38

G37046

KIT

CAP - dust

1шт.

39

F49267

WHEEL - for 5.90 X 15 tire

1шт.

40

F49342

BOLT - wheel

5шт.

41

F49816

WASHER

1шт.

42

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.
