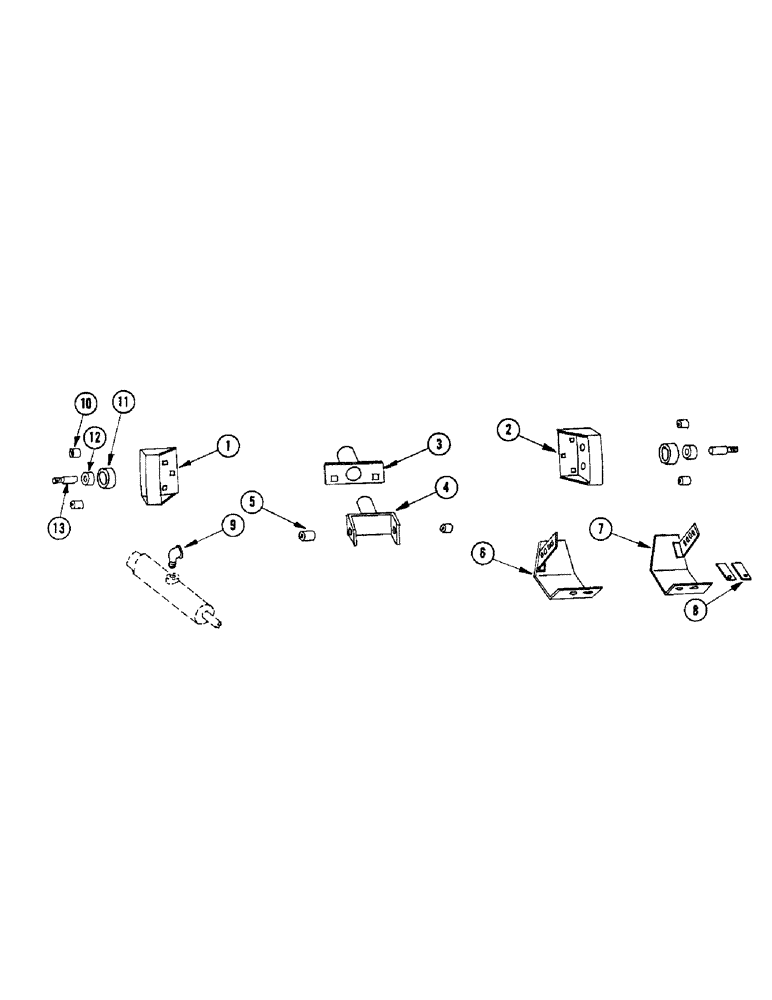

Запчасти Case IH 855 (46) - CONTOUR FLEX FLOTATION ATTACHMENT

1

F49734

RAIL - R.H. guide

1шт.

2

F49735

RAIL - L.H. guide

1шт.

3

F49728

BEARING - table pivot

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

2шт.

4

F49729

PIVOT - table

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

5

F49730

BUSHING

2шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

195-41

WASHER,5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

F49737

SHOE - R.H. SKID SHOE ATTACHMENT

1шт.

7

F49736

SHOE - L.H.. SKID SHOE ATTACHMENT

1шт.

8

F49738

CLIP - retaining SKID SHOE ATTACHMENT

4шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" rhd. sq. nk.

4шт.

11-720

BOLT (MACHINE),Short NK, 7/16"-14 x 1 1/4", G2

BOLT - 7/16" x 1-1/4" rhd. sq. nk.

2шт.

9

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

10

F49739

SPACER

4шт.

11

F49731

ROLLER - guide

2шт.

12

F49732

BUSHING

1шт.

13

F49733

PIN - roller

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
