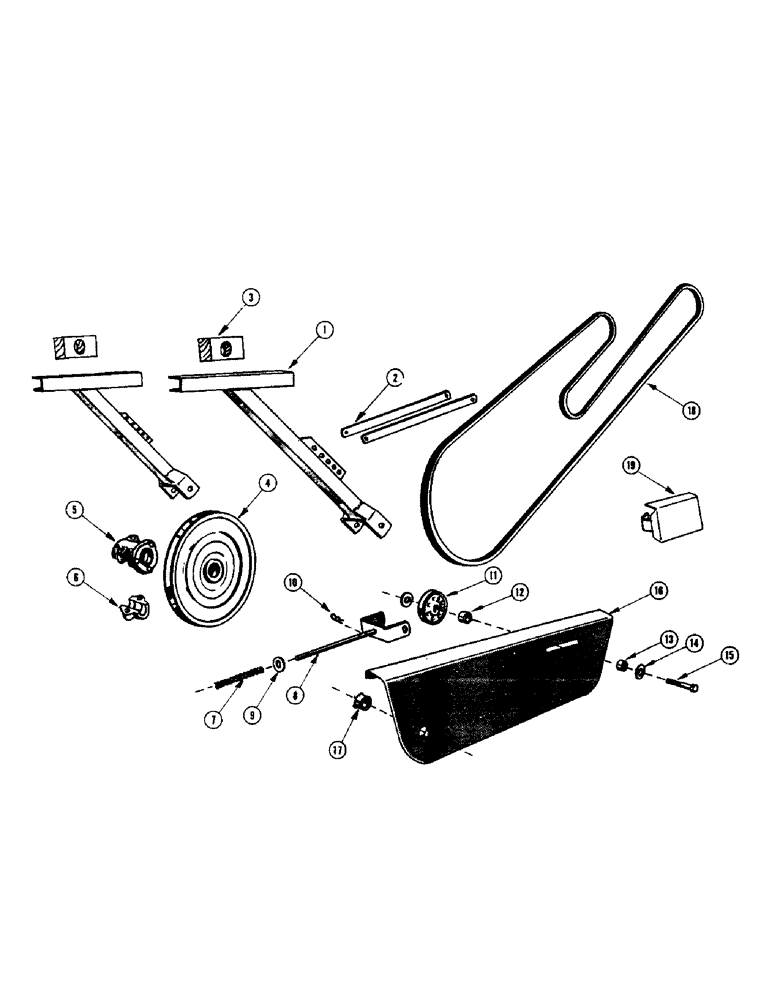

Запчасти Case IH 855 (40) - REEL DRIVE AND SUPPORTS

1

F49281

ARM - reel support

2шт.

132-155

PIN

- cotter, 1/4" x 2-1/2"

2шт.

2

F49282

LINK - connector

4шт.

PIN - clevis, 5/8" x 1-1/8"

3шт.

PIN - clevis, 5/8" x 2-3/4"

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

4шт.

3

F59535

BLOCK

BEARING - reel shaft, wood

2шт.

11-672

BOLT (MACHINE)

BOLT - 3/8" x 4-1/2" rhd. sq. nk.

4шт.

25-106

NUT,3/8"-16, G5

- 3/8"

4шт.

92-6

LOCK WASHER,3/8"

4шт.

4

F59527

PULLEY - reel, 18"

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

92-5

LOCK WASHER,5/16"

3шт.

5

F59536

HUB - reel pulley

1шт.

6

F59537

CLAMP - reel pulley

1шт.

11-640

BOLT (MACHINE)

BOLT - 3/8" x 2-1/2" rhd. sq. nk.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

7

F49309

SPRING

1шт.

8

F49308

GUIDE - tightener

1шт.

9

195-29

WASHER,7/16"

- flat 15/32" I.D.

1шт.

10

F49310

COTTER - hair pin

1шт.

11

FHO53512

X

PULLEY - v-idler

1шт.

12

F49312

SPACER - 17/32"

1шт.

13

F49313

SPACER - 7/32"

1шт.

14

195-33

WASHER,1/2"

- flat, 17/32" I.D.

2шт.

15

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

16

F49306

SHIELD - reel drive

1шт.

17

F49307

BUSHING

1шт.

18

F49325

BELT - reel drive

1шт.

19

F49314

SHIELD - reel drive

1шт.
