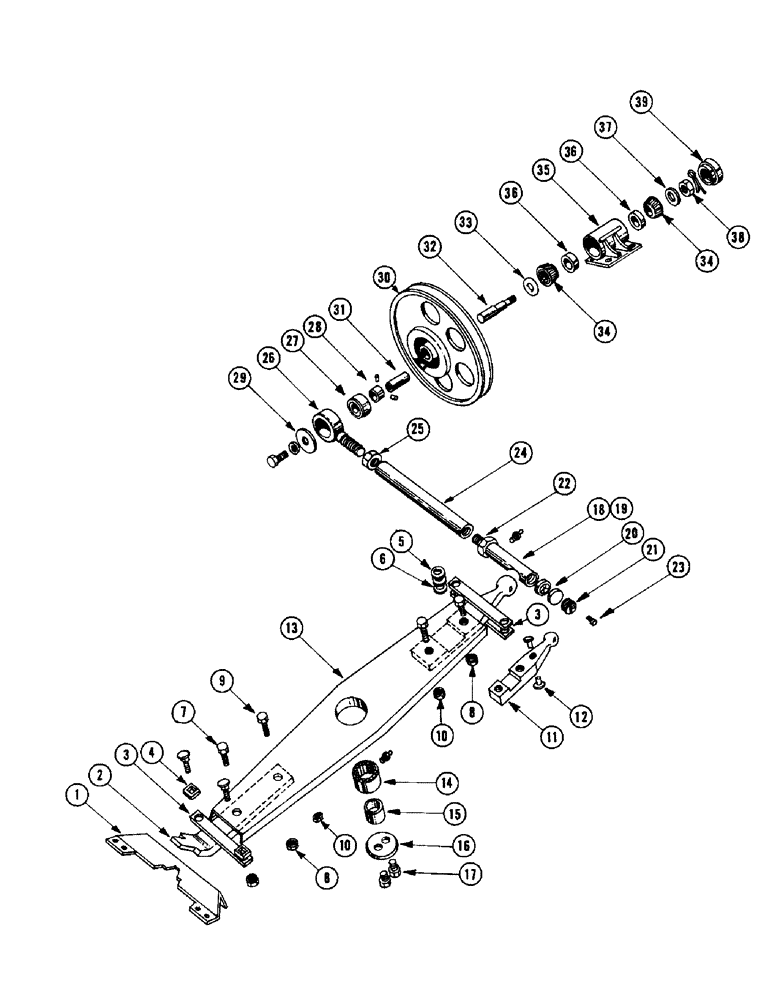

Запчасти Case IH 855 (38) - SICKLE DRIVE

1

F49183

SHIELD - swaybar opening

1шт.

2

F49231

ARM - lower, swaybar

1шт.

3

F49223

PLATE - wear

3шт.

4

F59461

SPACER

2шт.

5

F59528

SHIM - spacer

8шт.

6

195-25

WASHER,3/8"

- flat 13/32" I.D.

20шт.

7

F59524

CAPSCREW - 5/8" x 1-1/8" N.F.

2шт.

8

131-13

LOCK NUT,5/8"-18, GB

LOCKNUT - 5/8"

2шт.

9

F59523

CAPSCREW - 1/2" x 1-1/4" N.F.

2шт.

10

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

LOCKNUT - 1/2" N.F. hex.

2шт.

11

F49232

ARM - upper, swaybar

1шт.

12

F49237

BUTTON

- wear

2шт.

13

F49226

SWAYBAR

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4"-28 strt.

1шт.

14

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING

1шт.

15

F59479

SLEEVE

- pivot bearing

1шт.

16

F49229

PLATE - thrust

1шт.

17

F49230

CAPSCREW - 5/16" x 5/8" N.C. Nyloc

2шт.

18

F59809

PITMAN END ASSEMBLY

1шт.

19

F49678

HOUSING

1шт.

20

F59810

SEAT - ball

2шт.

21

F59949

PLUG - adjusting

1шт.

22

F59948

STUD

1шт.

23

61-410

HEX SOC SCREW,1/4"-20 x 5/8"

SCREW - socket hd. 1/4" x 5/8" N.C.

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4"-28 strt.

1шт.

24

F49240

TUBE - pitman, 10 ft., 12 ft. header1

1шт.

24

F49241

PITMAN

TUBE - pitman, 14 ft., 16 ft., 20 ft. headers

1шт.

25

F59770

NUT - jam 3/4" N.F. hex.

1шт.

26

F59769

BEARING ASSEMBLY

1шт.

27

F90306

BEARING ASSY

BEARING

1шт.

28

O4233CS

COLLAR

1шт.

29

F49492

WASHER

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

30

F49485

SHEAVE - Pitman

1шт.

31

F49668

PIN - collar

1шт.

32

F49667

SPINDLE

1шт.

83-65

SET SCREW,Hex Soc, 3/8"-16 x 5/16"

- 5/16" N.C. x 3/8" cup pt.

1шт.

33

F49486

SEAL - grease

1шт.

34

F49487

CONE - bearing

2шт.

35

F49488

HOUSING - crank bearing

1шт.

36

W10153S

CUP

- bearing

2шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

37

F49490

WASHER - tongued

1шт.

38

A26597

NUT

- spindle, 3/4" N.F. slotted

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

39

F49491

CAP - dust

1шт.
