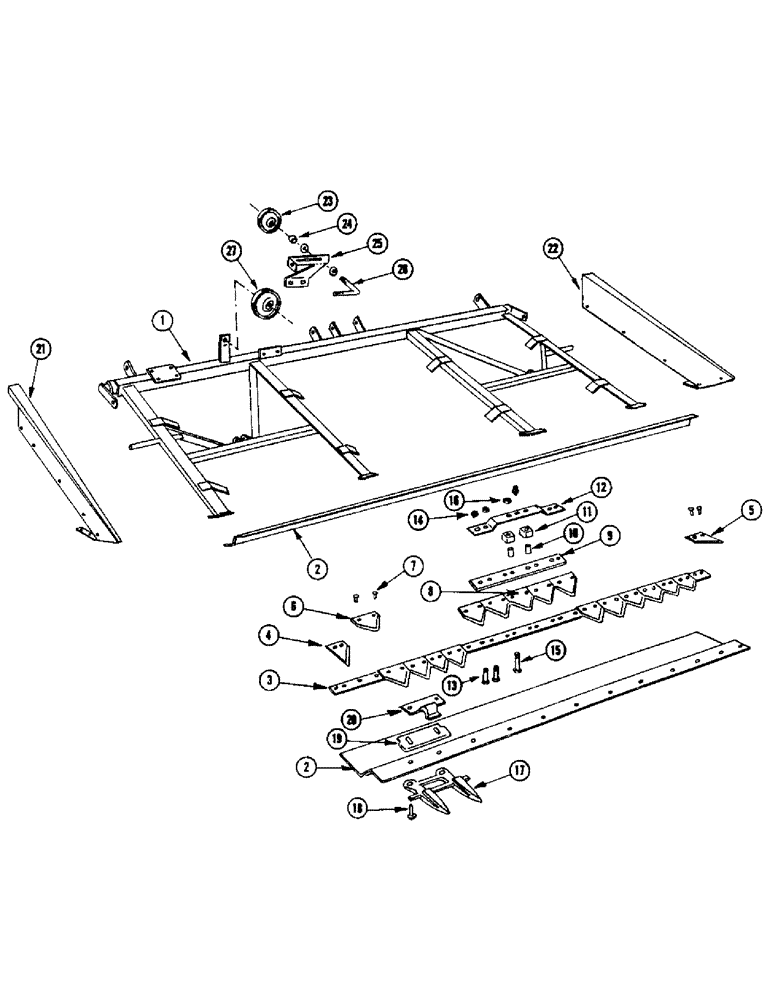

Запчасти Case IH 855 (34) - HEADER FRAME AND SICKLE

1

F49151

FRAME - header, 10 ft.

1шт.

1

F49152

FRAME - header, 12 ft.

1шт.

1

F49153

FRAME - header, 14 ft.

1шт.

1

F49154

FRAME - header, 16 ft.

1шт.

1

F49155

FRAME - header, 18 ft.

1шт.

1

F49156

FRAME - header, 20 ft.

1шт.

2

F49157

CUTTER BAR - 10 ft.

1шт.

2

F49158

CUTTER BAR - 12 ft.

1шт.

2

F49159

CUTTER BAR - 14 ft.

1шт.

2

F49160

CUTTER BAR - 16 ft.

1шт.

2

F49161

CUTTER BAR - 18 ft.

1шт.

2

F49162

CUTTER BAR - 20 ft.

1шт.

3

F49169

SICKLE - 10 ft. (Underserrated sections)

1шт.

3

F49170

SICKLE - 12 ft. (Underserrated sections)

1шт.

3

F49171

SICKLE - 14 ft. (Underserrated sections)

1шт.

3

F49172

SICKLE - 16 ft. (Underserrated sections)

1шт.

3

F49173

SICKLE - 18 ft. (Underserrated sections)

1шт.

3

F49174

SICKLE - 20 ft. (Underserrated sections)

1шт.

4

F49673

HALF SECTION - R.H.

1шт.

5

F49674

HALF SECTION - L.H.

1шт.

6

F49671

KNIFE SECTION

SECTION - underserrated (38-10', 46-12', 54-14', 62-16', 70-18', 78-20')

1шт.

7

F49672

RIVET

- rd. hd. .208 x 5/8" (76-10', 92-12', 108-14', 124-16' 140-18', 156-20')

1шт.

8

F49675

SECTION - center knife head

1шт.

9

F49178

STRAP - knife head bottom

1шт.

10

F59939

ROLLER

BUSHING - knife head

2шт.

11

F59493

BLOCK

- knife head

2шт.

12

F49177

STRAP - knife head top

1шт.

13

F49180

CAPSCREW - hex. hd. special

4шт.

14

F59495

LOCK NUT

LOCKNUT - 5/16" N.C.

4шт.

15

F49179

CAPSCREW - hex. hd. special

2шт.

16

131-802

LOCK NUT,5/16"-18

LOCKNUT

2шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4"-28 strt.

1шт.

17

F49163

GUARD

- double (20-10', 24-12', 28-14', 32-16', 36-18', 40-20')

1шт.

18

F49166

BOLT

GUARD BOLT - 7/16" x 1-1/2" (14-10', 18-12', 22-14', 26-16', 30-18', 34-20')

1шт.

18

F49167

BOLT

GUARD BOLT - 7/16" x 1-1/4" (24-10', 28-12', 32-14', 36-16', 40-18', 44-20')

1шт.

18

F49168

GUARD BOLT - 7/16" x 1"

2шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

- 7/16" N.C. hex. jam

2шт.

19

F49165

SUPPORT - knife (7-10', 9-12', 11-14', 13-16', 15-18', 17-20')

1шт.

20

F49164

CLIP - hold-down (7-10', 9-12', 11-14', 13-16', 15-18', 17-20')

1шт.

21

F49260

DIVIDER - R.H.

1шт.

22

F49261

DIVIDER - L.H.

1шт.

23

F52873

PULLEY

- flat idler

1шт.

24

F49270

WASHER - sq. hose

1шт.

25

F49268

BRACKET - idler, draper drive

1шт.

26

F49271

BRACKET - take up

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

195-41

WASHER,5/8"

3шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

27

N4721

PULLEY - flat idler

1шт.
