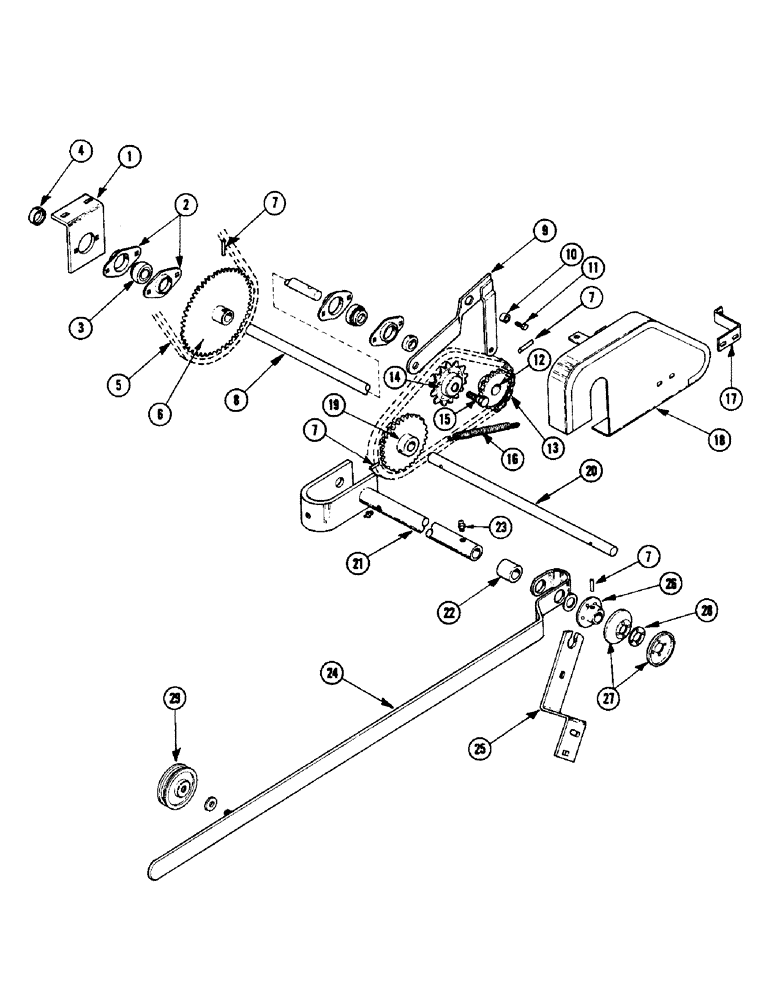

Запчасти Case IH 855 (30) - REEL DRIVE

1

F49357

PLATE - bearing

1шт.

2

F9417

FLANGE

- bearing

4шт.

3

F90306

BEARING ASSY

BEARING

2шт.

4

O4233CS

COLLAR

1шт.

5

F49375

CHAIN - reel drive (See chain page) (#8331750 and after)

1шт.

5

F49228

CHAIN - reel drive (See chain page) (Before #8331750)

1шт.

6

F49358

SPROCKET - reel drive (56 T)

1шт.

7

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

4шт.

8

F49359

SHAFT

1шт.

9

F49361

ARM - idler mount

1шт.

10

F49362

BUSHING

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

195-33

WASHER,1/2"

- flat SAE 1/2"

1шт.

12

F49365

SPROCKET - reel drive (14T)

1шт.

13

F49304

CHAIN - reel drive (See chain page) (#8331750 and after)

1шт.

13

F49227

CHAIN - reel drive (See chain page) (Before #8331750)

1шт.

14

F49363

SPROCKET - idler

1шт.

15

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

F49364

SPRING - idler tension

1шт.

17

F49360

BRACKET - shield

1шт.

18

F49305

SHIELD - reel drive primary

1шт.

19

F49290

SPROCKET - reel drive, driven (28T)

1шт.

20

F49292

SHAFT - reel drive, 10 ft.

1шт.

20

F49293

SHAFT - reel drive, 12 ft.

1шт.

20

F49294

SHAFT - reel drive, 14 ft.

1шт.

20

F49295

SHAFT - reel drive, 16 ft.

1шт.

20

F49296

SHAFT - reel drive, 18 ft.

1шт.

20

F49297

SHAFT - reel drive, 20 ft.

1шт.

21

F49283

TUBE - extension, 10 ft.

1шт.

21

F49284

TUBE - extension, 12 ft.

1шт.

21

F49285

TUBE - extension, 14 ft.

1шт.

21

F49286

TUBE - extension, 16 ft.

1шт.

21

F49287

TUBE - extension, 18 ft.

1шт.

21

F49288

TUBE - extension, 20 ft.

1шт.

22

F49289

BUSHING - extension tube

2шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4"-28 strt.

2шт.

24

F49299

ARM - belt tension

1шт.

25

F49298

BRACKET - support

1шт.

26

F49301

HUB - pulley

1шт.

27

F49217

FLANGE

- pulley

2шт.

28

F49218

SHIM - pulley

6шт.

29

F49300

PULLEY - flat idler

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

195-33

WASHER,1/2"

- flat SAE 1/2"

1шт.
