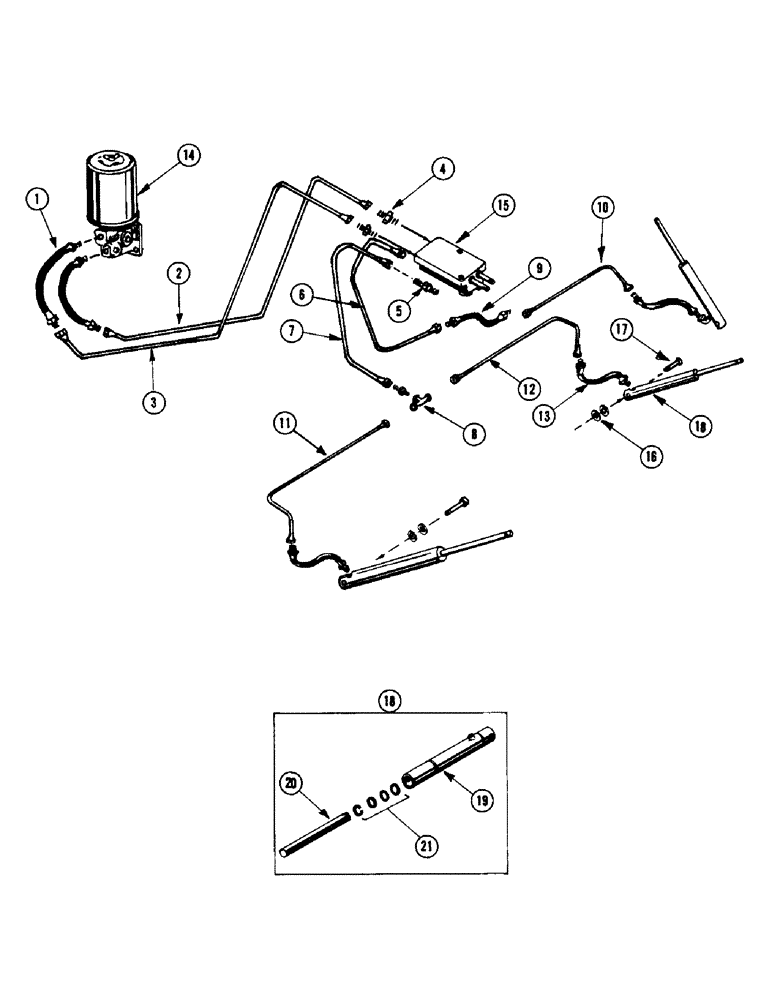

Запчасти Case IH 855 (22) - HYDRAULIC SYSTEM

1

F49483

HOSE - 10"

2шт.

2

F49481

LINE - hydraulic, 38-1/2" (No. 8331750 and after)

1шт.

2

F49210

LINE - hydraulic (Before #8331750)

1шт.

3

F49482

LINE - hydraulic, 39-7/8" (No. 8331750 and after)

1шт.

3

F49211

LINE - hydraullic (Before #8331750)

1шт.

4

F49439

FITTING - connector, male (No. 8331750 and after)

2шт.

4

F49182

FITTING - connector, male (Before #8331750)

2шт.

5

F49440

FITTING - connector, male (No. 8331750 and after)

2шт.

5

F49209

FITTING - connector, male (Before #8331750)

2шт.

6

F49484

LINE - hydraulic, 42"

1шт.

7

F49414

LINE - hydraulic, 22-1/2"

1шт.

8

F49415

FITTING - union tee

1шт.

9

F49322

HOSE - hydraulic, 18"

1шт.

10

F49589

LINE - hydraulic, reel lift - 10 ft. hdr.

1шт.

10

F49275

LINE - hydraulic, reel lift - 12 ft. hdr.

1шт.

10

F49276

LINE - hydraulic, reel lift - 14 ft. hdr.

1шт.

10

F49277

LINE - hydraulic, reel lift - 16 ft. hdr.

1шт.

10

F49278

LINE - hydraulic, reel lift - 18 ft. hdr.

1шт.

10

F49279

LINE - hydraulic, reel lift - 20 ft. hdr.

1шт.

11

F49413

LINE - hydraulic, R.H. header lift

1шт.

12

F49412

LINE - hydraulic, L.H. header lift

1шт.

13

F49274

HOSE - hydraulic, 18"

3шт.

14

F49385

PUMP - hydraulic

1шт.

15

F49438

VALVE - hyd. control (No. 8331750 and after)

1шт.

15

F49181

VALVE - hyd. control (Before #8331750)

1шт.

16

F59371

SPACER - header cylinder

4шт.

17

F59566

PIN - clevis

2шт.

18

F59802

CYLINDER - hydraulic

3шт.

19

F59825

BARREL - piston F59802 HYDRAULIC CYLINDER

1шт.

20

F59826

ROD - piston F59802 HYDRAULIC CYLINDER

1шт.

21

F59803

KIT - repair F59802 HYDRAULIC CYLINDER

1шт.

NSS

NOT SOLD SEPARAT

SEAL - dust F59802 HYDRAULIC CYLINDER

1шт.

NSS

NOT SOLD SEPARAT

WASHER - back up F59802 HYDRAULIC CYLINDER

1шт.

NSS

NOT SOLD SEPARAT

"O" RING F59802 HYDRAULIC CYLINDER

1шт.

NSS

NOT SOLD SEPARAT

RING - lock F59802 HYDRAULIC CYLINDER

1шт.
