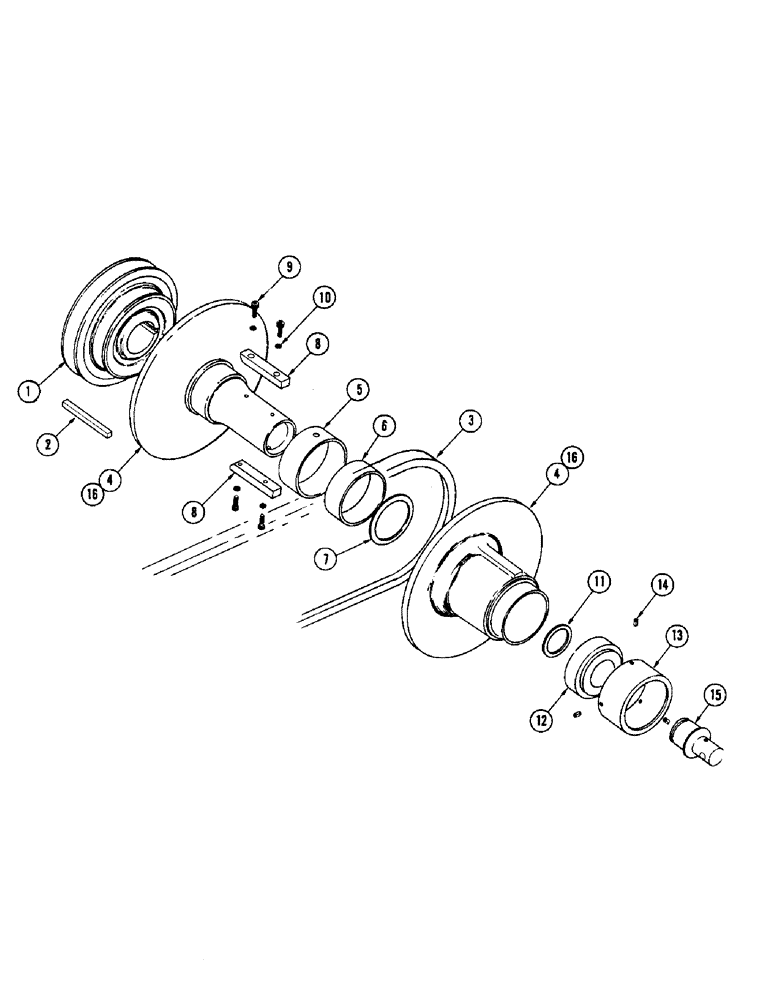

Запчасти Case IH 855 (20) - ENGINE VARI-PULLEY, BEFORE SERIAL NUMBER 8360701

1

F49402

PULLEY - pump and header drive, 2 groove (VH4D engine)

1шт.

1

F49391

PULLEY - pump and header drive, 2 groove (VG4D engine)

1шт.

83-68

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - 3/8" x 1/2" N.C. cup pt. hex. socket set

1шт.

2

F49390

KEY - 3/8" x 3/8" x 4-1/2"

1шт.

3

F49370

BELT

Vari-Speed

1шт.

F49403

VARI-PULLEY ASSEMBLY - (VH4D engine)

1шт.

4

F49642

VARI-PULLEY - 2 halves (VH4D engine)

1шт.

SCREW - set 3/8"-16 x 3/8" nylok

1шт.

83-64

SET SCREW,Hex Soc, 3/8"-16 x 1/4"

SCREW - set 3/8"-16 x 1/4" cup pt.

1шт.

5

F49631

COLLAR - idler (With bushings)

1шт.

6

F49632

BUSHING

1шт.

7

F49637

SNAP RING

1шт.

8

F49633

KEY

2шт.

9

165-21

SCREW,#10 - 24 x 1/2"

- #10 - 24 x 1-2" socket hd.

4шт.

10

F49638

LOCKWASHER - 3/16" Int. Shakeproof

4шт.

11

D26534

SNAP RING

1шт.

12

F62198

BEARING

- thrust

1шт.

13

F49634

COLLAR - thrust bearing

1шт.

14

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

3шт.

15

F49636

SHAFT - thrust

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4"-28 strt.

1шт.

F49392

VARI-PULLEY ASSEMBLY - (VG4D engine)

1шт.

16

F49641

VARI-PULLEY - 2 halves (VG4D engine) Also contains reference #5, 6, 7, 8, 9, 10, 11, 12, 13, 14 and 15

1шт.
