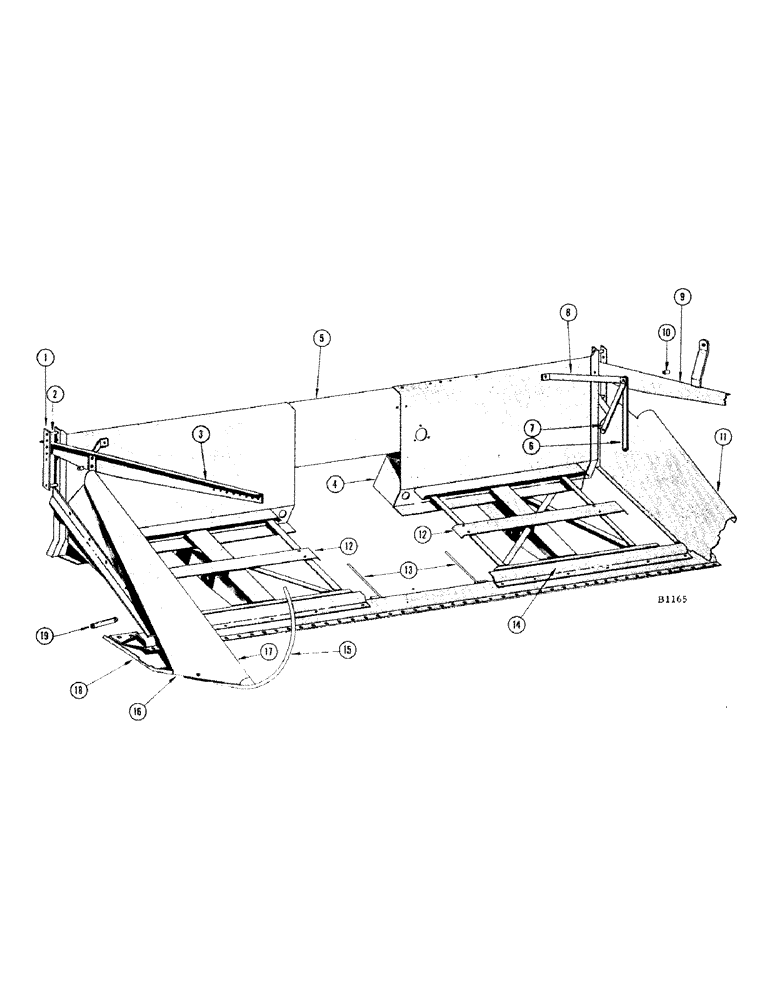

Запчасти Case IH 840 (10) - HEADER PLATFORM

1

FH122812

GUIDE

2шт.

2

P2456S

SPACER

2шт.

3

FH126649

ARM - L.H., reel support

1шт.

4

FH126912

SHIELD - L.H.

1шт.

FH126920

SHIELD - R.H.

1шт.

5

FH126219

PLATFORM - header (12 ft.)

1шт.

FH126227

PLATFORM - header (14 ft.)

1шт.

6

FH127423

SUPPORT - reel arm

2шт.

7

FH177614

BRACE - support

2шт.

8

FH117606

BRACE - diagonal

2шт.

9

FH126631

ARM - L.H., reel support

1шт.

10

O4361AB

SPACER

2шт.

11

FH126847

DIVIDER - left

1шт.

12

FH119461

SLIDE - center (12 ft. special)

2шт.

FH119875

SLIDE - center (14 ft. special)

2шт.

FH116574

SLIDE - center (16 ft. special)

2шт.

13

FH115857

ROD - windrow forming (Special)

2шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

4шт.

14

FH129130

SHIELD - canvas (12 ft. special)

2шт.

FH129122

SHIELD - canvas (14 ft. special)

2шт.

FH129114

SHIELD - canvas (16 ft. special)

2шт.

15

FH129494

POINT - divider

2шт.

16

FH123687

SHOE - right divider

1шт.

FH123679

SHOE - left divider

1шт.

17

FH126854

DIVIDER - right

1шт.

18

FH125138

SKID - shoe (Special)

2шт.

3/8" x 5-1/2" N.C.hex. bolt w/hex. nut and lockwasher

2шт.

3/8" x 6" N.C. hex. bolt w/hex. nut and lockwasher

2шт.

19

FH125179

LINK - adjusting (Special)

4шт.

3/8" x 1-3/4" carr. bolt w/hex. nut and lockwasher

4шт.

7/16" x 2-1/4" carr. bolt w/hex. nut and lockwasher

4шт.
