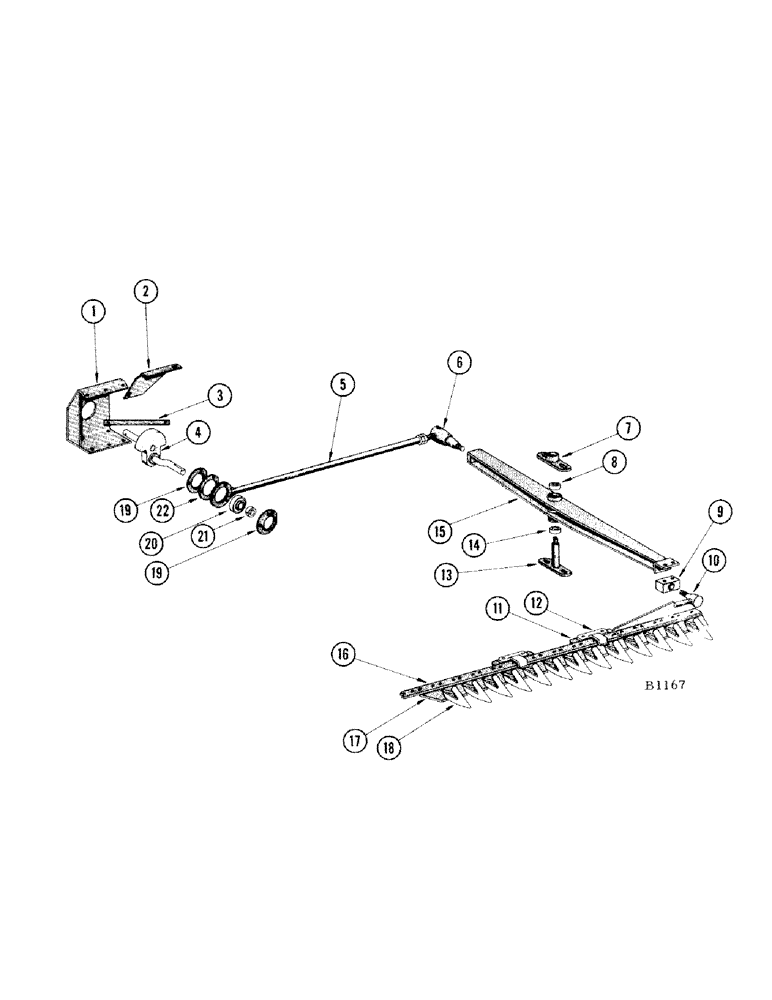

Запчасти Case IH 840 (04[A]) - SICKLE AND SICKLE DRIVE

1

FH126995

BRACKET - Pitman crank drive

1шт.

2

FH126896

SHIELD - Pitman crank

1шт.

3

FH127027

BRACE - Pitman crank mounting shield

1шт.

4

FH126953

CRANK - Pitman

1шт.

5

FH130351

PITMAN - sickle (12 ft. header)

1шт.

FH130369

PITMAN - sickle (14 ft. header)

1шт.

FH132548

PITMAN - sickle (16 ft. header)

1шт.

6

FHO41012

END - rod, Pitman

1шт.

7

FH123224

PLATE - reinforcement, swaybar

1шт.

8

FHO50112

BEARING

CONE (Timken #07100) swaybar

2шт.

9

FH129213

BLOCK - sickle end, swaybar

1шт.

1/2" - 20 x 1-1/2" wheel hub bolt (No nuts)

2шт.

10

FH128884

HEAD - sickle, with 5/8" N.F. slotted nut

1шт.

5/8" N.F. slotted hex. nut

1шт.

11

FHO48058

PLATE - wear, sickle clip

1шт.

12

FHO48033

CLIP - hold down

1шт.

13

FH123216

PIN

- swaybar

1шт.

7/8" N.F. castle nut

1шт.

14

FHO50104

CUP

(Timken #07196) swaybar

2шт.

15

FH271981

X

SWAYBAR - with (2) FHO50104 cups

1шт.

16

FH130716

SICKLE - complete with head and FHO48231 sections (12 ft. header - standard)

1шт.

FH130724

SICKLE - complete with head and FHO48231 sections (14 ft. header - standard)

1шт.

FH130732

SICKLE - complete with head and FHO48231 sections (16 ft. header - standard)

1шт.

17

FHO48231

SECTION - sickle (Serrated black) Pkg. 25 per box - standard

1шт.

18

FHO48041

GUARD

1шт.

19

O4210CS

FLANGE

2шт.

20

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING (Fafnir #103PPB-2)

1шт.

21

O697CB

X

COLLAR

1шт.

22

FH126805

FLANGE - alignment, for 2419CHA bearing

1шт.
