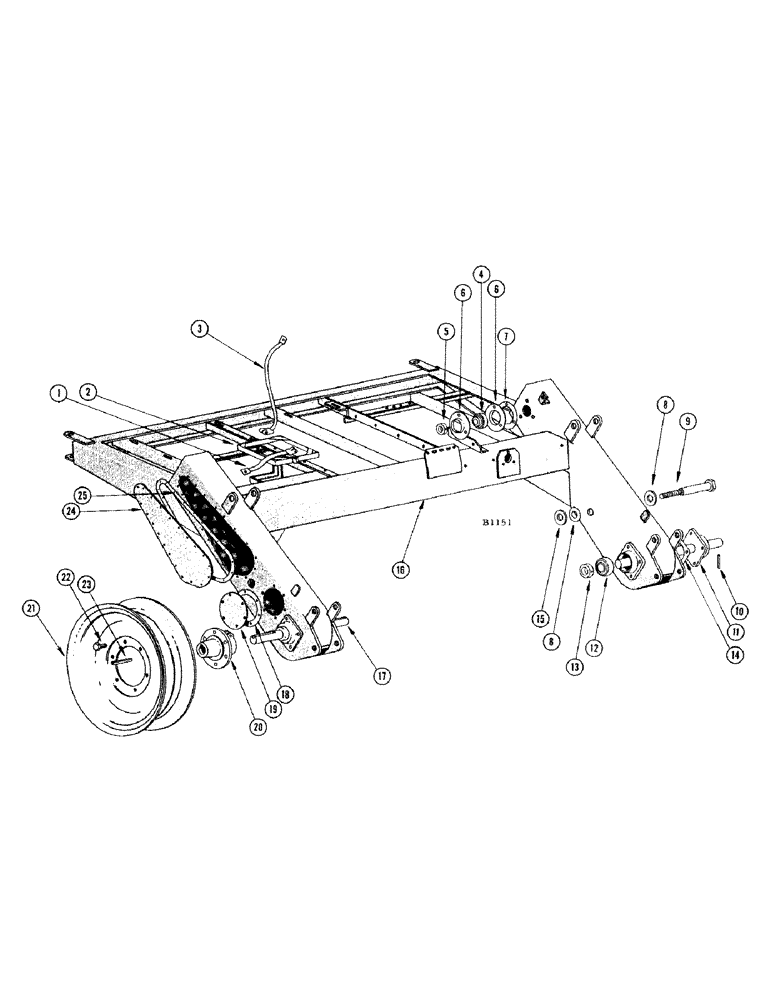

Запчасти Case IH 840 (24) - MAIN FRAME

1

VT2336

X

STRAP - battery ground

1шт.

2

FHO41020

COVER - battery

1шт.

3

O6731AB

CABLE -, Serial Range: battery-switch

1шт.

4

313CBA

BEARING (Fafnir #1103KLLB-3) drive shaft

2шт.

5

O697CB

X

COLLAR

1шт.

6

O650CB

X

FLANGE

4шт.

7

FHO44073

GASKET

2шт.

8

FHO44107

GASKET - jackshaft spindle

4шт.

9

FH116053

SPINDLE - wheel drive jackshaft

2шт.

1" plain washer

2шт.

10

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

2шт.

11

FHO50237

FLANGE - wheel hub

4шт.

12

FHO50401

BEARING, BALL

BEARING (N.D. #Z99AE112)

1шт.

13

T60856

COLLAR

1шт.

14

FHO44081

GASKET - hub bearing

4шт.

15

FH158436

SPACER

2шт.

16

FH129668

FRAME - main

1шт.

3/4" ctsk. pipe plug

4шт.

17

FH130054

AXLE - wheel

2шт.

18

FHO44131

GASKET - lower

2шт.

19

FH116152

PLATE - lower cover

2шт.

20

F2427

HUB - drive wheel

2шт.

21

O9930HT

WHEEL - drive (For 7:50 - 18 traction type tire)

2шт.

22

O4236AB

X

BOLT - wheel

12шт.

23

FHO61259

KEY

2шт.

24

FH116434

PLATE - cover

2шт.

25

FHO44065

GASKET - upper, cover plate

2шт.
