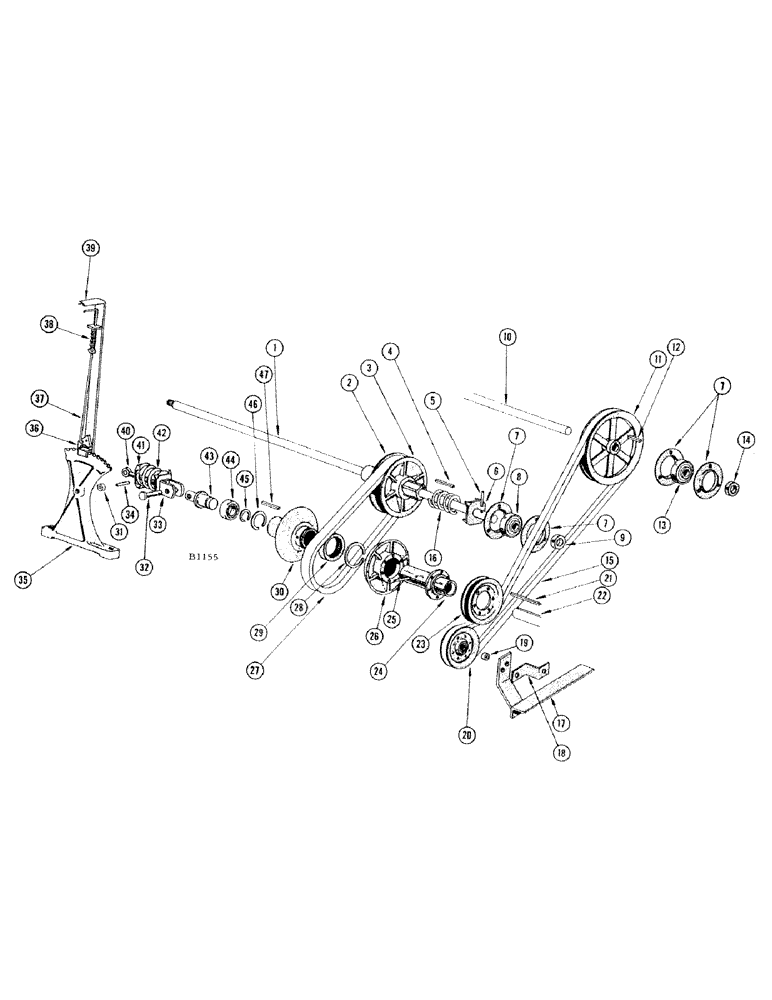

Запчасти Case IH 840 (20) - FORWARD AND REVERSE DRIVE / VARIABLE DRIVE

1

FH128181

SHAFT - forward drive

1шт.

1-1/8" N.C. hex. nut

1шт.

2

F2449

SHEAVE - stationary half

1шт.

3

F2450

SHEAVE - floating half

1шт.

4

FH156695

KEY

1шт.

5

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

2шт.

6

FH129460

PLATE

- spring retainer

1шт.

7

O650CB

X

FLANGE

6шт.

8

2481CSA

BEARING (Fafnir #1102KLLB)

1шт.

9

O3203CK

COLLAR

1шт.

10

FH129734

SHAFT - reverse

1шт.

11

F2431

PULLEY - reverse drive

1шт.

12

O2227CH

KEY

1шт.

13

313CBA

BEARING (Fafnir #1103KLLB-3)

2шт.

14

O697CB

X

COLLAR

1шт.

15

FHO56333

BELT

Reverse Drive

1шт.

16

FHO29314

SPRING

1шт.

17

FH129858

BRACKET - pulley

1шт.

18

FH130344

BRACE - pulley

1шт.

19

FH159749

BUSHING

1шт.

20

FHO53538

PULLEY

- reverse idler

1шт.

21

W9286S

KEY VARIABLE DRIVE

1шт.

22

A49016

CRANKSHAFT VARIABLE DRIVE

1шт.

23

F2451

PULLEY - reverse drive VARIABLE DRIVE

1шт.

24

FH128470

HUB VARIABLE DRIVE

1шт.

25

138-105

LOCK PIN,3/16" x 2 1/4", Slotted

PIN, LOCK, , Variable drive 3/16" x 2 1/4", Slotted

1шт.

26

F2447

SHEAVE - stationary half VARIABLE DRIVE

1шт.

27

FHO55970

V-BELT

Variable Drive

1шт.

28

FHO52027

RING, SNAP

SNAP RING VARIABLE DRIVE

1шт.

29

FHO50229

BEARING, ROLLER

BEARING (Torrington #B4416) variable drive belt VARIABLE DRIVE

1шт.

30

F2448

SHEAVE - floating half VARIABLE DRIVE

1шт.

31

FHO45013

SPACER VARIABLE DRIVE

1шт.

32

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, , variable drive 3/8" x 1 3/4", Slotted

1шт.

33

F94562

YOKE VARIABLE DRIVE

1шт.

34

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, , variable drive 5/16" x 2", Slotted

1шт.

35

F2453

QUADRANT VARIABLE DRIVE

1шт.

36

FH113738

LATCH VARIABLE DRIVE

1шт.

37

FH125708

ROD - latch VARIABLE DRIVE

1шт.

38

FHO58073

SPRING VARIALBE DRIVE

1шт.

39

FH129924

LEVER VARIABLE DRIVE

1шт.

40

F59076

LINK VARIABLE DRIVE

1шт.

41

F59073

RETAINER - spring VARIABLE DRIVE

1шт.

42

O1549HT1

SPRING VARIABLE DRIVE

1шт.

43

FHO45138

SPINDLE - variable drive

1шт.

44

O3163CS

X

BEARING (N.D. #Z99506P-LYIC) spindle VARIABLE DRIVE

1шт.

45

FHO52019

SNAP RING VARIABLE DRIVE

1шт.

46

FHO52035

RING, SNAP

SNAP RING VARIABLE DRIVE

1шт.

47

FH129601

KEY VARIABLE DRIVE

2шт.
