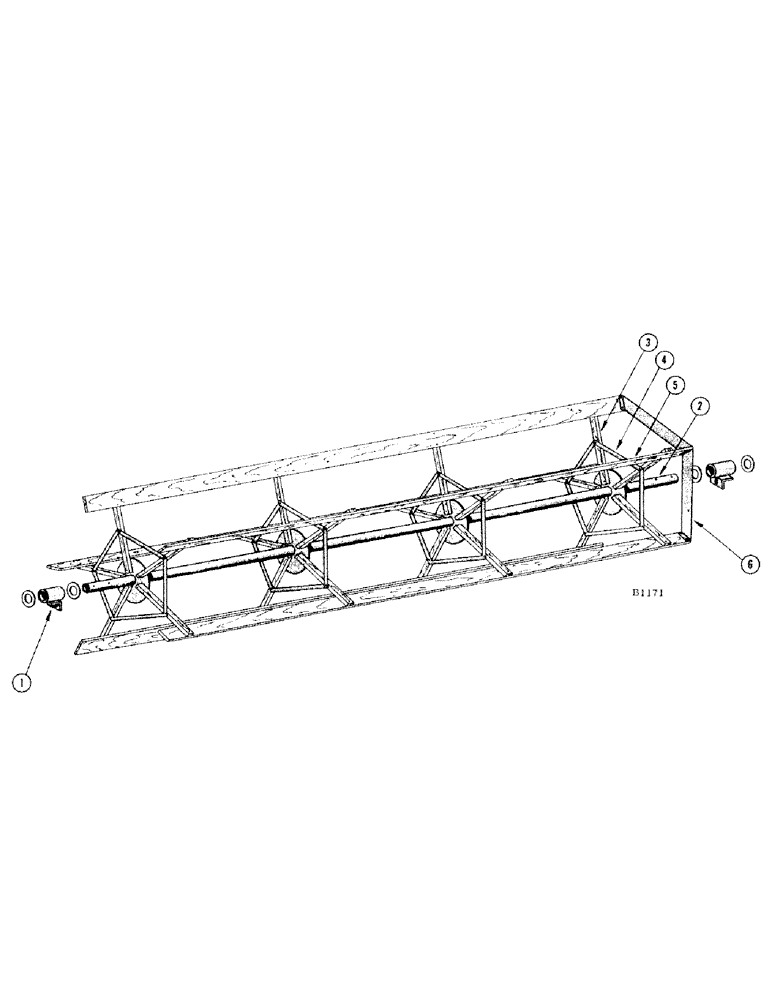

Запчасти Case IH 840 (02) - REEL

1

FH117721

BEARING (12'-2; 14'-2 16'-2)

1шт.

2

FH128405

SHAFT (12 ft.)

1шт.

KEY - #D Woodruff (126-33)

1шт.

PIN - cotter 1/4" x 2" (132-154)

4шт.

WASHER - 1" pl. (195-53)

4шт.

FH128397

SHAFT (14 ft.)

1шт.

KEY - #D Woodruff (126-33)

1шт.

PIN - cotter 1/4" x 2" (132-154)

4шт.

WASHER - 1" pl. (195-53)

4шт.

FH128389

SHAFT (16 ft.)

1шт.

KEY - #D Woodruff (126-33)

1шт.

PIN - cotter 1/2" x 2" (132-154)

4шт.

WASHER - 1" pl. (195-53)

4шт.

3

FHO29231

ARM (12'-20; 14'-20' 16'-25)

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (11-420) nut (25-104) L.W. (92-4)

1шт.

BOLT - 1/4" x 1-3/4" rhd. sq. nk. (11-428) nut (25-104) L.W. (92-4)

1шт.

4

FH108209

STRAP - brace (12'-20; 14'-20; 16'-25)

1шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104) L.W. (92-4)

1шт.

5

FH119172

BAT (12 ft. reel)

5шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-416) nut (25-104) L.W. (92-4)

40шт.

FH119180

BAT (14 ft. reel)

5шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-416) nut (25-104) L.W. (92-4)

40шт.

FH117960

BAT (16 ft. reel)

5шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-416) nut (24-104) L.W. (92-4)

50шт.

6

FH128678

SHIELD - L.H. end (Special) (12'-5; 14'-5; 16'-5)

1шт.

SCREW - 1/4" x 3/4" rhd. mach. (75-412) nut (25-104) L.W. (92-4)

2шт.

FH128686

SHIELD - R.H. end (Special) (12'-5; 14'-5; 16'-5)

1шт.

SCREW - 1/4" x 3/4" rhd. mach. (75-412) nut (25-104) L.W. (92-4)

2шт.
