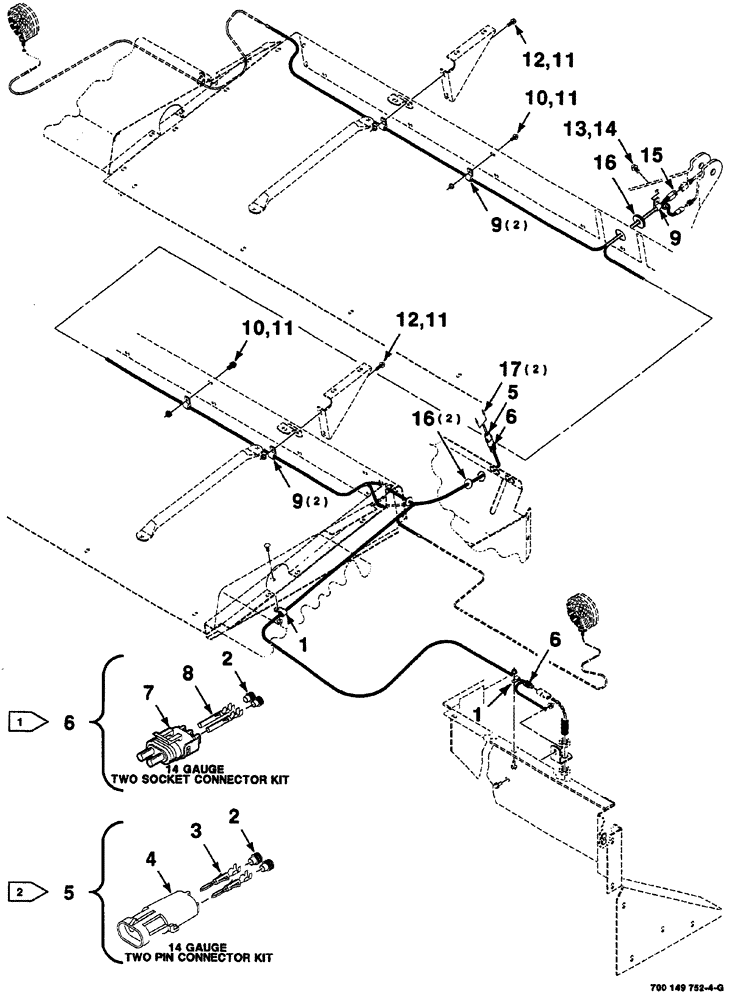

Запчасти Case IH 725 (04-002) - FLASHER LIGHT HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.

2

225125C1

SEAL

SEAL, 14 gauge

2шт.

Part of Harness Repair Kit Ref. 5 P/N 700718588

1шт.

Part of Harness Repair Kit Ref. 6 P/N 700718590

1шт.

3

700718530

TERMINAL CONNECTOR

PIN male, 14 gauge

1шт.

Part of Harness Repair Kit Ref. 5 P/N 700718588

1шт.

4

700706399

ELEC CONNECTOR,14 - 20 SAE

shroud, 2 pin, male

1шт.

Part of Harness Repair Kit Ref. 5 P/N 700718588

1шт.

5

700718588

KIT

repair, harness, 2 pin, male, 14 gauge, Includes: Ref. 4, 3 and 2

1шт.

6

700718590

KIT

repair, harness, 2 socket, female, 14 gauge, Includes: Ref. 7, 8 and 2

2шт.

7

245482C1

ELEC CONNECTOR,2 Pin

tower, 2 socket, female

1шт.

Part of Harness Repair Kit Ref. 6 P/N 700718590

1шт.

8

700718576

TERMINAL CONNECTOR

SOCKET female, 14 gauge

1шт.

Part of Harness Repair Kit Ref. 6 P/N 700718590

1шт.

9

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

5шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

2шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

14

231-5146

FLANGE NUT,3/8"-16

1шт.

15

700717707

HARNESS

wire

1шт.

16

248-1151

GROMMET,7/8" ID x 1 1/4" Groove Dia

3шт.

17

700714829

PLUG

cavity

2шт.
